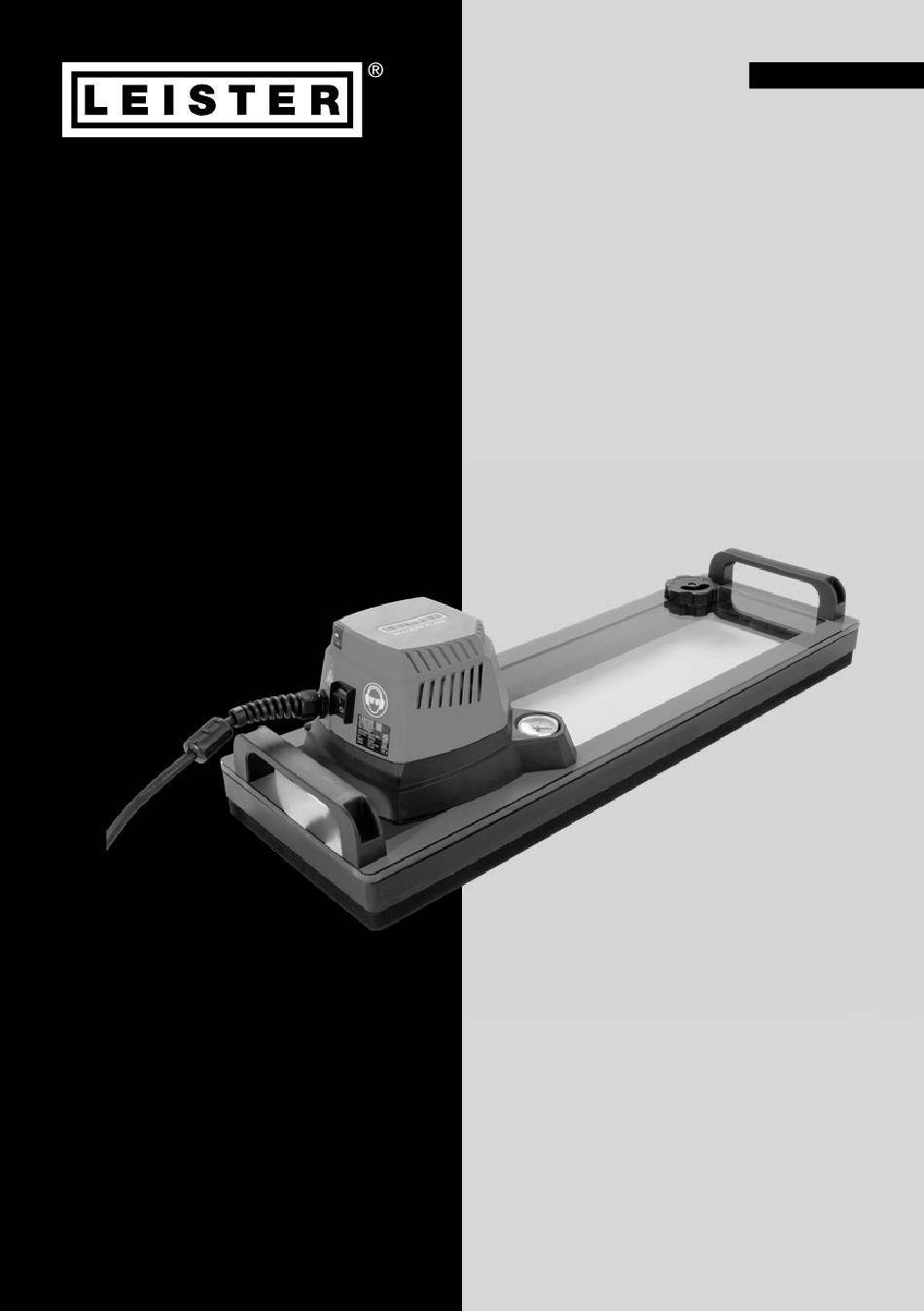

- Page 1 English VACUUM PLATE 300 Leister Technologies AG Galileo-Strasse 10 6056 Kaegiswil/Switzerland Tel. +41 41 662 74 74 +41 41 662 74 16 www.leister.com sales@leister.com...
-
Page 2: Table Of Contents
6.3. Test with VACUUM PLATE 7. Quick guide VACUUM PLATE 300 7.1. Switch on device (left column) 7.2. Switch off device (right column) 8. Frequently asked questions, causes and actions VACUUM PLATE 300 9. Maintenance 10. Declaration of Conformity 11. Disposal... -
Page 3: Important Safety Instructions
Please always store these operating instructions with the device. VACUUM PLATE 300 testing device You can find more information about the VACUUM PLATE 300 at www.leister.com 1. Important safety instructions Warning Dangerous voltage, danger to life from electric shock: There are live components inside the device. -
Page 4: Application
Use only original Leister spare parts and accessories; otherwise, any warranty or guarantee claims will be invali- dated. 2.2 Non-intended use Any other use or any use beyond the type of use described for the VACUUM PLATE 300 is deemed non-intended use. Test operation is not permitted in case of condensation (e.g. rain). -
Page 5: Technical Data
3. Technical data VACUUM PLATE 300 VACUUM PLATE 300 220 – 240 V 120 V Voltage Power 1100 1100 Frequency 50/60 °C -10 – 60 Ambient temperature °F 14 – 140 (dB) 84.7 (K = 3 dB) Noise level LA (dB) 95.7 (K = 3 dB) -
Page 6: Transport
4. Transport Warning Do not use the carrying handle (8) on the device for transporting with a crane. Note When transporting the device, store and secure it in a way that prevents any mechanical damage. The device must always be stored on a flat surface, otherwise the sealing lip (7) can become permanently deformed. -
Page 7: Your Vacuum Plate 300
The model and serial number are indicated on your device's name plate (10). Please transfer this information to your instruction manual. In the event of any inquiries to our representatives or authorized Leister Service Centers, please always refer to this information. -
Page 8: Overview Of Device Parts
5.3. Overview of device parts 1. Mains connection line 8. Carrying handle 2. Main switch 9. Pressure setting valve (Vari-Flow valve) 3. Vacuum blower 10. Type plate with model designation and series 4. Filter plate marking 5. Pressure gauge 11. Cooling openings 6. -
Page 9: Operation Of Your Vacuum Plate 300
6. Operation of your VACUUM PLATE 300 6.1. Work environment and safety Warning Dangerous voltage, danger to life from electric shock: If the housing is damaged, the power cord must be disconnected from the power source immedi- ately. Keep the device away from moisture and wet conditions. Before starting, check the power cord, the plug and the extension cable for electrical and mechanical damage. - Page 10 Caution Risk of burns The device may only be operated at intervals. If the on duration is too long (>2min), the temperature on the motor housing can cause burns. Always allow the device to cool down. The device can only be operated using the handles and switches provided.
-
Page 11: Preparation And Operation
6.2. Preparation and operation • Before each start, check the VACUUM PLATE for faults and damage, e.g. cracks, splits or scratches; a defec- tive VACUUM PLATE can implode • Visually inspect that the filter plate (4) is present and whether it is clean. •... -
Page 12: Quick Guide Vacuum Plate 300
7. Quick guide VACUUM PLATE 300 7.1. Switch on device (left column) VACUUM PLATE 300 Quick Guide 1. Connect power supply cord (1) to the voltage source. 2. Open the pressure setting valve (Vari-Flow Valve) (9) (turn counter-clockwise to the stop), 3. -
Page 13: Frequently Asked Questions, Causes And Actions Vacuum Plate 300
8. Frequently asked questions, causes and actions VACUUM PLATE 300 Do not allow test pressure to build up • Check the flatness of the membrane while pressing the VACUUM PLATE. The VACUUM PLATE can compensate an unevenness of approx. 10 mm via the sealing lip (7). There is a risk of leakage if there is a higher level of unevenness. -
Page 14: Maintenance
• Repairs must only be carried out by authorized Leister service centers. • Clean cloths must be used to clean the device. • Leister Service Centers guarantee a professional and reliable repair service within 24 hours with original spare parts in accordance with circuit diagrams and spare parts lists. -
Page 15: Declaration Of Conformity
10. Declaration of Conformity EU Declaration of Conformity Leister Technologies AG, Galileo-Strasse 10, 6056 Kaegiswil, Switzerland confirms that this product in the model made available for purchase, fulfills the requirements of the following EU directives. Directives: 2006/42/EG, 2014/30/EU, 2011/65/EU Harmonized... - Page 16 © Copyright by Leister Warranty • The guarantee or warranty rights granted for this device by the direct distribution partner/salesperson apply from the date of purchase. In the event of a guarantee or warranty claim (verification by invoice or delivery note), manufacturing or processing errors will be rectified by the sales partner through replacement delivery or repair.
