- Page 1 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030...
- Page 2 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 Affix upper post to lower post by positioning female end centrally over male fitting (C), and rotate until assembly drops into position, continue rotating clockwise through 90º to secure (D).

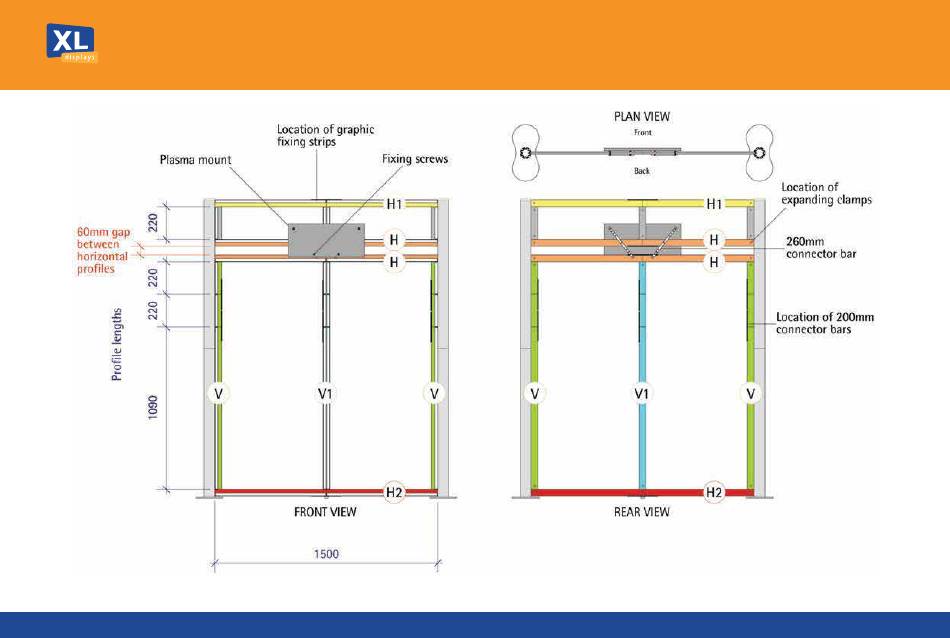

- Page 3 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 4.2.1 4.2.2 4.2.3 To join the horizontal (H, H1, and H2) and vertical (V and V1) frame profiles: 4.1) Loosen grub screws and slide connector bars halfway out of the channel.
- Page 4 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 5.2i 5.2ii 5.2i) Centre vertical ‘V1’ differs due to the presence of twin graphic fixing strips. 5.2ii) Bottom horizontal ‘H2’ differs with the introduction of the adjustable thumb screw foot in the centre.
- Page 5 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 Connect two vertical (V) 1531mm assembly rails at 90º to each end of the 1500mm horizontal rail (H2) ensuring that the graphic fixing strip is outermost and the verticals are flush with the end of the 1500mm rail.
- Page 6 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 Connect second horizontal 1500mm rail assembly (H), using the expanding clamps, to top of assembled verticals (V, V1 and V) ensuring that the graphic fixing strip is at the bottom. Tighten grub screws on vertical rails to secure.
- Page 7 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 For the top section of the framework, connect the two 220mm profiles, with expanding clamps at both ends and the single fixing strip, at 90º flush to each end of the third 1500mm horizontal rail (H). Ensure that the graphic fixing strip on the verticals are outermost and the graphic...
- Page 8 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 Slot final top horizontal 1500mm rail assembly (H1) to the 220mm verticals, ensuring that the graphic fixing strip is at the top. Tighten grub screws on verticals to secure framework. This completes the top section...
- Page 9 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 10.1 10.2 Slot the bottom section framework into the channel of the assembled post at 90º to the base plate. Ensure framework is equidistant from the base plate, adjustable foot rests on the ground, and graphic fixing strip is adjacent to the floor.
- Page 10 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 11.1 11.2 Slot open end of framework into other assembled post, at 90º to the base plate. Ensure bottom section is equidistant from the floor at both ends and the adjustable foot rests on the floor.
- Page 11 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 12.1 12.2 Affix the top section framework into the same channel as the bottom section ensuring graphic fixing strips are all on the same side of the system. Leave a gap of 60mm in between bottom and top framework assemblies and tighten all grub screws in horizontals (H and H1) to secure to post.
- Page 12 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 Starting from the top left-hand side of the system, unroll the first graphic panel and align the magnetic tape with steel fixing strips of the framework. Work across the frame, taking...
- Page 13 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 14.1 14.2 14.3 Remove two inner screws from LED/LCD mounting bracket and loosen two outer screws so there is sufficient gap between connector bars to slide onto framework profile.
- Page 14 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 15.1 15.2 15.3 Position and lower outer screws centrally over upper horizontal rail in aperture.
- Page 15 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 16.1 16.2 16.3 Raise screen mount so bottom holes are above the lower horizontal rail in aperture. Re-insert 2 screws through lower/inner mount holes (4 openings from either end of the screen mount) and clearance holes in 2 off 260mm connector bars adjacent to mount.
- Page 16 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 17.1 17.2 Align other 2 off 260mm connector bars, located behind horizontal rails, and screw into threaded holes. Ensure bottom screws rest on lower horizontal rail, mount is in centre of aperture, and tighten all 4 screws to secure assembly.
- Page 17 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 With the elongated holes on the Position screen centrally mounting arms uppermost, align arms above bracket and lower centrally with 4 off fixing points on rear until top of both mounting of screen equidistant from the top.
- Page 18 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 20.1 20.2 Slide locking bar between the mounting arms and the plasma mounting bracket if desired. For extra security, there is a facility to add a padlock to the locking bar.
- Page 19 Centro Multimedia Kit 2 Assembly Instructions 01733 511 030 To complete Centro Mutimedia Kit 2 display, please affix podium table to the front of one of the posts.
