Centro Slatwall

Assembly Instructions

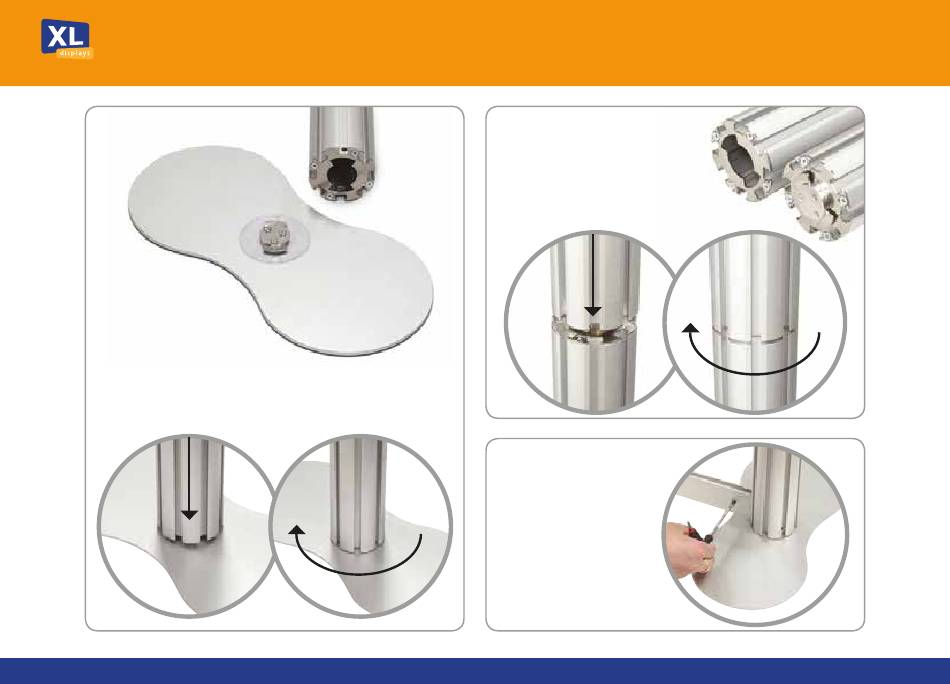

Place base plate on the ﬂoor, position lower post

centrally over male ﬁtting of base plate (A), and rotate

until assembly drops into position, continue rotating

clockwise through 90º to secure (B).

Afﬁx upper post to lower post by

positioning and rotate until assembly drops

into position, female end centrally over

male ﬁtting (C), continue rotating

clockwise through 90º to secure (D).

Slot clamps of 750mm

proﬁle into post channels

and tighten grub screws

with hex key supplied to

secure.
