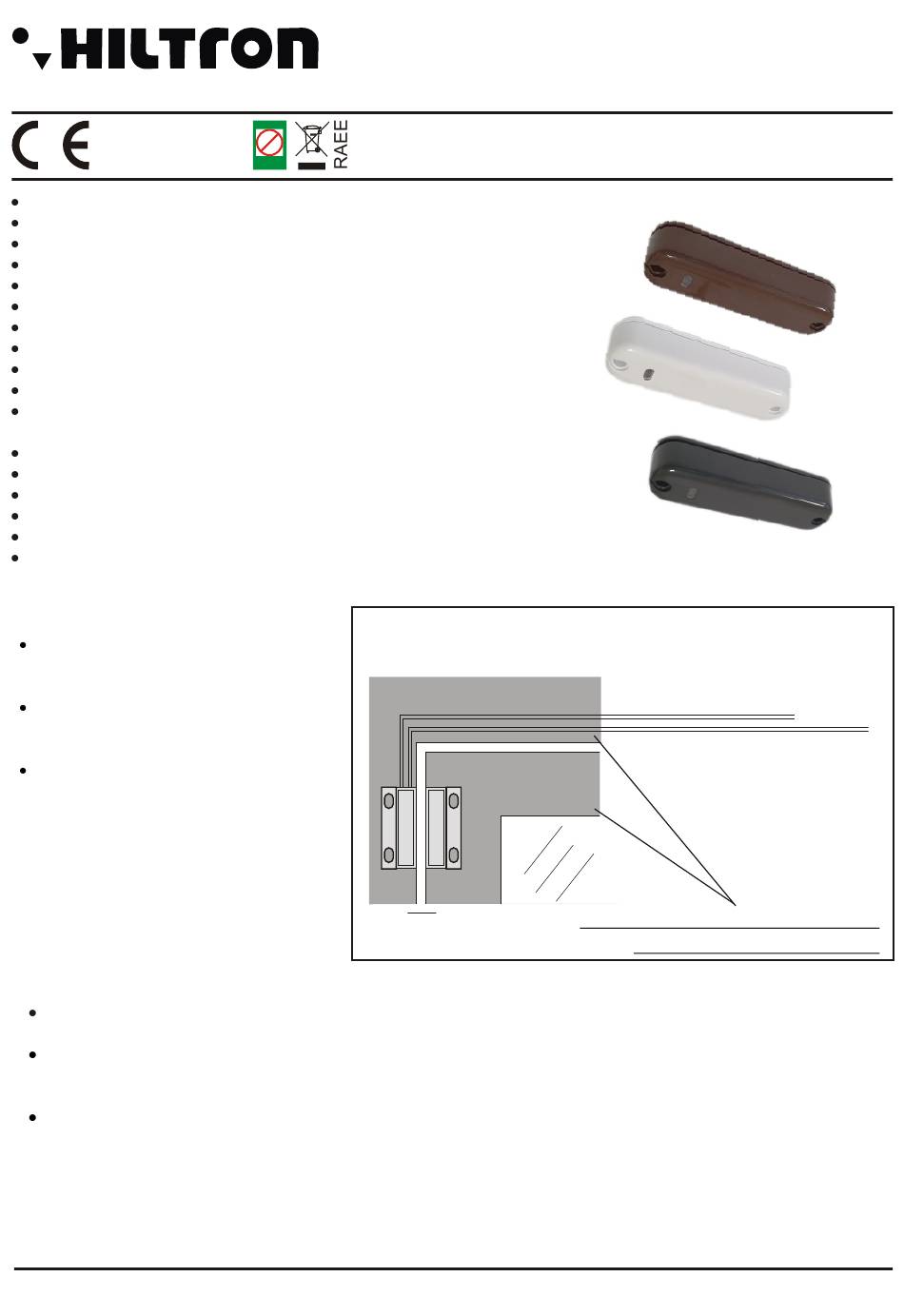

Hiltron security XM Series User Manual

security
Made in Italy
BT2014/35/UE
EMC2014/30/UE
Antishock sensor with sensitivity adjustment
Settaggi effettuabili direttamente dalla centrale
Protection tamper anti-opening
Low battery warning with LED
Supply: 2 AAA batteries (mini-stylus)
Radio system bidirectional
Signaling LED alarm
Maximum absorption 35mA
Signal coverage area: about 100mt.
Life battery: about 1 anno
Work frequency 433,92Mhz multi-chamnnel
(8 channels) bidirectional
Operating temperature 0°C ÷ +50°C
IP protection degree IP40
Degree of security 1
Environmental class 2
Dimensions (LxAxP) 100x21x31mm
Compliant with the standard CEI EN 50131-1

INSTALLATION

Secure the sensor base with the
two supplied screws or using a
double-sided adhesive holder.o.
The internal magnetic contact is
located on the side near the
tamper button.
Mount the magnet
(XMR series magnets only) at a
maximum distance of about
15mm.To connect magnetic
contacts or other sensors to the IN
input on the terminal block or to
the TAMPER input, do not use
excessively long cables (no more
than 50 cm).
To enable the Tamper input on the terminal board, it is necessary to cut the jumper JP1 located near
the fixing screw.
Insert two AAA batteries (ministyle) respecting the indicated polarity: when switched on, the three
LEDs emit two flashes, followed by a flash of the green LED which indicates that the code is being
sent to the control unit.
Close the XMR200S using the supplied screw.
NOTE: The use of wireless devices is strongly influenced by external factors, such as radio links
and other existing wireless devices. The control unit communicates the level of signal
received by each sensor, and where one of these should be low, we recommend a wired
wiring.
Lead free
Pb
RoHS
compliant
INSTALLATION
JAMB
XMR200SM - XMR200SA
Magnetic contact via radio SÉRIE XM
NC protection circuit24h
(short wires)
NC magnetic contact
WINDOW
(Long strands)
Mount on wood onlyaluminum
or non-ferrous materials.
XMR200S
1
