Supvan LP 6245A User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
English
SUPVAN
LP 6245A
User Manual
www.supvan.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP 6245A and is the answer not in the manual?

Questions and answers

Related Manuals for Supvan LP 6245A

Summary of Contents for Supvan LP 6245A

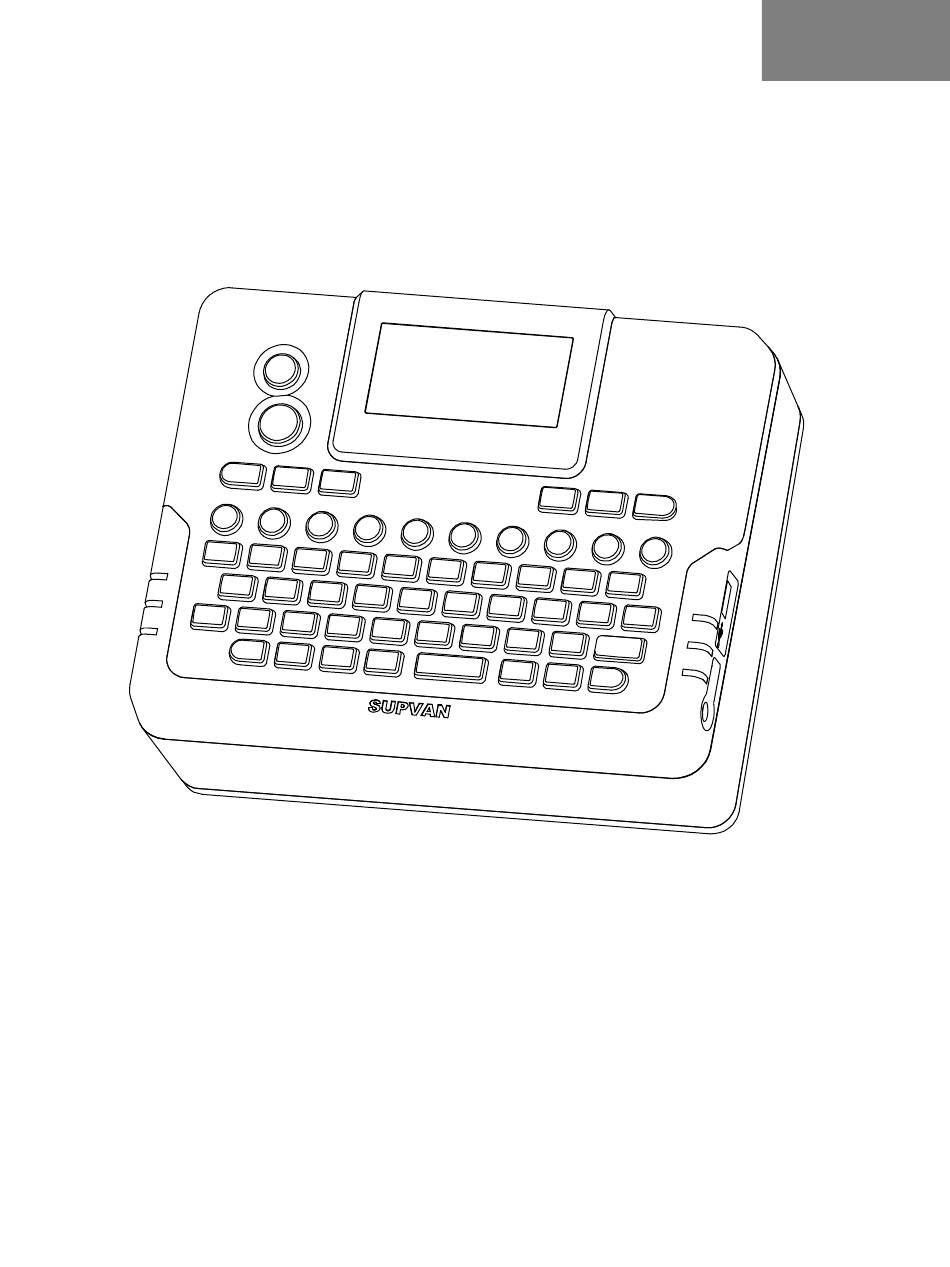

  • Page 1 English SUPVAN LP 6245A User Manual www.supvan.com.cn...

  • Page 2: Table Of Contents

    Declaration………………………………………………………………………1 Warning……………………………………………………………………………2 Precautions………………………………………………………………………3 Contents………………………………………………………………………….4 Specification…………………………………………………………………….5 Power Supply…………………………………………………………………..6 Insert a Tape Cassette………………………………………………………7 LCD Display………………………………………………………………………8 Keyboard………………………………………………………………………….9 Functional Keys………………………………………………………………11 Combination Keys………………………………………………………….12 Create General Labels…………………………………………………….13 Create Flag Labels………………………………………………………….14 Create Wrap Labels………………………………………………………..15 Create Template Labels………………………………………………….16 Label Library…………………………………………………………..17 Connect to computer…………………………………………………….18 Troubleshooting………….…………………………………………………19 Symbol…………………………………………………………………………..25 Template Details…………………………………………………………….36 Library Details………………………………………………………………..37...

  • Page 3: Declaration

    Supvan reserves the right to vary because of the upgrade of the printer.  Supvan will not be responsible for any consequence caused by operations which do not follow the requirements of manual.  If you want to know more about the printer or Supvan, please visit: www.supvan.com...

  • Page 4: Warning

    Warning  Do not touch the AC adapter and printer during a thunder storm.  Do not damage, or place heavy objects on the power cord or plug. Always hold the AC adapter when disconnecting from the power outlet.  Do not use sharp objects to change the batteries. ...

  • Page 5: Precautions

    Precautions  Please use a single power socket. Do not use any multiple socket inserted with multiple devices, this may cause a fire or electric shock. Do not use any power plug with wet hand in case of any electric shock. ...

  • Page 6: Contents

    Contents Label Printer Hard Case* CD-ROM Lithium Battery** Label Tape User Manual Power Adaptor USB Cable *and** are optional.

  • Page 7: Specification

    Specification Printing Method Thermal Transfer Resolution 200dpi Label Width 6mm / 9mm / 12mm / 18mm / 24mm Printing Speed Up to 20mm/s File storage Up to 64 files Max. Height 18 mm Letter Fonts 8 fonts Max. Labels No. Up to 50 labels in 1 file Keyboard QWERTY layout...

  • Page 8: Power Supply

    Power Supply When using six new AA alkaline batteries or lithium batteries, make sure the poles are pointing in the correct directions. To remove the batteries, reverse the installation procedure.

  • Page 9: Insert A Tape Cassette

    Insert a Tape Cassette Open the back cover Tighten the label, then insert the label cassette in position which marked in printer Close the back cover To insert a label cassette, follow the step above. To remove the label cassette, reverse the installation procedure.

  • Page 10: Lcd Display

    LCD Display Page Width Length Size Repeat 2/50 SUPVAN LP6245A Item Introduction Current Label/All Labels；Editing Area/All Editing Area Page in One Label Width Label Width（6mm, 9mm, 12mm, 18mm, 24mm） Length Current label’s length, “A” stands for automatic Size Current line’s character size, “A” stands for automatic...

  • Page 11: Keyboard

    Keyboard 1 2 3 4 Page Width Length Size Repeat Print Options En/Sy Menu Align Orientation Symbol Barcode Sequence Repeat Length Font Frame ， Enter Shift S p a ce General Flag Wrap Library Preview 11 10...
  • Page 12 Keyboard Introduction Stop printing process or ESC the current setting or operation to return to the previous level of menu or the input interface. Turn on/off the printer Short press: print directly Print Long press: copy print; range print; cursor print; Options tempo print Input modes: EA (English uppercase letter), Ea...

  • Page 13: Functional Keys

    Functional Keys Long press 1-0 to realize the functional keys Number Functional Keys Second-level Directory Length Length; Margin; Char space; Lines space Font Font; Size; Width; Bold; Italic Frame Frame; Underline; 690Underline Align Center; Left; Right; Justify Orientation Horizontal; Vertical; Rotate; Mirror Symbol Unit;...

  • Page 14: Combination Keys

    Combination Keys Combination Key Introduction Copy Print; Range Print; 」Shift『+」Print『 Cursor Print; Tempo Print Move the cursor to previous label or 」Shift『+」▲『 same label’s different area Move the cursor to next label or same 」Shift『+」▼『 label’s different area Move the cursor to current label’s 」Shift『+」...

  • Page 15: Create General Labels

    Create General Labels Page Width Length Size Repeat Turn on the printer and SUPVAN input the content, such as SUPVAN. Page Width Length Size Repeat SUPVAN Press Enter to create a LP6245A new line and input the content, such as LP6245A.

  • Page 16: Create Flag Labels

    Length Label’s length, can be automatic or specify (10-200mm) Diameter Tube’s diameter, can be automatic or specify (2-90mm) Perimeter=π*Diameter Type AA:AA; AA:BB AA:AA AA:BB SUPVAN SUPVAN LP6245A SUPVAN 2 Perimeter 2 2 Perimeter 2 Length Length Length Length When making flag labels, please use Non Laminated or Strong Adhesive Label Tapes only.

  • Page 17: Create Wrap Labels

    Create Wrap Labels Page Width Length Size Repeat <NEW> To create a wrap label, Diameter press “Wrap”, then input Inverse the diameter details, Repeat choose inverse and repeat. Diameter Tube’s diameter, can be automatic or specify (3-90mm) Inverse Turn on/off inverse Repeat Repeat can only work for single line label.

  • Page 18: Create Template Labels

    “Template”, then Table choose the template style Decorate Frame you want. Panel 4 different preinstall panel templates Table 26 different preinstall table templates Decorate Frame 86 different preinstall decorate frame templates SUPVAN LP6245A LP6245A SUPVAN SUPVAN PRINTER LABEL PRINTER Panel Table...

  • Page 19: Label Library

    Label Library Page Width Length Size Repeat To choose a label from label Office library, press “Library”, then Warning choose the label category Transport you want. Wishes Category Office Warning Transport Wishes Sales Quantities Office Warning Transport Wishes BEST SELLER Sales...

  • Page 20: Connect To Computer

    PC Connection This label printer can connect to computer. System requirements: Windows XP / Vista / 7 / 8 / 10 After installing the software, you can get more printing choices.

  • Page 21: Troubleshooting

    Troubleshooting Common Fault cause Handling methods problems 1. Wire between main 1. Reconnect or replace the control panel and wire between main control keyboard control panel panel and keyboard panel Turning on connected improperly or 2. Reconnect LCD or replace it without LCD damaged 3.
  • Page 22 1. Consumable installed 1. Install consumable properly improperly by following the user 2. Non-matching manual Interface consumables 2. Use Supvan original display 3. Consumable’s security consumables “Install label” chip damaged or no 3. Replace the consumable or after program...
  • Page 23 Troubleshooting Common Fault cause Handling methods problems 1. Consumable installed 1. Install consumables improperly properly by following the Label jam 2. Labels layered pasted at user manual the exit 2. Replace good quality 3. Exit jammed consumables 4. Full-cutter not reset 3.
  • Page 24 3. Non-matching consumable remove dirt from the print 4. Print head is broken head 5. Print head pressure 3. Use Supvan original weakened consumables 4. Replace print head 5. Replace print head compaction assembly 1. Printing content is space 1.
  • Page 25 Print content 2. Dirt on print head 2. Remove dirt from print incomplete 3. Non-matching head consumable 3. Use Supvan original 4. Print head is broken consumables 5. Ribbon knitted 4. Replace print head 5. Replace consumable 1. Battery is low 1.
  • Page 26 Troubleshooting Common Fault cause Handling methods problems No detection 1. Ribbon 1. Connect the ribbon after photoelectric photoelectric detect unit consumable detect unit properly or replace it depletion connected 2. Replace main control improperly or panel damaged 2. Main control panel damaged Interface 1.

  • Page 27: Symbol

    Symbol Unit ° † ‡ ＄ ￥ 〒 ｟ ｠ ％ ＠ ‣ ℉ ㏖ ㏗ ‟ ㏘ ㎤ ㎝ ㎞ ㎡ ㎟ ㎎ ㎏ ㎠ ° ○ ¤ ₠ ฿ ㎥ Number ㏙ ㏚ ㏛ ㏜ ㏝ ㏞ ㏟ ㏠...
  • Page 28 Symbol Mathematics ≈ ≡ ≠ ＝ ≢ ≣ ＜ ＞ ≤ ≥ ∷ ± ＋ － ³ ÷ ／ ⁁ ⁂ ‹ › ‽ ‾ ‷ ‶ ⁀ ‿ ‵ ⁄ ⁃ ≧ ‼ ※ ≨ ≦ ≌ ∽ ‸ ↞...
  • Page 29 Symbol Arrow       ′ ‴ ‱ ″ ↖ ↗ ↙ ↘                         ...
  • Page 30 Symbol Russian И А Б В Г Д Е Ё Ж З Й К Л М Н Ч О П Р С Т У Ф Х Ц Ш Щ Ъ Ы Ь ж Э Ю Я а б в г д...
  • Page 31 Symbol Tabulate ┌ ┬ ┐ ├ ┼ ┤ └ ┴ ┘ ┏ ┳ ┓ ┣ ╋ ┫ ╩ ─ ╪ ┗ ┻ ┛ ═ ╢ ╓ ╜ ╨ ╟ ╖ ╥ ╙ │ ┃ ╬ ━ ╫ ┍ ┑ ┕ ┙...
  • Page 32 Symbol Katakana ア イ ウ エ オ カ キ ク ケ コ サ シ ス セ ソ タ チ ツ テ ト ナ ニ ヌ ネ ノ ハ ヒ フ ヘ ホ マ ミ ム メ モ ヤ ユ ヨ ラ...
  • Page 33 Symbol Electrical Communicate...
  • Page 34 Symbol Prohibited Transport Office...
  • Page 35 Symbol Geometry Animal Insect...
  • Page 36 Symbol People Food Sports...
  • Page 37 Symbol Creativity Daily Use...

  • Page 38: Template Details

    Template Details Panel Table Decorate Frame...

  • Page 39: Library Details

    pending ASAP FOR YOUR please sign CONFIDENTIAL mail personal Standby URGENT Library Details INFORMATION Standby and return outgoing pending please sign ASAP mail URGENT outgoing and return CONFIDENTIAL please sign FOR YOUR personal mail URGENT Standby CONFIDENTIAL and return INFORMATION outgoing pending FOR YOUR...
  • Page 40 NO FOOD TURN LIGHT OFF DO NOT DISTURB REFERENCE ROOM Library Details NO ADMITTANCE outgoing FOR YOUR OR REGISTRATION tRASH CAN FOOD mail DO NOT DISTURB URGENT INFORMATION URGENT TURN LIGHT OFF REFERENCE ROOM NO FOOD DMITTANCE tRASH CAN VISITOR REGISTRATION DO NOT DISTURB RECYCLE BIN SALE...
  • Page 41 SUPVAN Organized, Simple, Done.
