Summary of Contents for Supvan LP 5125M

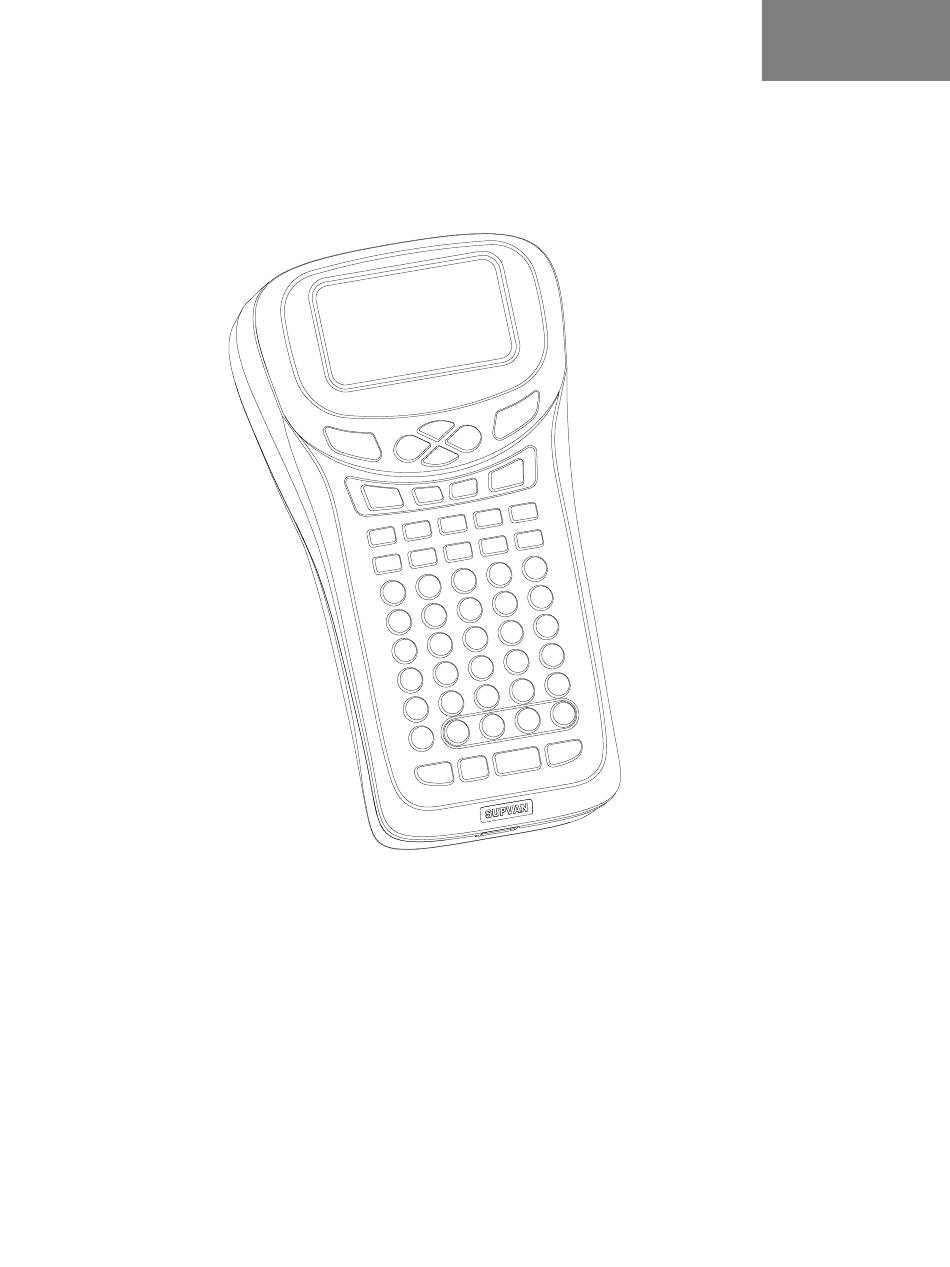

  • Page 1 English SUPVAN LP 5125M User Manual www.supvan.com.cn...
  • Page 2: Table Of Contents

    Declaration………………………………………………………………………1 Warning……………………………………………………………………………2 Precautions………………………………………………………………………3 Contents………………………………………………………………………….4 Specification…………………………………………………………………….5 Power Supply…………………………………………………………………..6 Insert a Tape Cassette………………………………………………………7 LCD Display………………………………………………………………………8 Keyboard………………………………………………………………………….9 Functional Keys………………………………………………………………11 Combination Keys………………………………………………………….12 Input Euro-Latin Letters ÂÄ……………………………………………13 Create General Labels…………………………………………………….14 Create Flag/Wrap Labels…………………………………………..15 Create Template Labels………………………………………………….17 Troubleshooting………….…………………………………………………18...
  • Page 3: Declaration

    Supvan reserves the right to vary because of the upgrade of the printer.  Supvan will not be responsible for any consequence caused by operations which do not follow the requirements of manual.  If you want to know more about the printer or Supvan, please visit: www.supvan.com...
  • Page 4: Warning

    Warning  Do not touch the AC adapter and printer during a thunder storm.  Do not damage, or place heavy objects on the power cord or plug. Always hold the AC adapter when disconnecting from the power outlet.  Do not use sharp objects to change the batteries. ...
  • Page 5: Precautions

    Precautions  Please use a single power socket. Do not use any multiple socket inserted with multiple devices, this may cause a fire or electric shock. Do not use any power plug with wet hand in case of any electric shock. ...
  • Page 6: Contents

    Contents Label Printer Hard Case* Li-polymer Battery** Label Tape User Manual Power Adaptor *and** are optional.
  • Page 7: Specification

    Specification Printing Method Thermal Transfer Resolution 200dpi Label Width 6mm / 9mm / 12mm Printing Speed 20mm/s File storage Up to 64 files Max. Height of 9 mm Letter Fonts 8 fonts Max. Labels No. Up to 50 labels in 1 file Keyboard ABC layout Display...
  • Page 8: Power Supply

    Power Supply When using six new AA alkaline batteries or Li-polymer batteries, make sure the poles are pointing in the correct directions. To remove the batteries, reverse the installation procedure.
  • Page 9: Insert A Tape Cassette

    Insert a Tape Cassette Open the back cover Tighten the label, then insert the label cassette in position which marked in printer Close the back cover To insert a label cassette, follow the step above. To remove the label cassette, reverse the installation procedure.
  • Page 10: Lcd Display

    LCD Display Page Width Length Size Repeat 2/50 SUPVAN LP5125M Item Introduction Current Label/All Labels;Editing Area/All Editing Area Page in One Label Width Label Width(6mm, 9mm, 12mm) Length Current label’s length, “A” stands for automatic Size Current line’s character size, “A” stands for automatic...
  • Page 11: Keyboard

    Keyboard L / S y L e n g t h F o n t F r a m e A li g n O r i e n t a t io n S y m b o l B a r c o d e S e q u e n c e R e p e a t...
  • Page 12 Keyboard Introduction Turn on/off the printer Short press: EA (uppercase), Ea (lowercase), Sy (Symbol) Long press: change system language L/Sy (English/Español/français/Italiano/Magyar/Nederlands/No rsk/Polski/Português/Slovenčina/suomi/Svenska/Türkçe/č eština/Dansk/Deutsch/русский/) Stop printing process/exit current setting or operation & return to the previous level of menu or edit interface. Number Short press: Number 1-0 Long press: Get into function menu...
  • Page 13: Functional Keys

    Functional Keys Long press 1-0 to realize the functional keys Number Functional Second-level Directory Keys Length Length; Margin; Char space; Lines space Font Font; Size; Width; Bold; Italic Frame Frame; Underline; 690Underline Align Center; Left; Right; Justify Orientation Horizontal; Vertical; Rotate; Mirror Symbol Unit;...
  • Page 14: Combination Keys

    Combination Keys Combination Key Introduction Copy Print; Range Print; 【Shift】+【Print】 Cursor Print; Tempo Print Move the cursor to previous label or 【Shift】+【▲】 same label’s different area Move the cursor to next label or 【Shift】+【▼】 same label’s different area Move the cursor to current label’s 【Shift】+【...
  • Page 15: Input Euro-Latin Letters Âä

    Input Euro-Latin Letters ÂÄ… The key “ÂÄ…” is used to input variant form of the Latin letters in different language inputting. Page Width Length Size Repeat  Input the English letter and press “ÂÄ…” key  If the letter does not have any variant form, then there will be no action ...
  • Page 16: Create General Labels

    Create General Labels Page Width Length Size Repeat Turn on the printer and SUPVAN input the content, such as SUPVAN. Page Width Length Size Repeat SUPVAN Press Enter to create a LP5125M new line and input the content, such as LP5125M.
  • Page 17: Create Flag/Wrap Labels

    Type Length Label’s length, can be automatic or specify (10-200mm) Diameter Tube’s diameter, can be automatic or specify (2-90mm) Perimeter=π*Diameter Type AA:AA; AA:BB SUPVAN SUPVAN SUPVAN LP5125M 2 Perimeter 2 2 Perimeter 2 Length Length Length...
  • Page 18 Create Flag/Wrap Labels Page Width Length Size Repeat Flag To create a wrap label, press Wrap “Flag/Wrap”, show the left screen, select “Wrap” to enter wrap label editing mode Page Width Length Size Repeat Set the parameter of <NEW> diameter, choose inverse Diameter and repeat as per your Inverse...
  • Page 19: Create Template Labels

    “Template”, then Table choose the template style Decorate Frame you want. Panel 4 different preinstall panel templates Table 11 different preinstall table templates Decorate Frame 86 different preinstall decorate frame templates SUPVAN LP5125M LP5125M SUPVAN SUPVAN PRINTER LABEL PRINTER Panel Table...
  • Page 20: Troubleshooting

    Troubleshooting Common Fault cause Handling methods problems 1. Wire between main 1. Reconnect or replace the control panel and wire between main control keyboard control panel panel and keyboard panel Turning on connected improperly or 2. Reconnect LCD or replace it without LCD damaged 3.
  • Page 21 1. Consumable installed 1. Install consumable properly improperly by following the user 2. Non-matching manual Interface consumables 2. Use Supvan original display 3. Consumable’s security consumables “Install label” chip damaged or no 3. Replace the consumable or after program...
  • Page 22 Troubleshooting Common Fault cause Handling methods problems 1. Consumable installed 1. Install consumables improperly properly by following the Label jam 2. Labels layered pasted at user manual the exit 2. Replace good quality 3. Exit jammed consumables 4. Full-cutter not reset 3.
  • Page 23 3. Non-matching consumable remove dirt from the print 4. Print head is broken head 5. Print head pressure 3. Use Supvan original weakened consumables 4. Replace print head 5. Replace print head compaction assembly 1. Printing content is space 1.
  • Page 24 Print content 2. Dirt on print head 2. Remove dirt from print incomplete 3. Non-matching head consumable 3. Use Supvan original 4. Print head is broken consumables 5. Ribbon knitted 4. Replace print head 5. Replace consumable 1. Battery is low 1.
  • Page 25 Troubleshooting Common Fault cause Handling methods problems No detection 1. Ribbon 1. Connect the ribbon after photoelectric photoelectric detect unit consumable detect unit properly or replace it depletion connected 2. Replace main control improperly or panel damaged 2. Main control panel damaged Interface 1.
  • Page 26 SUPVAN Organized, Simple, Done.
