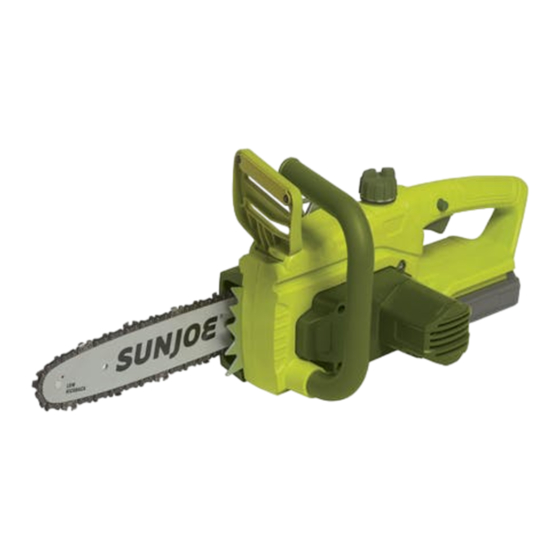

- Page 1 CORDLESS CHAIN SAW 20 VOLT MAX* | 10-INCH OPERATOR’S MANUAL Model 20ViONLTE-CS10-RM A Division of Snow Joe ® , LLC Form No. SJ-20ViONLTE-CS10-RM-880E-M-V1 © 2021 by Snow Joe ® , LLC SAVE THESE INSTRUCTIONS All rights reserved. Original instructions.
-
Page 2: General Safety
OPERATOR’S MANUAL Model 20ViONLTE-CS10-RM A Division of Snow Joe ® , LLC Form No. SJ-20ViONLTE-CS10-RM-880E-M-V1 • Using the machine while fastened to fixed supports. IMPORTANT! Improper use of the machine will invalidate the warranty, Safety Instructions relieve the manufacturer from all liabilities. The user will... -
Page 3: Chain Saw Safety Warnings
• Always keep proper footing and operate the chain saw 13. Do not overreach – Keep proper footing and balance only when standing on a fixed, secure and level surface. at all times. Slippery or unstable surfaces such as ladders may cause 14. - Page 4 • Do not crush, drop or damage battery packs – Do not To reduce the risk of injury, charge the CAUTION! use the battery pack or charger if they have sustained a EcoSharp LITE iBAT20-LTE lithium-ion battery pack only in its ®...
-
Page 5: Protection From Environmental Influences
common cause of exhaustive discharge is lengthy storage 8. Never use or charge batteries if you suspect that it has or non-use of partially discharged batteries. Stop working been more than 12 months since the last time they were as soon as the performance of the battery falls noticeably charged. - Page 6 instructions for the saw chain. Decreasing the depth Kickback gauge height can lead to increased kickback. • Always observe the safety regulations and follow the correct sawing techniques. KICKBACK • Ensure safe carrying of the unit. Whenever the machine is DANGER ZONE to be handled or transported, you must: –...
-
Page 7: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Descriptions Symbols Symbols Descriptions READ THE OPERATOR'S DANGER! ROTATING MANUAL(S) –... -
Page 8: Technical Data
Know Your Cordless Chain Saw Read the owner’s manual and safety instructions carefully before operating cordless chain saw. Compare the illustration below to the cordless chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. -
Page 9: Carton Contents
Failure to heed this warning could result in serious personal Unpacking injury. Carton Contents Installing/Replacing the • Cordless chain saw Guide Bar and Chain • 10 in. (25.4 cm) guide bar Tools and supplies required: • 10 in. (25.4 cm) cutting chain •... - Page 10 3. Remove the old chain from the bar. 6. Hold the chain in position on the bar and place the loop around the sprocket. Fit the bar flush against the mounting 4. Lay out the new saw chain in a loop and straighten surface so that the bar studs are in the long slot of the bar any kinks.
-
Page 11: Adjusting The Chain Tension
NOTE: You must fill the chain oil tank with bar and chain oil before using your chain saw. Fig. 9 Adjusting the Chain Tension 1. Loosen the end cover nut until it is hand-tight. Use the flat-tip blade screwdriver to turn the chain tensioner screw clockwise to tension the chain. -
Page 12: Battery Pack Operation
• 1 level monitoring LED is lit: Battery is flat. Stop work Chain Lubricant IMMEDIATELY and charge the battery. Otherwise the battery’s service life will be greatly shortened. IMPORTANT! Only use a good quality bar and chain oil designed specifically for use with chain saws to ensure optimal lubrication of the cutting parts. -
Page 13: Charging The Battery
4. When the charger base light turns green, the battery is Charging the Battery fully charged (Fig. 15). 1. Pull the push lock button on the battery to pull the battery pack out of the equipment (Fig. 13). Fig. 15 green Fig. -
Page 14: Charging A Hot Or Cold Battery Pack
8. Timely recharging of the battery will help prolong the tension because slender and tense material may catch the saw and be whipped toward you, pull you off balance, or battery's life. You must recharge the battery pack when you notice a drop in the equipment's power. spring back. -
Page 15: Operating Tips
• A certain amount of chain lubricating oil is released into Operating Tips the environment when the machine is running, so only use biodegradable oils made specifically for this use. WARNING! For your safety and that of others: • To avoid the risk of fire, do not leave the machine with the 1. -
Page 16: Cutting Techniques
Proper Cutting Stance Cutting Techniques • Weight should be balanced with both feet on solid ground. Before felling or delimbing for the first time, practice sawing • Keep your left arm and elbow locked in a "straight arm" logs on the ground or on trestles, so that you can get familiar with the machine and the most suitable sawing techniques. - Page 17 WARNING! Pay special attention to where the branches Fig. 22 are lying on the ground and recognize the following risks: 1). the branches may be under tension; 2). the direction in which the branch will fall may differ from that anticipated; 3). the tree may be unstable after the branch has been cut.
-
Page 18: Motor Cooling
WARNING! For your safety and that of others: Fig. 24C • Correct maintenance is essential to maintain the original efficiency and safety of the machine over time. • Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition. •... -
Page 19: Chain Sharpening
To maintain optimal blade sharpness and peak performance, – There is too much play between the links and the rivets. Sun Joe recommends model 24V-CSSHRP-LTE Cordless Chain Saw Sharpener, available on sunjoe.com, by phone at 1-866-SNOWJOE (1-866-766-9563), Fig. 26 WARNING! -
Page 20: Troubleshooting Tips
Chain Sprocket Regularly check the condition of the sprocket and replace it when wear exceeds 0.5 mm (Fig. 27). Daily Checklist, Cleaning Do not mount a new chain with a worn sprocket or vice-versa. and Storage Fig. 27 Daily Checklist <... -
Page 21: Service And Support
Service and Support in a dry and high or locked-up place, out of the reach of children. If your Sun Joe 20ViONLTE-CS10-RM cordless chain saw ® requires service or maintenance, please call 1-866-SNOWJOE Battery Caution + Disposal (1-866-766-9563) for assistance. -
Page 22: Federal Communications Commission (Fcc)
iCHRG20 Federal Communications Commission (FCC) Any changes or modifications to this WARNING! unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Class B device: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 23: Optional Accessories
