MSA EVOLUTION 5000 Series Quick Manual

New Docking Procedure for the
EVOLUTION
Truck-Mounted Charging System Camera
The pivot point on this Universal Truck-Mounted Charging
System is now moved to allow the carabiner to remain
attached to the camera when it is in the charging nest.
The carabiner does not need to be attached to use the
pivot pin.

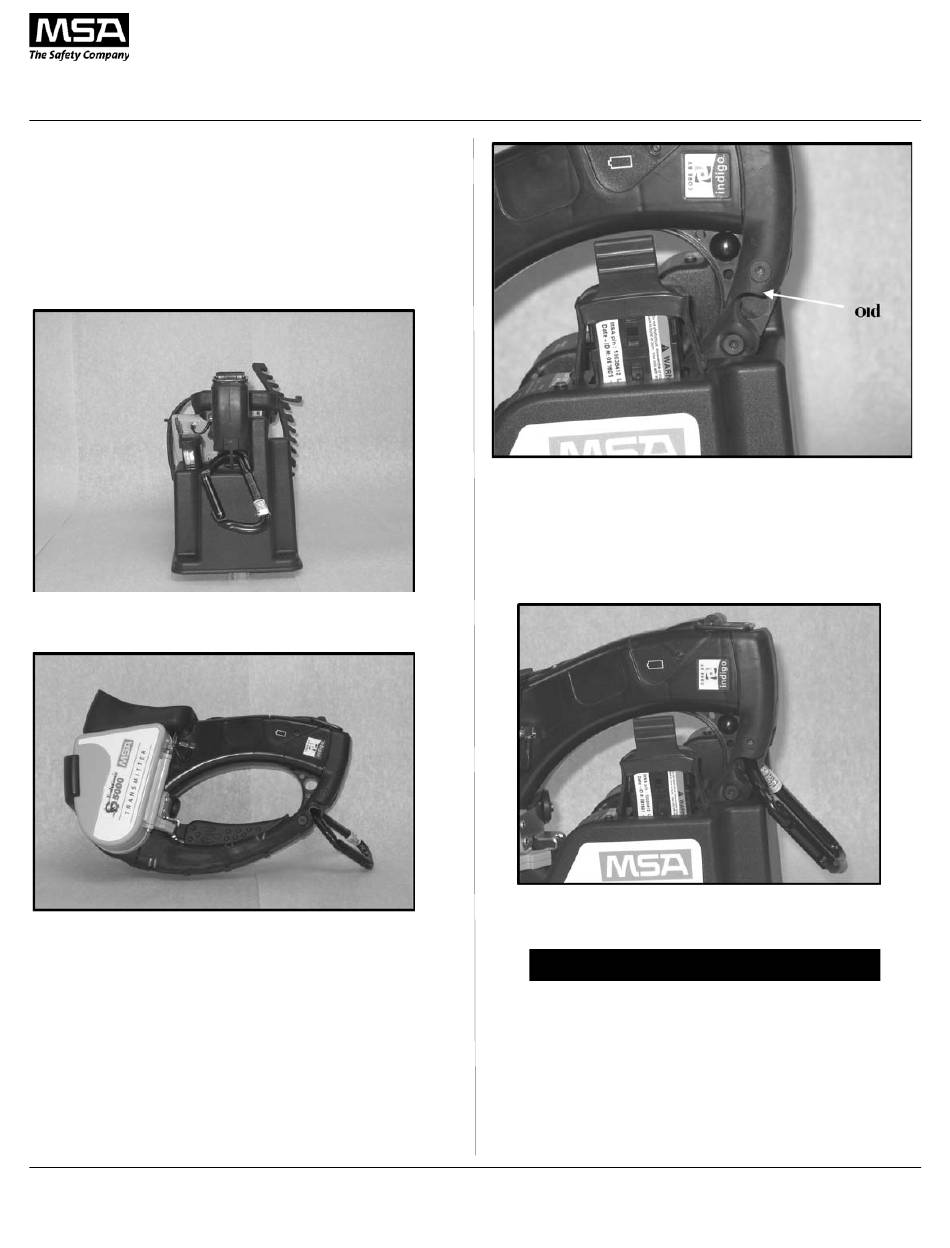

To be able to use the new pivot point with the carabiner
attached, the carabiner must be attached to the camera
as shown in FIGURES 8a and 8b.
.
Figure 8a
.
Figure 8b
The carabiner must be in the position shown in FIGURE
8a to provide clearance between the camera handle and
the pivot side of the charging nest.
The new pivot point on the camera handle can be seen in
FIGURE 8c.
The new pivot point is the web in the inside corner of the
handle. The old pivot point can be seen as the empty hole
below the new pivot hole.
©MINE SAFETY APPLIANCES COMPANY 2008
(L) REV 0
® 5000 Series Universal
The relationship to the attached carabiner to the new pivot
hole is shown in FIGURE 8d.The relationship to the
attached carabiner to the new pivot hole is shown in
FIGURE 8d.
Caution should be used when inserting the camera when
a spare battery is in the charging port. The addition of the
carabiner on the camera requires that the camera handle
be first angled as shown in FIGURE 8e.
ISZ001-011
.
Figure 8c
.
Figure 8d
" CAUTION
The new pivot hole location must be used with
this charging nest; otherwise, the charging pins
will not provide sufficient contact with the
camera.
P.O. BOX 427, PITTSBURGH, PA 15230
10096345
