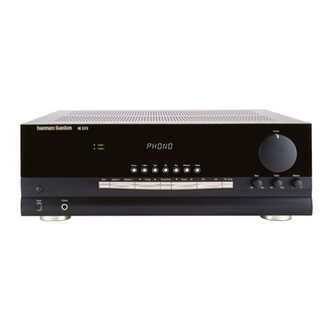

HK 3370 Stereo Receiver
OWNER'S MANUAL
MUTE T-MON
RDS
PTY
CT
RT
TA
AUTO
TUNED ST
MEMORY PRESET
SLEEP
Power for the Digital Revolution
™

Advertisement

Table of Contents
loading

Related Manuals for Harman Kardon HK3370

Summary of Contents for Harman Kardon HK3370

  • Page 1 HK 3370 Stereo Receiver OWNER’S MANUAL MUTE T-MON AUTO TUNED ST Power for the Digital Revolution MEMORY PRESET SLEEP ™...

  • Page 2: Table Of Contents

    – (number in a square) indicates a specific front panel control – (letter in a circle) indicates a button or indicator on the remote – (number in a circle) indicates a rear panel connection Carsten Olesen Harman Kardon Europe A/S 02/01...

  • Page 3: Introduction

    Introduction Congratulations! With the purchase of the Harman Kardon HK 3370 you are about to begin many years of listening enjoyment. While sophisticated systems are hard at work within the HK 3370 to make all of this happen, hookup and operation are simple. Color-keyed connections and a comprehensive remote con- trol make the HK 3370 easy to use.

  • Page 4: Front Panel Controls

    Front Panel Controls Main Power Switch System Power Control Power Indicator Headphone Jack Mute Speaker 1 Selector Speaker 2 Selector Phone Input Selector T-Mon Input Selector Tuning Button Main Power Switch: Press this button to apply power to the HK 3370. When the switch is pressed in the unit is placed in a Standby mode, as indicated by the amber LED surrounding...
  • Page 5 The display will return to normal brightness the next time the unit is turned on. FM/AM Selector: Press this button to select the tuner as the input to the receiver. When the tuner is in use, press this button to change between the AM and FM frequency bands.

  • Page 6: Rear Panel Connections

    fi Tape Monitor Play/In Tape Monitor Record/Out Tape 2 Play/In Tape 2 Record/Out Main In Pre-Out/Main-In Jumper Pins Preamp Out Subwoofer Out HK3370 ° · Speaker 1 Terminals Speaker 2 Terminals Switched AC Outlet Power Cable AC 230V 50HZ 240W...
  • Page 7 Remote IR Out: This connection permits the IR sensor in the receiver to serve other remote controlled devices. Connect this jack to the “IR IN” jack on Harman Kardon or other compatible equipment. Phono Inputs: Connect the outputs of your turntable or tone arm to these jacks.

  • Page 8: Remote Control Functions

    Remote Control Functions Main Power On Main Power Off Source Selectors Preset Up/Down Transport Controls Disc Skip Sleep Button Dimmer Button Main Tuning Buttons Direct Button Numeric Keys Auto Preset Secondary Control Cover Clear Button Memory Button Master Volume P. Scan Button Mute Button FM Mode Button Tuning Up/Down...
  • Page 9 Remote Control Functions The remote is capable of operating the HK3370 and most Harman Kardon CD changers or players, CD Recorders and Tape decks, using the control codes that are part of the remote. Main Power On: When the HK 3370...

  • Page 10: Installation And Connections

    HK3370, the others to the black ones (see connections below). Connect the speakers using the following steps: 1.

  • Page 11: System And Power Connections

    They may use this unit’s sensor or a remote eye by running a connection from the Remote IR Out jack to the Remote In jack on Harman Kardon or other compatible equip- ment. External Audio Power Amplifier Connections If desired, an optional, external amplifier may be used in place of the HK 3370’s internal power...

  • Page 12: Operation

    Main Power Switch Note that due its EEPROM backup system the HK3370 will retain information such as pro- grammed presets for a virtually infinite time (see ”Memory Backup”, page 14).

  • Page 13: Rds Operation

    Operation Preset Tuning Up to 30 stations may be stored in the HK 3370’s memory for easy recall using the front panel con- trols or the remote. In order to program preset stations into memory, you must use the remote control.

  • Page 14: Tape Recording

    If the system is still operating incorrectly, there may have been an electronic discharge or severe AC line interference that has corrupted the mem- ory or microprocessor. If these steps do not solve the problem, consult your dealer or an authorized Harman Kardon service center.

  • Page 15: Using The Remote Control

    CLEAR * not with CDR2/20 to operate Harman Kardon cassette decks. The Tape 2 page defaults to Harman Kardon CD-R control codes. The CD page defaults to Harman Kardon CD player or changer control codes. Please refer to the table below for specif- ic information on the default functions of the affected keys for these devices.

  • Page 16: Troubleshooting Guide

    Most problems users encounter are due to operating errors. If you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon Service Center.

  • Page 17: Technical Specifications

    Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice. Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman Kardon, Inc. FM Tuner Section Frequency Range 87.5–108MHz...
  • Page 18 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com Harman Consumer International: 2, Route de Tours, 72500 Château-du-Loir, France © 2001 Harman Kardon, Incorporated Part #Y1AR-K2001-02A...
