Summary of Contents for Harman Kardon HK3375

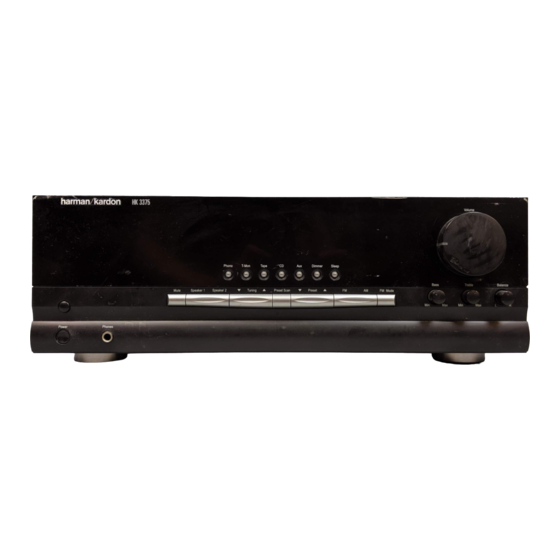

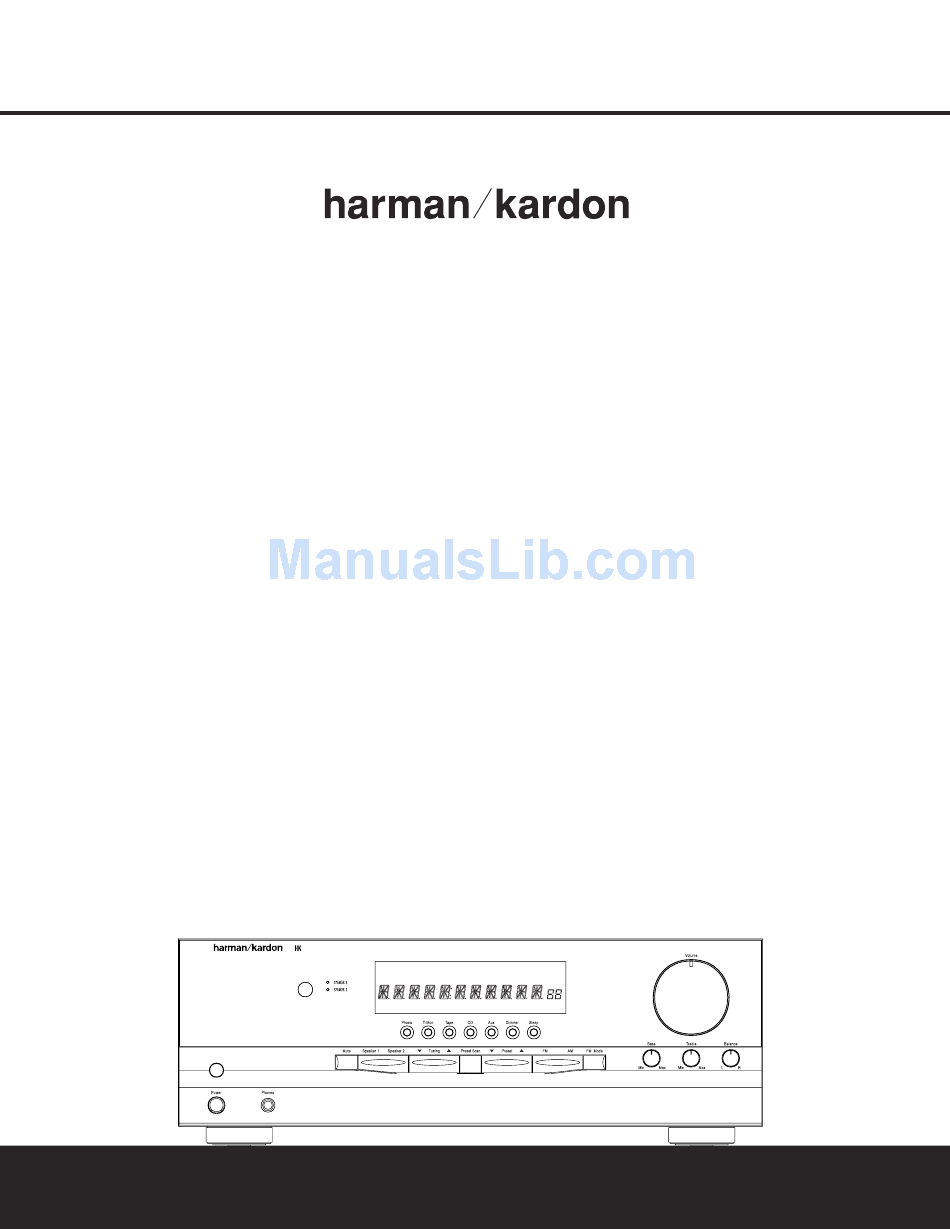

- Page 1 ® Power for the Digital Revolution ® HK 3375 STEREO RECEIVER OWNER’S MANUAL 3375 MUTE T-MON AUTO TUNED ST MEMORY PRESET SLEEP...
-
Page 2: Table Of Contents
HK 3375 STEREO RECEIVER Introduction Safety Information Unpacking Front-Panel Controls Front-Panel Information Display Rear-Panel Connections Remote Control Functions Installation and Connections Operation Basic Operation Source Selection Tuner Operation Tape Recording Memory Backup Processor Reset Troubleshooting Guide Technical Specifications See trademark acknowledgements on page 17. -
Page 3: Introduction
Harman Kardon invented the high-fidelity receiver almost fifty years ago. With state-of-the-art features and time-honored circuit designs, the HK 3375 is one of the finest receivers ever offered by Harman Kardon. Harman Kardon ® -designed high-current, ultra- wide-bandwidth amplifier... -
Page 4: Safety Information
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. -
Page 5: Front-Panel Controls
3375 1 Main Power Switch 2 System Power Control 3 Power Indicator 4 Headphone Jack 5 Mute 6 Speaker 1 Selector 7 Speaker 2 Selector 8 Phone Input Selector 9 T-Mon Input Selector 1 Main Power Switch: Press this button to apply power to the HK 3375. - Page 6 FRONT-PANEL CONTROLS & FM/AM Selector: Press this button to select the tuner as the input to the receiver. When the tuner is in use, press this button to change between the AM and FM frequency bands.
-
Page 7: Front-Panel Information Display
MUTE T-MON A Preset Number/Sleep Timer B Preset Indicator C Sleep Indicator D Memory Indicator A Preset Number/Sleep Timer: When the tuner is in use, these numbers indicate the specific preset memory location in use. (See page 15 for more infor- mation on preset stations.) When the Sleep function is in use, these numbers show how many minutes remain before the unit goes into the Standby mode. -
Page 8: Rear-Panel Connections
Connect this jack to the “IR In” jack on Harman Kardon (or other compatible) equipment. § Phono Inputs: Connect the outputs of your turntable or tonearm to these jacks. Only Moving Magnet (MM)-type cartridges may be used. - Page 9 CD players or cassette decks. The power to these outlets remains on as long as the receiver itself is on. When the receiver is turned off, or placed in the Standby mode, power to these outlets is removed.
-
Page 10: Remote Control Functions
REMOTE CONTROL FUNCTIONS å Main Power On ∫ Main Power Off ç Source Selectors ∂ Preset Up/Down ≠ Transport Controls ƒ Disc Skip © Sleep Button ˙ Dimmer Button î Tuning ∆ Direct Button ˚ Numeric Keys ¬ Auto Preset µ... - Page 11 ƒ Disc Skip: These buttons do not have any func- tions when controlling the HK 3375, but they operate the Disc Skip functions of compatible Harman Kardon compact disc changers. © Sleep Button: Press this button to place the unit in the Sleep mode.
-
Page 12: Installation And Connections
NOTE: When the CD player has both fixed and variable audio outputs, it is best to use the fixed output unless you find that the input to the receiver is so low that the sound is noisy, or so high that the signal is distorted. - Page 13 They may use this unit’s sensor or a remote eye by running a connection from the Remote IR Out Jack ∞ to the Remote In jack on Harman Kardon or other com- patible equipment. External Audio Power Amplifier Connections If desired, an optional, external amplifier may be used in place of the HK 3375’s internal power amplifier.
-
Page 14: Operation
OPERATION Basic Operation Once you have completed the setup and configuration of your new receiver, it is simple to operate and enjoy. The following instructions will provide the steps needed to enjoy the HK 3375: • Install the two supplied AAA batteries in the remote as shown. -
Page 15: Tape Recording
If the system is still operating incorrectly, there may have been an electronic discharge or severe AC line interference that has corrupted the memory or microprocessor. If these steps do not solve the problem, consult an authorized Harman Kardon service center. OPERATION... -
Page 16: Troubleshooting Guide
This unit is designed for trouble-free operation. Most problems users encounter are due to operating errors. So, if you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon service center. -
Page 17: Technical Specifications
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice. Harman Kardon and Power for the Digital Revolution are registered trademarks of Harman International Industries, Incorporated. HK 3375 TECHNICAL SPECIFICATIONS... - Page 18 NOTES NOTES...
- Page 19 NOTES NOTES...
- Page 20 ® 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com © 2002 Harman International Industries, Incorporated Part No.: YIAR-K2002-03A...
