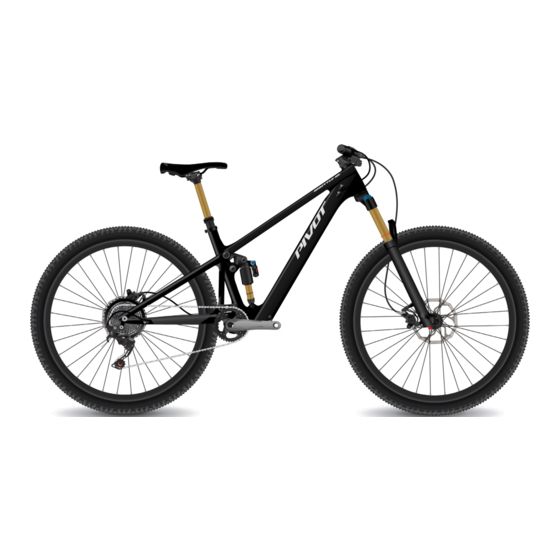

- Page 1 SHUTTLE SL Original Operational Instructions...
- Page 2 FAZUA E-bike System. This document contains some helpful diagrams and reference material to make sure you have everything necessary to maintain your Shuttle SL and enjoy it to the fullest. www.pivotcycles.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE 1. Quick Start Guide - Suspension/Tire Set-up - Adjusting Saddle Height - Charging the Battery - Powering the System ON and OFF - Ring Control and LED Hub Functions 2. Bike Set-up - Recommended Tire Pressure - Setting Sag - Setting Compression Damping on the Fox Float X &... - Page 4 - Bicycle Safety - Improper Use Hazards - Health Hazards - Potential Damage Hazards 9. Additional Information - FAZUA Ride 60 Drive System - Pivot Shuttle SL - Conformity - Sources TECHNICAL DATA ON THE DRIVE UNIT Article Number 10A101000A/10A101100A...
-
Page 5: Quick Start Guide
QUICK START GUIDE Suspension/Tire Set-up Body Weight in [kg] to [bar] 0.15 × Body Weight [kg] = [bar] Shock Air Pressure Body Weight in [kg] to [psi] 2.2 × Body Weight [kg] = [psi] (by Body Weight) Body Weight in [lbs] to [bar] 0.07 × Body Weight [lbs] = [bar] *Always check sag Body Weight in [lbs] to [psi] Body Weight [lbs] = Body Weight in [psi] 8 clicks in from OPEN*... -
Page 6: Bike Set-Up
BIKE SET-UP Recommended Tire Pressure • Tire pressure is an important factor on having the bike ride properly. If the tire pressure is too high, the tire will not conform to ground, reducing traction. If the tire pressure is too low, the tire could pinch flat. •... - Page 7 BIKE SET-UP Setting Compression Damping on the Fox Float X Some Float X shocks features a blue low speed compression adjustment knob, which can be used to fine tune the open mode of the compression damping. This knob offers 10 additional fine tune adjustment settings to the open mode. Turning the knob clockwise will increase low speed compression damping.
-
Page 8: Setting Compression Damping On The Fox Float X & Dps
BIKE SET-UP Setting Rebound Damping on the Fox Shocks • Rebound is set from the most open, fully counter-clockwise, position. • The rebound setting is determined by the air pressure in the shock. • Refer to the table below for the suggested rebound setting. The number in the chart refers to how many clicks in clockwise from the open setting the rebound should be set. -
Page 9: Setting Compression Damping On The Fox 36 & 34 Forks
BIKE SET-UP Setting Compression Damping on the Fox 36 GRIP 2 Fork • To set compression, start from the open (or fastest) position by turning the black (LSC) dial & blue (HSC) dial counter-clockwise until they stop clicking. • A good starting point for most riders is to turn the black (LSC) dial clockwise 5 clicks & turn the blue (HSC) dial clockwise 2 clicks. -
Page 10: Charging
When the color of the LED indicator switches to green, this indicates that the battery is fully charged. Control Element Details NOTE: FAZUA offers multiple controller options. The Shuttle SL is equipped with the "Ring Control" and the "LED Hub". This manual specifically addresses the function of these elements. Additional information regarding the other remote options offered by FAZUA can be found on their website. -
Page 11: Powering The System On And Off
Support Modes The Shuttle SL has 4 support mode as well as Boost and Walk Assist modes. The Ring Control is used to toggle between assist modes. The 5 lights found in the LED Hub change color to indicate the support level. -
Page 12: Boost Mode
*Boost cannot be activated if you have not selected an assist mode (LEDs are white) or if your speed is above 20mph or 25 km/h. Walk Assist Mode The Shuttle SL features a Walk Assist Mode for when you may need to walk your bike. This function helps propel the bike forward to reduce your effort to push the bike. -
Page 13: Support Characteristics
Reactivity: This parameter determines how rapidly the assist is activated. It is defined by a percentage indicating how quickly the motor power output is applied. This value can vary between 0-100 [%]. * These charts are for illustrative purposes only and do not necessarily represent actual support characteristics of Shuttle SL. Factory Support Settings NOTE: This is an example of the support curve for each of the three support modes. -
Page 14: Fazua Rider App Navigation
The FAZUA App is the main control center for your FAZUA Energy Bike. Change your support mode settings in the customizer, download new support profiles from the store for free, and change between profiles for your Shuttle SL directly from you smart phone. Scan for the FAZUA App How to Install the FAZUA App 1. -
Page 15: Fazua Toolbox Software
FAZUA SOFTWARE Download Software NOTE: All software downloads can be accessed via the FAZUA website: https://FAZUA.com/ Download Desktop Software (FAZUA Toolbox) 1. Go to the website listed above and click on the "Desktop Software" link. 2. On the next page, select the operating system of your device click on the plus to view the system requirements and the "Download"... -
Page 16: Customize Assistance Profile
FAZUA SOFTWARE Customize Assistance Profiles NOTE: A detailed video outlining the procedure for customizing the assistance profiles can be found on the FAZUA website: https://FAZUA.com/ 1. Open the FAZUA Toolbox software and connect the drive unit. (Procedure provided above) 2. In the FAZUA Toolbox software, on the left panel, click on the "Customizer" menu. 3. -
Page 17: Setting Custom Assistance Profiles
FAZUA SOFTWARE Setting Custom Assistance Profiles To transfer the custom settings to the drive unit, click the "Set Values" button at the top of the screen. Saving Custom Assistance Profiles Once a custom configuration is created, click on "New", give the profile a name and click on "Save". All the profiles you have saved can be called up in the drop-down menu, even if the drive unit is not connected to the computer. -
Page 18: Troubleshooting
My Mac computer will not connect Connecting directly to the Shuttle SL with a USB-C cable may not connect to the to the Toolbox Software. Toolbox Software. Use a USB-C to USB adapter for proper connectivity to the software. -
Page 19: Schematics
SCHEMATICS FAZUA Ride 60 System Schematic (G&H) (E&F) LETTER PART DESCRIPTION PART NAME Ring Control (Drive Unit Switch) 31A101000A Battery (Energy 430 fix) 20A101100A Drive Unit 10A101100A LED Hub 30A102200A Speed Sensor (Magnet included on rotor) 61A101100A Speed Sensor Holder 61A103000A Battery Charging Port 61A102000A... -
Page 20: Small Parts Schematic
SCHEMATICS Small Parts Schematic nSHUTTLE SUPERLIGHT Hardware NUMBER PART NUMBER DESCRIPTION TORQUE FP-CVR-S SLV 1-SKD-V 1-R1 Shut tle SL V 1 Skid Plate FP-UDH-TA-12MM-BLK-V 1-R1 Universal Rear Derailleur Hanger Universal Rear Derailleur Hanger Bolt 25 Nm (18 lb·f t) Universal Rear Derailleur Hanger Washer FP-LNK-UL-61MM-V 1-R1 61mm Upper Link FP-LNK-LL-45MM-V2-R1... -
Page 21: Wiring Diagrams
SCHEMATICS Wiring Diagram Ring Control Wire LED Hub Wire Speed Sensor Wire Charging Port Wire Shift Housing Brake Line Dropper Post Housing www.pivotcycles.com info@pivotcycles.com 1.877.857.4868... - Page 22 4. Select "Add Sensor". 5. The Garmin will begin searching for the Shuttle SL. Turn on the Shuttle SL by pressing the center FAZUA button on the controller. The lights will flash blue three times. 6. The Garmin will find power or cadence/speed depending on what was selected. Select "Add".
- Page 23 WARNINGS Bicycle Safety • Read and follow the manufacturer's instructions for e-bike use. • Research and observe any applicable national, state, or locals laws and regulations regarding e-bikes and their use. Improper Use Hazards • Under no circumstances should the end user modify or alter individual components of the drive system autonomously.
- Page 24 WARNINGS Health Hazards • Protect the battery from mechanical influences and any other load. • If you notice or suspect that gas is leaking from the battery, immediately ensure a supply of fresh air and seek medical attention as soon as possible. •...
- Page 25 FAZUA Ride 60 Drive System visit: https://FAZUA.com/ Pivot Shuttle SL • For FAQs and additional technical documents regarding the maintenance of the Pivot Shuttle SL can be found at: https://global.pivotcycles.com/products/shuttle-sl Conformity FAZUA confirm the conformity according to 47 CFR Section 15.105 - Information to the user. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 26 Notes: www.pivotcycles.com...
- Page 27 Notes: www.pivotcycles.com info@pivotcycles.com 1.877.857.4868...
- Page 28 6720 South Clementine Court Tempe, AZ 85283 T + 1 480 467 2920 info@pivotcycles.com www.pivotcycles.com...
