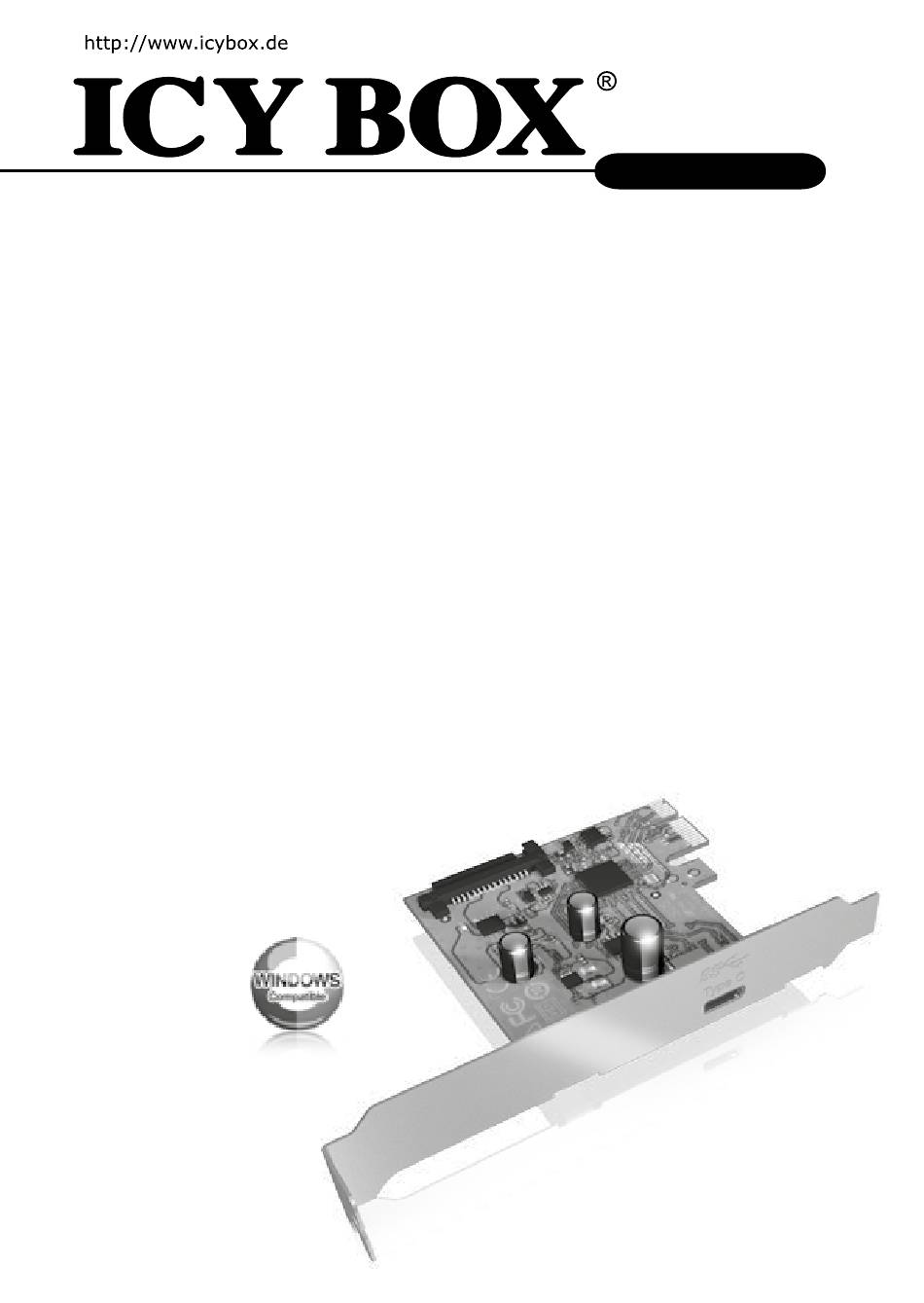

Manual IB-U31-01 1 Port USB 3.1 PCI Express extention-card Handbuch IB-U31-01 1 Port USB 3.1 PCI Express Erweiterungskarte Manuel Série IB-U31-01 Carte d‘extension 1x USB 3.1 PCI-E Manuale della IB-U31-01 Scheda di espansione 1x USB 3.1 PCI-E Manual Serie IB-U31-01 Tarjeta de expansión 1x USB 3.1 PCI-E...
Page 3
Or you will only get half of the data transfer rate. To satisfy USB 3.1 10 Gbit/s SuperSpeed+ highest performance, ICY BOX IB-U31-01 adopts the PCIe Gen3/x1 (8 Gbit/s) interface connector design. However, most PC system do not support PCIe Gen3 specification, but only PCIe Gen2 x1 (5 Gbit/s) performance.
IB-U31-01 Hardware Installation Follow the instruction given above to install the PCI Express Card: Turn your computer off and remove the power plug from the plug socket Remove the cover from the computer case Remove the metal cover plate on the rear of a free PCI Express slot (e.g. PCIe x16) Insert the card into one free PCI Express slot and screw it firmly on the bracket side Plug SATA Power cable (from PC’s Power Supply) to the add-on card’s SATA port...
IB-U31-01 Driver Installation ICY BOX USB 3.1 PCIe Host card designis based on Microsoft Windows operation systems. The table in this topic provides the operating systems and the supported drivers. Operating System USB 3.1 Driver Remark Windows 10 Windows 8 / 8.1...
Model Interface IB-U31-01 1x USB 3.1 Type-C 2. Package contents 1x IB-U31-01, 1x CD, 1x quick installation guide (multilanguage) 3. Key Features • 1 Port USB 3.1 PCI Express controller-card • Expands your PC to one more USB 3.1 port (Type-C) •...
Page 7
1. Modell - Schnittstelle Modell Schnittstelle IB-U31-01 1x USB 3.1 Type-C 2. Verpackungsinhalt 1x IB-U31-01, 1x CD, 1x Schnellinstallationsanleitung (Mehrsprachig) 3. Hauptmerkmale • 1 Port USB 3.1 PCI Express Erweiterungskarte • Erweitert Ihren PC um einen externen USB 3.1 Anschluss (Type-C) •...
Page 8
1. Modèle – Interface Modèle Interface IB-U31-01 1x USB 3.1 Type-C 2. Contenu de la livraison 1x IB-U31-01, 1x CD, 1x guide d‘installation rapide (Multi-langue) 3. Spécialités principales • Interface externes: 1x USB 3.1 Type-C • PCI Express Single-lane (x1) révision 3.0 •...
Page 9
Modello Extern collegamento IB-U31-01 1x USB 3.1 Type-C 2. Contenuto della confezione 1x IB-U31-01, 1x CD, 1x guida per l‘installazione rapida (multilingue) 3. Caratteristiche principali • Con 1 port USB 3.1 esterne Type-C • PCI Express Single-lane (x1) revisione 3.0 •...
Page 10
1. Módulo - Interfaz Módulo Interfaz IB-U31-01 1x USB 3.1 Type-C 2. Contenido del embalaje 1x IB-U31-01, 1x CD,1x Guía de instalación rápida (en varios idiomas) 3. Características principales • Puerto externos: 1x USB 3.1 Type-C • PCI Express Single-lane (x1) revisión 3.0 •...
Page 11
1. Model - Interfejs Model Interfejs IB-U31-01 1x USB 3.1 Type-C 2. Zawarcie pudełka 1x IB-U31-01, 1x CD, 1x krótka instrukcja instalacji (wielojęzyczna) 3. Funkcje kluczowe • 1 zewnętrzne portu USB 3.1 Type-C • PCI Express Single-lane (x1) w wersji 3.0 •...
Page 13
Модель хост-интерфейс IB-U31-01 1x USB 3.1 Type-C 2. Содержание упаковки IB-U31-01 – 1 шт., 1 CD – 1 шт., инструкция по быстрой установке (многоязычная) – 1 шт. 3. Основные признаки • 1 внешний порт USB 3.1 Type-C • PCI Express Single-lane (x1) модификация 3.0 •...
Page 14
1. Modelo – Interface Modelo Interface IB-U31-01 1x USB 3.1 Type-C 2. Conteúdo da embalagem: 1x IB-U31-01, 1x CD, 1x manual de instruções 3. Recursos • Com 1 porta USB 3.1 externas Type-C • PCI Express Single-lane (x1) revisão 3.0 •...
Page 15
1. Vzor – Rozhraní Vzor Rozhraní IB-U31-01 1x USB 3.1 Type-C 2. A csomag tartalma 1x IB-U31-01, 1x CD, 1x návod k obsluze 3. Funkce • Externí port 1x USB 3.1 Type-C • PCI Express Single-lane (x1) revize 3.0 •...
