Summary of Contents for Tymate M7-3

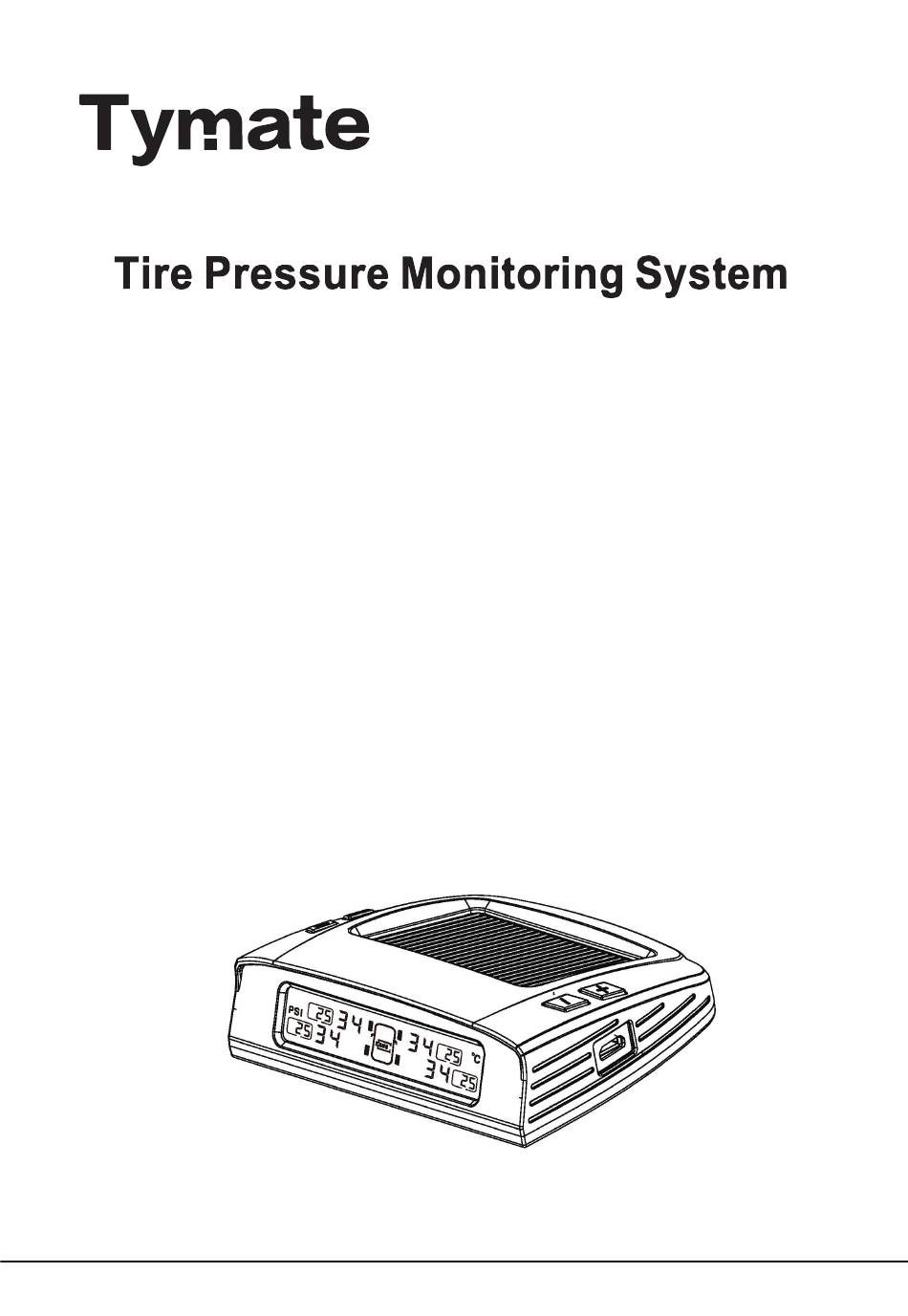

- Page 1 User Manual Model No. M7-3 Implementation Standard: GB26149-2017...
-
Page 2: Table Of Contents
1. Product Introduction 2. Monitor Feature 3. Installation Tips 4. Product Accessories 5. Parameter Settings 5-1 Factory Default 5-2. Setting Sequence 6. Alert Condition 6-1. High Pressure Alert 6-2. Low Pressure Alert 6-3. High Temperature Alert 6-4. Fast Leakage Alert 6-5. - Page 3 Thanks for choosing our TPMS product. The sysetm is used to detect the pressure and temperature in the tire. After the alarming condition is set up by the user, the system will alarm under the situations of abnormal pressure and temperature and warn the driver of dangerous driving.

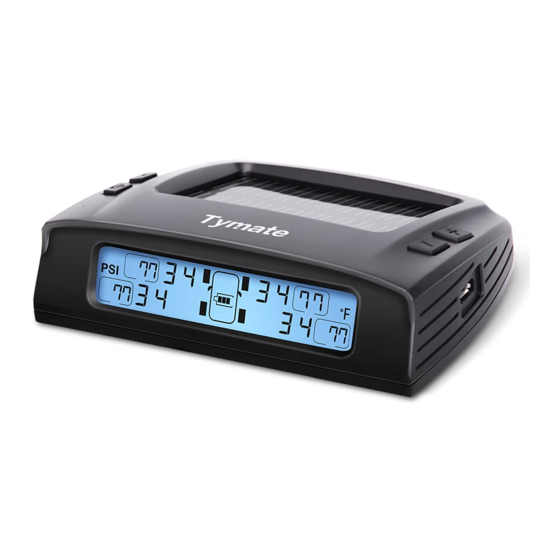

- Page 4 Automatically solar power battery recharger Pressure and temperature alarm Display and sound prompt alarm Mutiple pressure unit options (PSI, BAR) Mutiple temperature unit options(°C, °F ) Configurable high/low pressure and high temperature alarm Tire position exchange Automatic wake-up function Automatic backlight Built-in rechargeable lithium battery Detect up to 7 tires (including one spare tire) Display temperature and pressure simultaneously...
- Page 5 ON/OFF Multiple Pressure Unit option: BAR or PSI Multiple Temperature Unit option: Low Volatge of the Sensor Battery...
-
Page 8: Factory Default
6. Alert Condition High Pressure Alert/ Low Pressure Alert/ High Temperature Alert/ Fast Leakage Alert / Low Voltage Alert of Sensor Battery 1) Handle the abnormal situation of the tire in time. 2) Long press the"SET"button, the alarm will stop and enter the setting page. Long press the"SET"button again, the machine will exit the setting page, and the alert will not sound for the time being. - Page 10 7 Sensors(Spare tires): displayed as below The monitor will be in sleeping mode when the vehicle is not in motion for 10 minutes or when external DC power is not connected. The monitor will not receive any data from the sensors. Press any button to wake up the monitor to standby mode. The solar power battery was built inside the monitor and it can power the monitor for long time once fully charged.
-
Page 11: Monitor Specifications
The factory has already coded 4 sensors to the monitor, and the sensors can be re-coded accordingly to actual tires’ positions after exchanging the tires. There an inflate code learning for re-coding the sensors. In standby mode, press and hold"+"button and release it after the beep sound to enter learning mode. -
Page 12: Get Help
Please use the system correctly. Distributors are not liable for damages caused by misuse. 11.Get Help data display. 3. It is normal for the sensor to be worn and corroded by the external environment. We recommend that you buy extra sensors as backup. Then when the sensor is abnormal, you can try to solve the problem according to the following instructions. - Page 13 If the signal from the sensor cannot be transmitted to the monitor, or the signal transmitted by the sensor is unstable, we recommend that you purchase a repeater or other repeater models of the Tymate.
- Page 14 --- IF YOU ENCOUNTER ANY OTHER PROBLEMS --- Please don't hesitate to contact < tymate@afterservice.vip> or call <+1(855)492-9277>. It’s also a good choice to contact us by after-sales service official website: https://tymate.afterservice.vip. You can quickly get in touch with the after-sales team by scanning the QR code below.
