Tire Pressure Monitoring System
User Manual
Implementation Standard: GB26149-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M12-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tymate M12-3

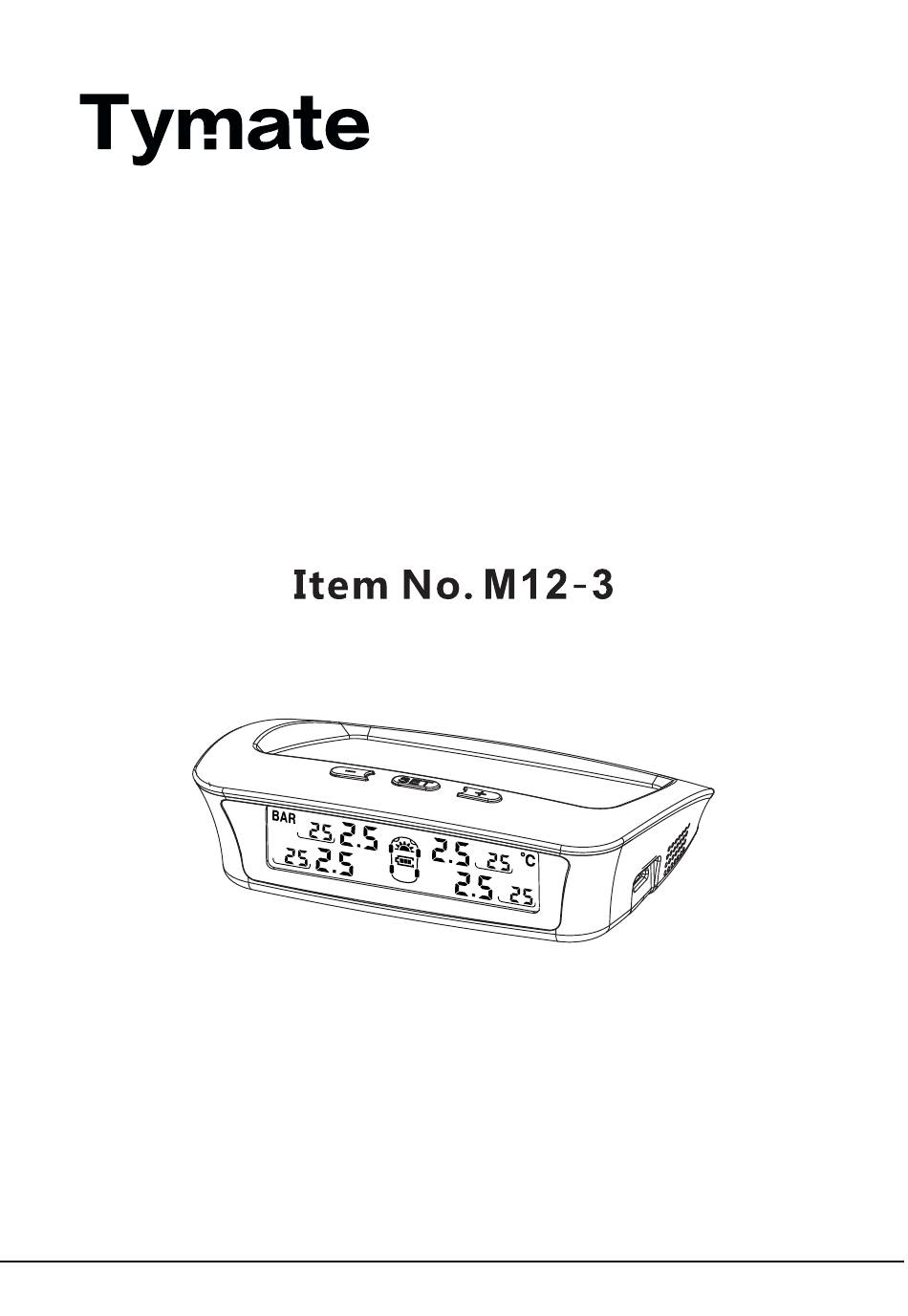

  • Page 1 Tire Pressure Monitoring System User Manual Implementation Standard: GB26149-2017...
  • Page 2: Table Of Contents

    1. Product Overview 1.1 Product Introduction 1.2 Safety Warnings 1.3 Installation Precautions 2. Product Features 3.Product Composition 3.1 Monitor Buttons and LCD Image 3.2 Monitor Installation Instructions 3.3 Turn on/off the Monitor 4. Parameter Settings 4.1 Factory Settings 4.2 Restore Factory Settings 4.3 Setting Order 5.
  • Page 3: Product Overview

    1. Product Overview 1-1 Product Introduction Thank you for choosing our tire-pressure monitoring system. The system is used to monitor the air pressure and temperature data of each tire in real time. The collected pressure and temperature data will be sent to the display by means of radio frequency. After the data is received and processed by the monitor, it will be displayed on the display screen to remind users to avoid traffic accidents, and corresponding alarms will be issued for different abnormal situations according to the standard pressure and temperature...
  • Page 4: Installation Precautions

    1.3 Installation Precautions 1) If the monitor does not feel vibration within 10 minutes, the monitor will automatically enter the sleep mode. If there is a slight vibration, it will automatically turn on and receive the data sent by the sensor. If no data is displayed on the screen, it does not mean that the product is abnormal.
  • Page 5: Product Composition

    3. Product Composition 3.1 Monitor Buttons and LCD Image Solar panels USB charging socket Icon Description Tires ON/OFF/- Sensor low battery alarm Display battery level indicator Fault icon Pressure unit: BAR or PSI, for users to choose Solar charging icon Temperature unit: °C or °F, for users to choose 3.2 Monitor Installation Instructions Install the monitor in a place where it is easy to see in the car.
  • Page 6: Turn On/Off The Monitor

    3.3 Turn on/off the Monitor When parking for a long time, the user can manually turn off/on the display. In the off state, press and hold the "-" key, the monitor turns on after a beep sound. In the power-on state, press and hold the "-"...
  • Page 7: Setting Order

    4.3 Setting Order 1)Pressure Unit setting When the "PSI" or "BAR" icon flashes, press the "-" or "+" key to select the "PSI" or "BAR" required by the user. 2)Temperature Unit setting When the “ ” or “ ” icon flashes, press the “-”...
  • Page 8 6) Rear tire low pressure alarm value setting ( When the low pressure parameter and rear tire icon is flashing, press the "-" or "+" key to set the low pressure alarm value required by the user. 7) Spare tire high pressure alarm value setting ( When the high pressure parameter and the spare tire icon is flashing, press the "-"...
  • Page 9: Alarm Status

    5. Alarm Status High pressure / low pressure / high temperature / sudden air leak / low voltage alarm of sensor battery The same interface of the display shows the pressure and temperature of 4 tires. When the tire pressure or temperature exceeds the safety range set by the user, corresponding tire icon, parameter and corresponding fault icon on the display screen will flash and alarm sound will prompt.
  • Page 10: Sudden Air Leak Alarm

    5.4 Sudden Air Leak Alarm When the sensor detects a sudden air leak, it will immediately send alarm data to the display. The corresponding tire icon, air pressure reading and fault icon alarm on the display will sound (Bi..). Press any key to cancel the alarm prompt. If the sensor continues to send leak information, it will prompt a leak alarm again.
  • Page 11: Other Functions 6.1 4-7 Tire Display

    6. Other Functions 6.1 4-7 Tire Display Pressure display: 1) 4 sensors: One interface displays the pressure values of four tires. 2) 7 sensors (equipped with spare tires): The display shows the air pressure values of seven tires in two interfaces. One interface displays the air pressure values of 4 tires. The other displays the air pressure values of 3 tires (spare tire), switching once every 10 seconds.
  • Page 12: Recode The Sensor

    7. Recode the Sensor The 4 sensors have been coded and marked with their positions before leaving the factory. Users only need to install the corresponding sensor positions to the corresponding tires. When the user needs to exchange the tires, or there is a wrong code, or the position of the sensor is forgotten during the assembly process, the following "inflate code learning"...
  • Page 13: Disclaimer

    9. Disclaimer 1) Please use this product correctly and use it within its allowable range. If it is used beyond its scope, the company will not be responsible for all consequences. 2) The installation process should strictly follow the instructions of the user manual. If any damage caused by the installation is not according to the instructions, the company will not be responsible for it or give any explanation! 3) When setting the alarm value, please strictly abide by its range.
  • Page 14 ---IF THE SENSOR IS NOT IN THE NORMAL OPERATION--- It is recommend to test the sensor first. You could take off the sensor from your tire to see if the machine alarm. 1) If the monitor begins beeping, it means your sensor is in normal operation. Then you could try to re-install the sensor.
  • Page 15: Contact Us

    11. Contact Us We promise 2-YEAR WARRANTY and 24/7 CONSIDERATE CUSTOMER SERVICE. If you need us, please contact us via [tymate@afterservice.vip] or call <+1(855)492-9277> directly. You can quickly get in touch with the after-sales team by scanning the QR code below. It’s also a good choice to contact us by after-sales service official website: https://tymate.afterservice.vip.
