Tymate CL205 Instruction Manual

Tyre pressure monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Implementation Standard: GB26149-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tymate CL205

Summary of Contents for Tymate CL205

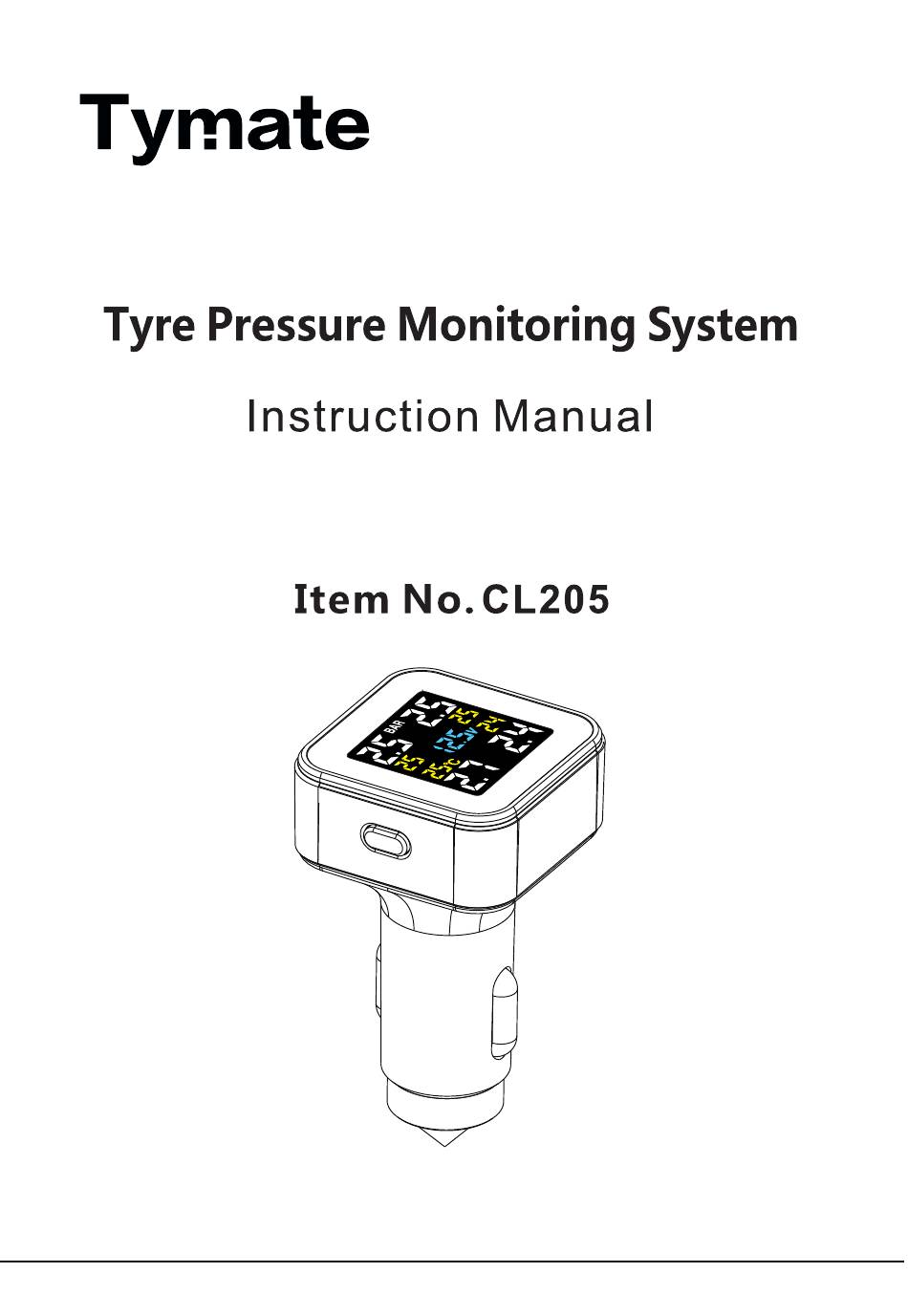

  • Page 1 Implementation Standard: GB26149-2017...

  • Page 2: Table Of Contents

    1.Product Overview 2.Product Features 3.Product Composition 4.Installation Guide 5.Parameter Settings 6.Tire Parameter on Display 7.Alarm Status 7.1 High Pressure Alarm 7.2 Low Pressure Alarm 7.3 High Temperature Alarm 7.4 Sudden Air Leakage Alarm 7.5 Sensor Low Voltage Alarm 7.6 Sensor Failure 8.User Code 9.Technical Parameters 10.The Disclaimers...

  • Page 3: Product Overview

    1. Product Overview 1-1 Product Introduction Thank you for choosing our tire-pressure monitoring system, which is composed of sensors and display. The system is used to detect the air pressure and temperature in the tire in real time and send the collected pressure and temperature data to the display by means of radio frequency.

  • Page 4: Product Features

    3. In general, tires have a natural air leaks. The tire pressure will decrease over time, which is normal and has no direct relationship with the installation of this product. 4. If you have any problems with installation, please contact the agent or distributor. 1-4 Trouble Shooting 1.

  • Page 5: Product Composition

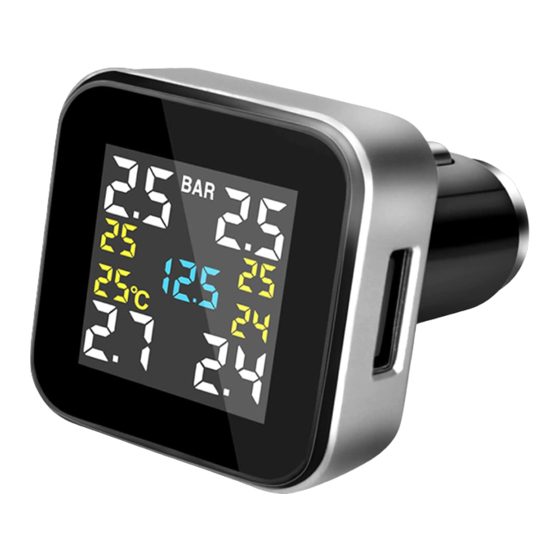

    3. Product Composition 3-1 Display and Function 1.Full-screen display 2.BAR unit is displayed normally 3.PSI unit is displayed normally 4."SET" key 5.USB charging port output current 2A 6.Pressure unit BAR/PSI, for users to choose 7.Temperature unit: °C 3-2 Product Accessories Display Accessories Display (Please refer to the actual product for the actual appearance)

  • Page 6: Installation Guide

    4. Installation Guide 4-1 Display Installation This product is specially designed to be powered by a cigarette lighter. The display is inserted into the cigarette lighter holder. It can be easily installed without affecting the driving sight. When the display is inserted into the cigarette lighter, the power is supplied and the display works normally.
  • Page 7 5-2 Pressure Unit Setting First of all, long press the "SET" button for 3 seconds to enter the display angle setting interface. Then keep on long pressing the "SET" button for 1 second to enter the pressure unit selection interface, you can see the currently selected pressure unit flashes. If you press the "SET"...

  • Page 8: Tire Parameter On Display

    5-5 High Temperature Upper Limit Setting First of all, long press the "SET" button for 3 seconds to enter the display angle setting interface. Then long press the "SET" button for 1 second again to enter the pressure unit selection interface. Then keep on long pressing the "SET" button for 1 second to enter the high air pressure upper limit setting interface.

  • Page 9: High Pressure Alarm

    7-1 High Pressure Alarm For example, when the left front tire pressure value is 3.1BAR, the display will show information as shown in the figure and an alarm sound prompts. 7-2 Low Pressure Alarm For example, when the left front tire pressure value is 1.9BAR, the display will show information as shown in the figure and the alarm sound prompts.

  • Page 10: Sensor Low Voltage Alarm

    7-5 Sensor Low Voltage Alarm On the display, when the corresponding tire pressure number changes to "Lo", and at the same time, the "Lo" and low battery icons flash, the alarm sound prompts. Press the "SET" key to cancel the alarm sound. For example, when the sensor voltage of the left front tire is too low, the sensor low voltage alarm diagram is as follows.

  • Page 11: Technical Parameters

    Then if you short press the "SET" button once, the middle value is added to indicate the change in tire position. Then you should install the sensor on the tire valve. When the monitor receives sensor information, the buzzer will sound once and the ID code will change to the ID code of the current sensor and flash in the screen (You can refer to the second picture below), which indicates that the code is paired successfully.

  • Page 12: The Disclaimers

    10. Disclaimer 1. Please use this product correctly and within the allowed range. If it is beyond the scope of use, the company will not bear all the consequences. 2. The installation shall be guided in strict accordance with the instruction manual. If the installation is not carried out in accordance with the instruction manual, our company will not bear the responsibility or give any explanation.
  • Page 13 Tymate. --- IF YOU ENCOUNTERED ANY OTHER PROBLEM --- Please don't hesitate to contact < tymate@afterservice.vip> or call <+1(855)492-9277>. It’s also a good choice to contact us by after-sales service official https://tymate.afterservice.vip.
