Quick Check 2D Print
Quality Assessment

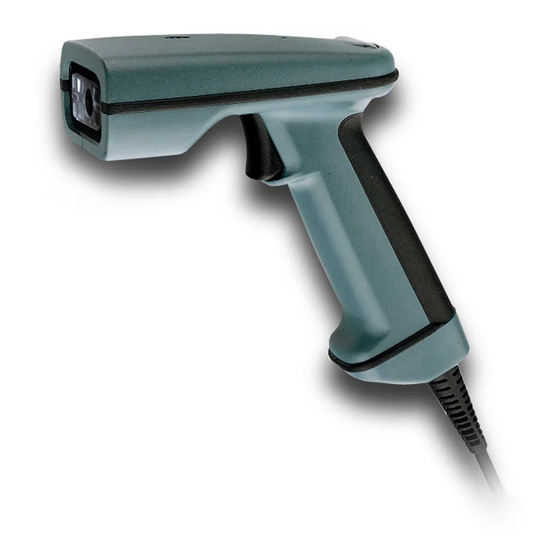

Applies to the following products:
4410, 4710, 4600g, 4800i
™
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4410 and is the answer not in the manual?

Questions and answers

Related Manuals for Hand Held Products 4410

Summary of Contents for Hand Held Products 4410

  • Page 1 Quick Check 2D Print Quality Assessment Applies to the following products: 4410, 4710, 4600g, 4800i ™ User’s Guide...
  • Page 2 Hand Held Products. Hand Held Products shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 - Introduction User Operation... 1-1 Reading Techniques... 1-1 Symbology/Parameter Specifics... 1-2 2D PQA Reporting ... 1-3 Full Report ... 1-3 Screening Report... 1-3 Identifying Symbol Content... 1-4 2D Stacked / Multi-row ... 1-5 PDF417 ... 1-5 MicroPDF417...
  • Page 4 Parameter Interpretation ... 1-16 Average Bar/Gap Width... 1-16 Average (Bar) Height/Extension Height... 1-16 Bar Sequence... 1-16 Codeword (Data and Check)... 1-16 Codeword Yield ... 1-16 Data Safety Margin ... 1-17 Edge Accuracy ... 1-17 Encoded Message... 1-17 Error Correction/Error Correction Characters ... 1-17 Error Correction Level (ECL)...

  • Page 5: User Operation

    • 4410/4710: Hold the imager 5.0 in (12.7 cm) for LR models, 2.0 in (5.1 cm) for the HD, and 7.0 in (17.8 cm) for the LX from the bar code symbol. This distance is measured from the imager's front window to the reading surface.

  • Page 6: Symbology/Parameter Specifics

    be held several degrees below the normal position to avoid specular reflections. • When testing, attempt to minimize as much movement of the imager as possible. Excessive movement can cause variability in PQA results. • It is best to take multiple reads of the symbol, comparing the PQA results to form a better indication of the overall symbol quality.

  • Page 7: 2D Pqa Reporting

    2D PQA Reporting Full Report Hand Held Products 2D PQA reporting can be enabled in two different modes: Full Report or Screening. If you are using Quick*View, you can enable Full Report, a listing of all of a symbol's identifying information, measurements, and corresponding grades, by...

  • Page 8: Identifying Symbol Content

    (with slight variations based upon the symbology being tested): This is a representative PDF417 symbol >>> PQA from Hand Held Products <<< PDF417: 11 rows x 3 cols, 25 data & 8 chks (ECL = 2) X roughly = 0.014"...

  • Page 9: 2D Stacked / Multi-Row

    While the details are explained below, this general format includes: • the encoded data (the usual output message) in the first line. • a banner " >>> PQA from Hand Held Products <<<" identifying the start of the 2D PQA report.
  • Page 10 X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to {5} lists the average Row Height, assigning the grades as: if Row Height >= 2.5 X...
  • Page 11 {7} lists the Data Safety Margin, which is the ratio of the unused error correc- tion words to the recommended (!) number of such words. Data Safety Mar- gin can exceed 100%, when the ECL is higher than the minimum recommended, or be limited to 50% or lower, even with perfect printing, when the ECL is below minimum.

  • Page 12: Micropdf417

    X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to {5} lists the average Row Height, assigning the grades as: if Row Height >= 1.5 X,...

  • Page 13: 2D Matrix

    X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to...

  • Page 14: Data Matrix

    {1} This is a representative Data Matrix symbol >>> PQA from Hand Held Products <<< {3} DATA MATRIX ECC200: 24 x 24 modules in size {4} Data Field: 36 data & 24 chks in 1 block(s) of GF(256) {5} X roughly = 0.025"...

  • Page 15: Qr Code

    X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to {6} lists the number of Module Errors in the Fixed Patterns, which consist of the Finder "L"...

  • Page 16: Maxicode

    X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to {7} lists the Data Safety Margin.

  • Page 17: Postal (Height-Modulated) Bar Code Symbologies

    X-dimension. Conversely, if you hold the reader farther away than 4.7 in (12 cm), it will have the effect of reporting a smaller than true X-dimension. Please contact Hand Held Products Application Support for additional information. Refer to {5} lists the Data Safety Margin.

  • Page 18: 4-State Codes

    The Full Report from a typical scan looks like the following (line numbers have been added in curly brackets): {1} B15AJ6T >>> PQA from Hand Held Products <<< {3} 4-STATE(British): 34 Bars, nominally from 38.5 to 42.3 mm. in Width {4} Bar Sequence: ADHTATDAHDDAADADAADTHTADHHDATHTADH {5} [A] (Ok) <...
  • Page 19 {3} identifies the Symbology, 4-STATE (British, or KIX, Canadian, Japanese, or Australian), and also lists this symbol's size and allowed range of mea- sured width. {4} lists the Bar Sequence, "A" representing Ascending bars, "D" representing Descending bars, "T" representing Tracker (short) bars, and "H" represent- ing tall bars that both ascend and descend.

  • Page 20: Parameter Interpretation

    Parameter Interpretation Average Bar/Gap Width Average Bar or Inter-Bar Gap Widths are the average of such dimensions measured across an entire postal symbology. A low average bar width or inter- bar gap width grade indicates print conditions that expand or shrink the apparent size of the dark elements, threatening to make the narrow bars or spaces disappear.

  • Page 21: Data Safety Margin

    Data Safety Margin Data Safety Margin is the ratio of the unused error correction codewords to the recommended number of error correction codewords. A low Data Safety Margin indicates a symbol that is close to reading failure and can be improved by improving the printing, correcting the cause of bad or missing symbol characters (e.g., spots, voids), or by raising the Error Correction Level (ECL).

  • Page 22: Mask Pattern/Masking

    Mask Pattern/Masking Mask Pattern/Masking is a specific part or characteristic of QR Code where a process is used to provide a more evenly balanced number of light and dark modules to reduce the occurrence of arrangements of adjoining modules that might interfere with efficient processing of a symbol's image.

  • Page 23: Useful Row Height

    Useful Row Height Useful Row Height is the measured Row Height times the Codeword Yield. A low Useful Row Height usually indicates print conditions where rows interfere with their adjacent neighboring rows, creating a dead band of wasted scanning in between. Useful row height scales these interfering rows to the printed row height, giving more leeway to symbols printed with above minimum row heights (e.g., 4.0 X).
  • Page 24 1 - 20...

  • Page 25: Chapter 2 - Quick*View

    6. To start the Quick*View program, from the Start Menu click on Programs, Quickview, QuickView (32 Bit). Installing Quick*View from the Web 7. Access the Hand Held Products web site at www.handheld.com. 8. Click in the Quick Search text box and enter Quick*View. 9. Click on Search Now.

  • Page 26: Temporary Quick*View Configuration

    The unit will communicate in RS-232 mode, allowing it to work with Quick*View through an appropriate serial cable. To convert the imager back to keyboard wedge communication, cycle the power. 4600g/4800i 4410/4710 (all three bar codes must be used in sequence) 2 - 2 Quick*View...

  • Page 27: Using The Quick*View Software

    Using the Quick*View Software Upon startup, the Quick*View splash screen appears for approximately three seconds. Quick*View will then attempt to establish communications with the Imager. If Communication Cannot Be Established This message appears if communication cannot be established: Quick*View defaults to com 1 as the communications port. If you have plugged the Imager into another com port, you must Cancel out of this message.

  • Page 28: Scan Data Window

    Scan Data Window Once successful communication has been established, you can scan codes and display the bar code data in a window. Select View - Scan Data Window. As you scan bar codes, the data appears in the Serial Scan Data Window. You can alter the font in this window by using the Font button, or clear all data in the window with the Clear button.

  • Page 29: Chapter 3 - Customer Support

    Hand Held Products provides service for all its products through service centers throughout the world. To obtain warranty or non-warranty service, return the unit to Hand Held Products (postage paid) with a copy of the dated purchase record attached. Contact the appropriate location below to obtain a Return Material Authorization number (RMA #) before returning the product.

  • Page 30: Online Product Service And Repair Assistance

    Technical Assistance If you need assistance installing or troubleshooting, please call your Distributor or the nearest Hand Held Products technical support office: North America/Canada Telephone: (800) 782-4263, option 4 (8 a.m. to 6 p.m. EST) Fax number: (315) 685-4960 E-mail: natechsupport@handheld.com...

  • Page 31: Online Technical Assistance

    Online Technical Assistance You can also access technical assistance online at www.handheld.com. 3 - 3...
  • Page 32 3 - 4...
  • Page 34 Hand Held Products, Inc. 700 Visions Drive P.O. Box 208 Skaneateles Falls, NY 13153-0208 QC2DPQA-UG Rev D 09/06...
