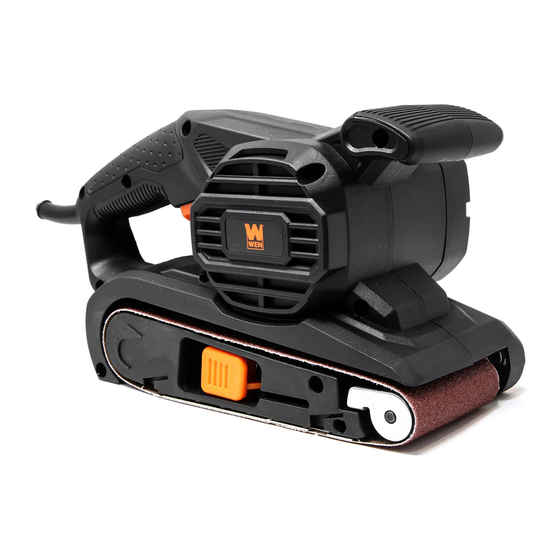

MODEL HB6319, HB632V
3" x 18"
HANDHELD BELT SANDER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Related Manuals for Wen HB6319
Summary of Contents for Wen HB6319
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Belt Sander Safety Warnings ................6 Electrical Information ..................8 BEFORE OPERATING Unpacking & Packing List .................9 Know Your Belt Sander .................. 10 Assembly & Adjustments ................11 OPERATION &... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Belt Sander. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Belt Sander Safety Warnings
BELT SANDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. WARNING! EXTREME CAUTION REQUIRED WHEN SANDING PAINT. The dust residue may contain LEAD, which is poisonous. Exposure to even low levels of lead can cause irreversible brain and nervous system dam- age, to which young and unborn children are particularly vulnerable. - Page 7 BELT SANDER SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. 11. Unplug Your Sander. Ensure that the sander is 2. Never place your hand near the rotating acces- disconnected from the main supply before servicing, sory.
-
Page 8: Electrical Information
ELECTRICAL INFORMATION DOUBLE-INSULATED CHARGER The tool’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal components with protecting insulation. -
Page 9: Before Operating
UNPACKING & PACKING LIST UNPACKING Carefully remove the belt sander from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and accessories. -
Page 10: Know Your Belt Sander
TOOL PURPOSE Easily shape and finish wood and other materials with your WEN Handheld Belt Sander. Refer to the following dia- grams to become familiarized with all the parts and controls of your tool. The components will be referred to later in the manual for assembly and operation instructions. -
Page 11: Assembly & Adjustments
Also refer to the table to select the suitable op- erating speed setting for your intended use (for model HB632V only). Model HB6319 is a single-speed model; you cannot change its speed. - Page 12 ASSEMBLY & ADJUSTMENTS DUST COLLECTION The dust produced by sanding can be hazardous to your health. Always wear a dust mask and operate the tool in a well-ventilated area. This sander comes with a dust collection bag. Before operating the sander, make sure to install the dust bag, or connect the tool to a suitable dust extraction system.
-
Page 13: Operation & Maintenance
SERVICE Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and com- ponents, possibly causing a serious hazard. Call WEN customer service line at 1-800-232-1195 for product support. CLEANING Ventilation openings and switch levers must be kept clean and free of foreign matter. The tool may be cleaned most effectively with compressed dry air. - Page 14 MAINTENANCE NOTE: Follow instructions on page 10 under “Installing or Replacing the Sanding Belt” to regularly change the sand- ing belt, for optimal safety and quality of sanding. NOTE: Follow instructions on page 11 under “Dust Extraction with Dust Bag” to regularly empty the contents of the dust bag.
-
Page 15: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST MODEL HB6319 NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty. - Page 16 EXPLODED VIEW & PARTS LIST MODEL HB6319 Part No. Description Qty. Part No. Description Qty. Power Cord Self-tapping Screw, ST4x16 Cord Sleeve Bearing Cover Self-tapping Screw, ST4x16 Bearing 608-RS Cord Clamp Left Housing Switch Self-tapping Screw, ST4x30 Support Bracket Self-tapping Screw,...
- Page 17 EXPLODED VIEW & PARTS LIST MODEL HB632V NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
- Page 18 Gear Assembly Spring 6318-068 Sanding Belt, 80-grit Belt Housing HB6319-071 Dust Bag Assembly Self-tapping Screw, ST3x16 NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
-
Page 19: Warranty Statement
WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use. - Page 20 THANKS FOR REMEMBERING V. 2021.07.09...
