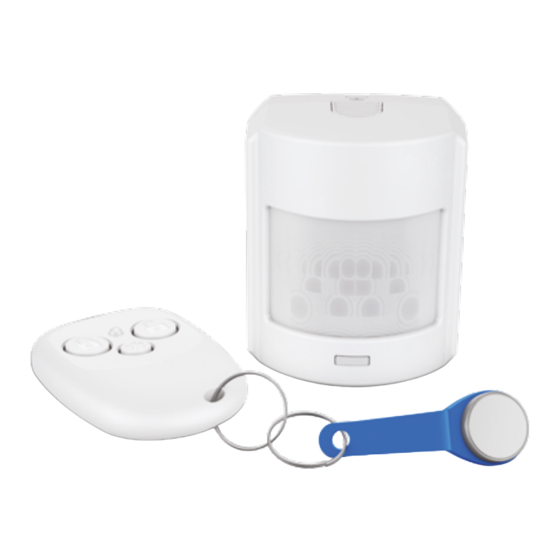

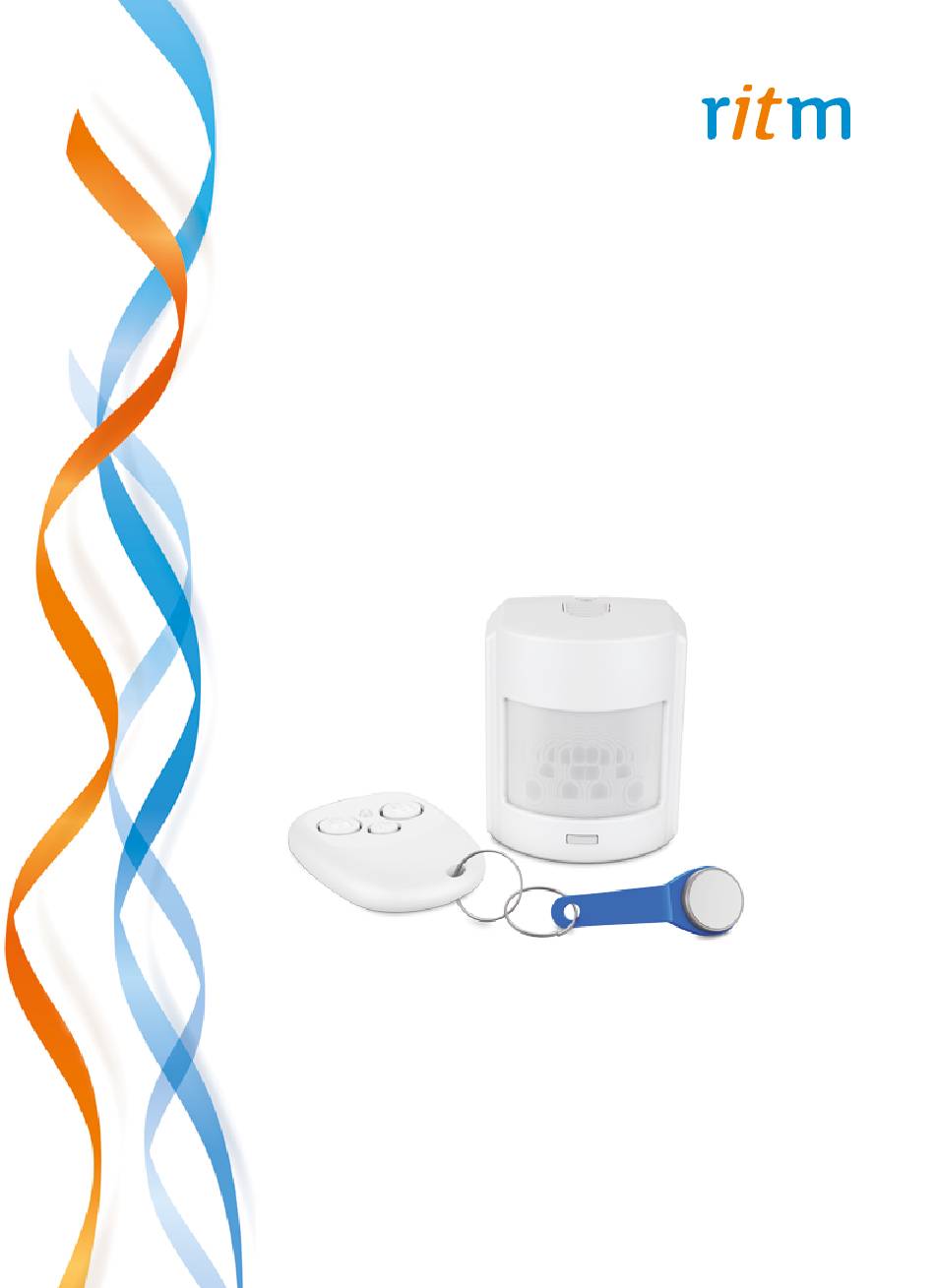

- Page 1 Contact GSM-2 Quick start guide Saint Petersburg, 2016...
- Page 2 • Put the SIM-card into the SIM slot (XS1). If you need, connect the Touch Memory reader (XT3), additional alarm cable (TX2) and external siren (TX4) according to the Data sheet of Contact GSM-2. • Put the battery inside, according to the Data sheet of Contact GSM-2.
- Page 3 Contact GSM-2. Quick start guide. Download the software • Go to our website www.ritm.ru, in the right top corner you can choose the english language. • Then go to “Downloads”. • Open the “Сommon software for the set-up of all of Ritm’s devices”,...
- Page 4 Contact GSM-2. Quick start guide. Install the software Unzip archive Drivers, and Install the downloaded Driver (Drivers\CP210x_VCP\CP210x_VCPInstaller_x64 or Drivers\ CP210x_VCP\CP210x_VCPInstaller_x32), depending on the version of your operating system: • Accept the agreement, click next. Also, you will need to install driver of virtual com port (from \Drivers\ST_VCP\VCP_V1.3.1_setup, or \Drivers\ST_VCP\...
- Page 5 Check the connection of the device to your PC Open the PC manager. Click on the Device Manager and look at COM ports. Port for RITM USB is called “Silicon labs CP210x USB to UART Bridge (COM4)”. Please remember the number of your com port, it will be important in the future.
- Page 6 Contact GSM-2. Quick start guide. Open the configuration wizard Run the downloaded configuration program from the file, it will look like this: In the right bottom corner you can choose the language. After that, for the first time, it may be neccessary to download the latest version of the software.
- Page 7 Contact GSM-2. Quick start guide. Configure your device After the sucessful connection you will see this page. If you have an item “Available update”(red color), you should click on it. Then click on “start updating”, you will see updating progress.
- Page 8 Contact GSM-2. Quick start guide. Next step, you have to go to Device details, where you can find general information about your Contact GSM-2. Here you can see the GSM signal level and the battery level. If the level is not good, your device may not function properly.
- Page 9 Contact GSM-2. Quick start guide. Next step you should configure system events. It is very important in this device. When you change some settings, you have to click on “Save changes” before you leave the current page! www.ritm.ru/en...
- Page 10 Contact GSM-2. Quick start guide. Open the “Sensor” section. Here you can configure the main PIR sensor in your device. You can also configure the Energy saving in the “Energy saving” section. www.ritm.ru/en...
- Page 11 Contact GSM-2. Quick start guide. Next step, you should add keyfobs to your device. Click on any button on the keyfob, and hold it untill you hear the sound signal from your device. You can see your added keyfobs in the “Keyfobs”...
- Page 12 Contact GSM-2. Quick start guide. If you use the Touch Memory, you have to add the Touch Memory keys to your device. Hold a key and press it to a Touch Memory reader, wait for a sound signal from the device; your key will be added automatically.
- Page 13 Contact GSM-2. Quick start guide. Now, you should go to “Notification” section and add phone numbers. The device will send the SMS or call your numbers. You should configure your GPRS settings, for an automatic time synchronization. Go to the “GPRS parameters” section, and fill it according to your own settings.
