- Page 1 Radio channel panic button RBR1-L 868 MHz Data sheet Device ID...

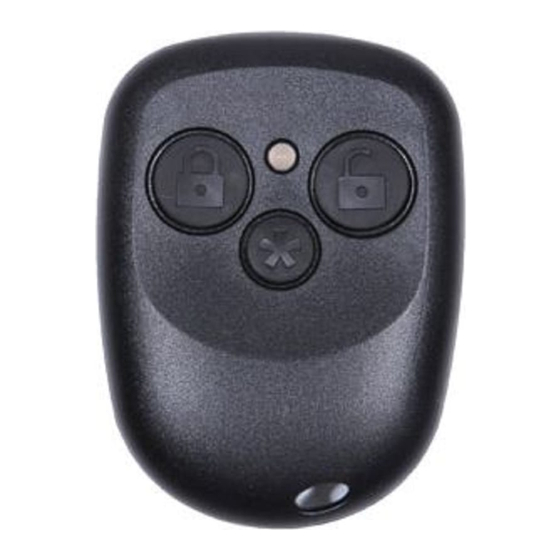

- Page 2 1. Overview The radio channel panic button RBR1-L (hereinafter referred to as panic button) is designed for generating an alarm event on button pressing and transmitting it to the radio channel receiver RDK-L 868 MHz. When the radio channel receiver RDK-L receives the alarm event, the state of the appropriate receiver output changes.
- Page 3 4. Technical specifications Parameter Value Frequency range, MHz 868.7-869.2 Maximum receiver emitting power, mW Alarm message delivery acknowledgement Restrained urban conditions Medium urban conditions Maximum range of stable communication, m, up to Open territory 2000 Line-of-sight range 3000 Single battery operation, number of button pressings, minimum Power supply voltage (battery CR2032), V Standby mode 0.040...
- Page 4 5. Unit designation CR2032 – Enclosure Enclosure Board Front view Rear view Unit Designation Small strap fixing. Operation mode indicator (VD1). Screw hole for enclosure fixing. Panic button SA1. Panic button SA2. Panic button SA3. Connector for battery CR2032 installing. The command running if buttons SA1, SA2 and SA3 are pressed, is set in the section “Outputs”...
- Page 5 RDK-L configuration software. Detailed information about interoperation with the radio channel receiver RDK-L see in the Receiver operating manual available on the official website www.ritm.ru/en. Maintenance On a regular basis but at least twice a year check safety of contacts and if necessary dress bonding pads.
- Page 6 12. Manufacturer warranty The manufacturer warrants conformity of the button to the specification requirements provided the transportation, storage, mounting and operation conditions are observed by the consumer. Warranty operating life — 12 months from the date of commissioning, but no more than 18 months from the date of manufacture.
- Page 7 Notes...
- Page 8 Notes Data sheet date 22.04.2019...
