Page 1: Quick Start Guide

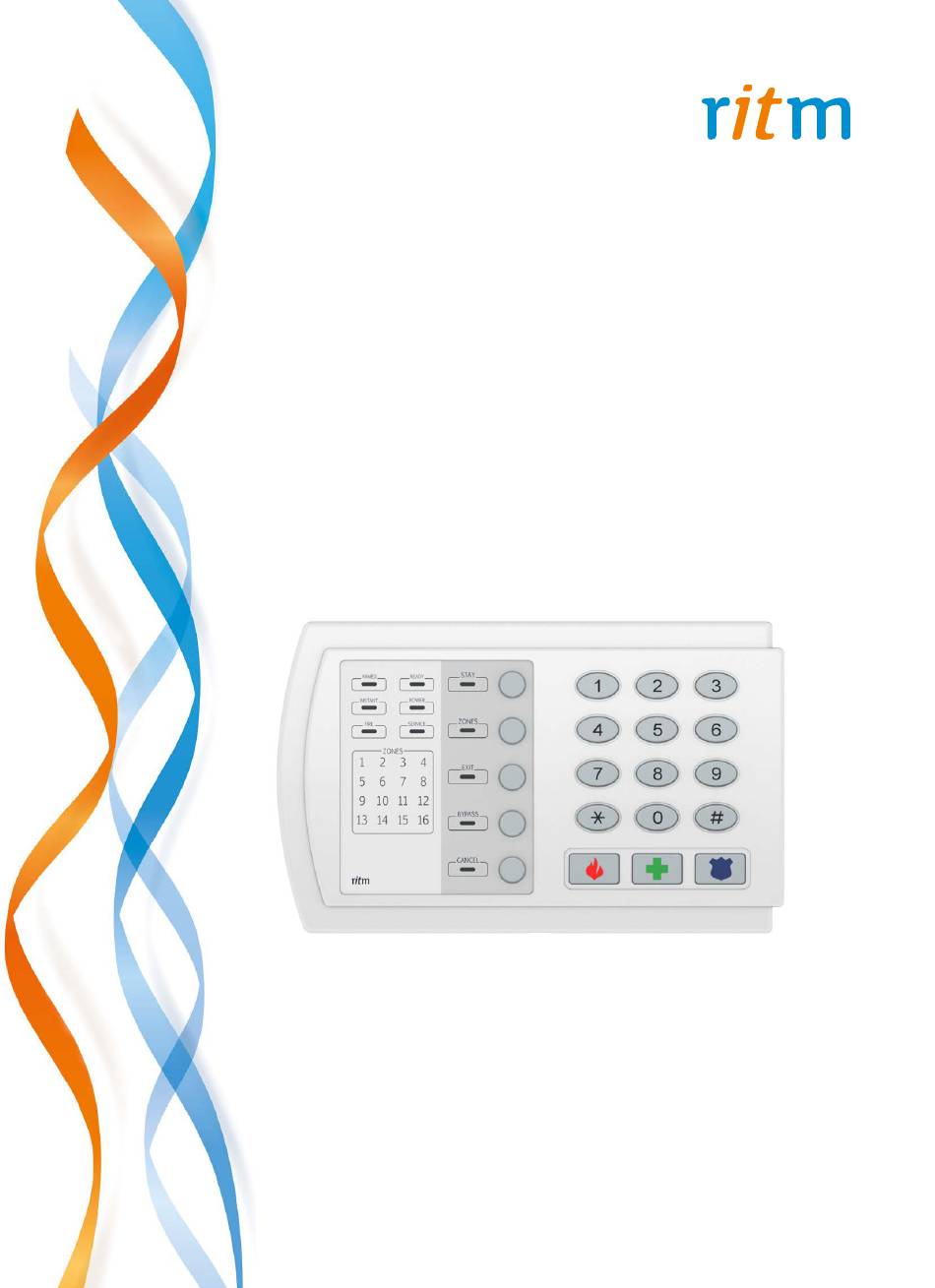

Contact GSM-9N Quick start guide Ver. 1.0 Saint Petersburg, 2017... -
Page 2: Prepare Your Device
Contact GSM-9N. Quick start guide. Prepare your device Prepare your device for connection according to the Data sheet. • Open the lid. • Connect your device to 12 V power supply. • Put your SIM cards into the SIM slots. Please make sure, that your SIM Card does not require a password. - Page 3 Online Configuration The easiest and the fastest way to configure the device is via Online Configuration. Go to www.eu.ritm.ru. You can choose the language in the upper right corner. Click the “Registration” link to sign up. Fill out the registration form.
- Page 4 Click on the button “Open Monitoring interface”. You can select “Run Object Add Wizard automatically”, or open this wizard later. Now you should see the main page of GEO.RITM interface. www.ritm.ru/en...
- Page 5 Contact GSM-9N. Quick start guide. If you didn’t open the “Add Object Wizard” yet, you can click on “plus” button. And add a group and an object. You will see this page. Just click “Next”. www.ritm.ru/en...
- Page 6 Contact GSM-9N. Quick start guide. Here you should put the IMEI of your device. You can find it out from the Data sheet of your device, or written on the modem in your device. Click “Next”. www.ritm.ru/en...
- Page 7 Contact GSM-9N. Quick start guide. Click “Next“. If you see this page, the server now identified your Contact GSM-9N. Click “Next”. www.ritm.ru/en...
- Page 8 You can choose an existing group, or add a new one right here. After that click “Next”. Your Contact GSM-9N is ready to work. You can give Coordinates, or Address to your device, and you will see it on the map.
- Page 9 Contact GSM-9N. Quick start guide. You can click on the image of your Contact GSM-9N on the map and see the events, general report and object’s card (you can open it from the left menu as well). When you will open object’s card, you can choose the “Equipment”...
- Page 10 Contact GSM-9N. Quick start guide. Configure your device After the successful connection you will see this page. If you have an item Available update (red color), you should click on it. Then click on “start updating”, you will see updating progress.
- Page 11 Set-up via USB-cable The alternative way to set-up your device is via the USB-cable. Prepare your device for set-up: • Connect the Contact GSM-9N to your PC via the MicroUSB cabel. Download the software • Go to our website www.ritm.ru, in the right top corner you can choose the English language.
- Page 12 Contact GSM-9N. Quick start guide. Install the software Unzip archive Drivers, and Install the downloaded Driver (Drivers\CP210x_VCP\CP210x_VCPInstaller_x64 or Drivers\ CP210x_VCP\CP210x_VCPInstaller_x32), depending on the version of your operating system: • Accept the agreement, click “Next”. • Click “Finish”. www.ritm.ru/en...
- Page 13 Contact GSM-9N. Quick start guide. Also, you will need to install driver of virtual COM port (from \ Drivers\ST_VCP\VCP_V1.3.1_setup, or \Drivers\ST_VCP\VCP_ V1.3.1_setup_x64), depending on your operating system: • Same steps: click next, and finish. www.ritm.ru/en...
- Page 14 Contact GSM-9N. Quick start guide. Check the connection of the device to your PC Open the PC manager. Click on the Device Manager and look at COM ports. Port for RITM USB is called “Silicon labs CP210x USB to UART Bridge (COM4)”. www.ritm.ru/en...
- Page 15 Contact GSM-9N. Quick start guide. Please remember the number of your COM port, it will be important in the future. The number of your COM port may vary from that shown in the illustration. Open the configuration wizard Run the downloaded configuration program from the file, it will look like this: In the right bottom corner you can choose the language.
- Page 16 Contact GSM-9N. Here you can change the number of the object. Also, here you can find the IMEI of your Contact GSM-9N, and check the registration in GSM network. If you have bad reception conditions of GSM, or SIM card doesn’t work, you will see, that SIM is “not defined”.
- Page 17 Contact GSM-9N. Quick start guide. You can find out the settings from your GSM provider. Make sure, there is no tick on “Specify APN configuration automatically”. Here you have two connection channels. To configure the first channel, type: • into the boxes of “Main IP address, server port and password”...
- Page 18 Contact GSM-9N. Quick start guide. Now go to the Communication channels settings. Just click on “Turn on GPRS(TCP/IP) via SIM 1”, if you put your SIM card into slot # 1 or “Turn on GPRS(TCP/IP) via SIM 2”, if you put your SIM card into the slot # 2.
- Page 19 Contact GSM-9N. Quick start guide. Change History Revision Revision date Description 28.03.2017 Full revision of document www.ritm.ru/en...
