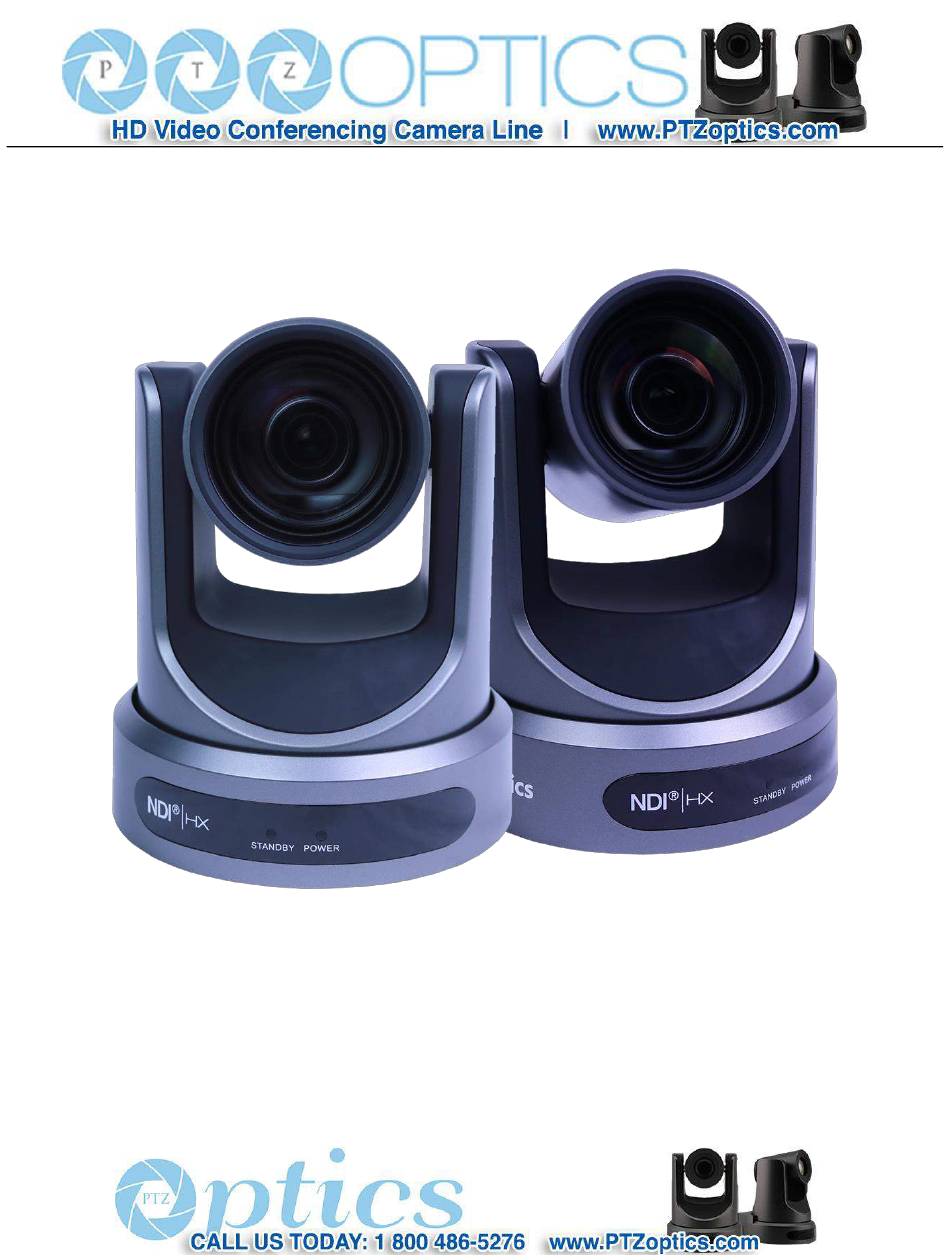

PTZOptics 12x NDI|HX User Manual Model Nos: PT12X-NDI-GY & PT12X-NDI-WH V1.0 (English) Please check PTZOPTICS.com for the most up to date version of this document Rev 1.0 1/18...
Page 2
Preface Thank you for using the HD Professional Video Conferencing Camera. This manual introduces the function, installation and operation of the HD camera. Prior to installation and usage, please read the manual thoroughly. Precautions This product can only be used in the specified conditions in order to avoid any damage to the camera: •...
Supplied Accessories When you unpack your camera, check that all the supplied accessories are included: Camera ........ 1 AC Power Adaptor ....1 Power Cord ......1 RS232 Cable ......1 IR Remote Controller ... 1 ...
Quick Start Step 1. Please check that all connections are correct before powering on the camera. Page 2 of 53 Rev 1.0 1/18...
Page 6
Step 2. Set the system select switch for your desired video output resolution and frame rate. For many applications, setting 0 (1080p-60) will provide the best overall performance. For highest possible resolution, use setting 0 (1080p-60) or 6 (1080p-30), however your actual realized frame rate may be limited to a lower value than 60 fps by your software, hardware, and/or network connection.
Features 1. Supports simultaneous NDI | HX, 3G-SDI, HDMI and IP network streaming for up to 1080P@60. 2. Supports non-simultaneous CVBS (composite video) output via RCA connector (480i or 576i). 3. Includes Panasonic's high quality, 1/2.7 inch, 2.07 million effective pixels, HD CMOS sensor, which can produce a maximum 1920 x 1080 image with a high quality, maximum output frame rate of 60 fps (frames per second).
Product Specifications Model PT12X-NDI-GY and PT12X-NDI-WH Type PTZ Optics NDI | HX HD 1080p Color Video Camera Features 1080p/60, 1080p/50, 1080i/60,1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 Video System CVBS: 480i, 576i Sensor Panasonic 1/2.7", CMOS, Total Pixels: 2.12M, Effective Pixels: 2.07M...
Page 9
1x CVBS: 3.5mm jack, 1Vp-p, 75Ω (requires adapter cable to connect to standard RCA input) SD Output Network Interface and Output 1x RJ45: 10M/100M/1000M Adaptive Ethernet port Audio Input 1-ch 3.5mm audio interface, LINE IN (embedded on IP Stream, NDI | HX feed & HDMI only) 1x RS-232 In: 8pin Mini-DIN, Max Distance: 30m, Protocols: VISCA/Pelco-D/Pelco-P 1x RS-232 Out (pass-through): 8pin Mini-DIN, Max Distance: 30m Control Input / Output...
Main Unit 1. Audio LINE IN Interface (NDI|HX, HDMI, IP) 7. Network (NDI|HX, IP streaming, and control) 2. CVBS (composite video SD) Interface 8. HDMI 1.3 (Digital Video Output) 3. System select dial (resolution) 9. 3G-SDI (Serial Digital Video Output) 4.
IR Remote Controller 1. Standby Button Press this button to enter standby mode. Press it again to enter normal mode. NOTE: Power consumption in standby mode is approximately half of the normal mode. 2. Position Buttons To set preset or call preset. 3.
Page 12
12. Multiple Function Buttons Function 1. Set camera IR address Press 3 keys contiguously can set camera IR address as follow: [*] + [#] + [F1]: Address 1 [*] + [#] + [F2]: Address 2 [*] + [#] + [F3]: Address 3 [*] + [#] + [F4]: Address 4 Function 2.
Using the IR Remote Controller When the camera is operational, you can use the remote controller to perform panning, tilting, zooming and focusing, as well as store and call back preset positions. Button Instructions: 1. In these instructions, ‘press the button’ means to Zoom Out: press [+] button under FAST or SLOW press and release.
Page 14
4. BACKLIGHT. L/R SET and P/T RST Controls Reverse Pan controls direction: Press and hold [L/R SET] button while pressing [1] aka [STD] button for normal pan controls. Press and hold [L/R SET] button while pressing [2] aka [REV] button for reversed pan controls. Backlight Compensation Control: Press [BACKLIGHT] button to enable backlight compensation.
Page 15
7. Recalling Presets Press 3 buttons in the sequence shown below to set/change the camera’s IR address. This allows up to 4 cameras to be controlled from the same IR remote control. Be sure that only one camera is picking up the IR signal when you perform this function.
RS-232 Interface Camera PC/Controller DB-9 1.DTR 1.CD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI For Control Daisy Chain Camera Camera Mini DIN Function 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND...
Serial Communication Control In default working mode, the camera is able to connect to a VISCA controller with an RS232C serial interface. ➢ RS232 Communication Control The camera can be controlled via RS232. The parameters of RS232C are as follows: Baud rate: 2400, 4800 or 9600 bps.
Page 19
VISCA Command List Part 1: Camera-Issued Messages ACK/Completion Message Function Command Command Packet Comments z0 4y FF Returned when the command is accepted. ACK/Completion (y: Socket No.) Messages z0 5y FF Completion Returned when the command has been executed. (y: Socket No.) z = Camera Address + 8 Error Messages Function...
Menu Settings 1. MENU EXPOSURE Press the [MENU] button to display the main menu on the Mode Auto screen. Use the arrow button to move the cursor to the ExpCompMode item to be set. Press the [HOME] button to enter the Backlight corresponding sub-menu.
Page 31
DRC: Dynamic Range Control Strength, Optional items: RG: Red gain. Optional items: 0~255(Effective only in 0 ~ 8. Manual mode) Bright: Intensity control, Optional items: 00~17. BG: Blue gain. Optional items: 0~255 (Effective only in Bright mode) (Effective only in Manual mode) Iris: Aperture value.
Page 33
D-HotPixel: Dynamic bad points, Optional items: Off, V_AddrFix: Lock IR Address from changing via serial 1 ~ 5 control, Optional items: On, Off(When set to On, 88 30 01 FF Command will not function) Net Mode: Set the serial port control networking, 7.
Network Connection 1. Operating Environment Operating System: Windows 2000/2003/XP/Vista/7/8.1/10 Network Protocol: TCP/IP Client PC: P4/128M RAM/40G HD/ support for scaled graphics card, support for DirectX8.0 or more advanced version. 2. Equipment Installation 1) Connect camera to your network via a CAT5 or CAT6 patch cable or directly to your PC via a CAT5 or CAT6 crossover cable.
Page 35
Picture 1.1 Direct connections via “cross-over” network cable Picture 1.2 Connections to LAN via patch cable to LAN wall jack or LAN switch Page 32 of 53 Rev 1.0 1/18...
Page 36
3. Once you complete the installation and launch the tool “UPGRADE v2.6” you should be able to click the “Search” button to locate all of the available PTZOptics cameras on your network. 4. The next thing you would want to do is change your cameras IP address to be in the same range as your network.
Page 37
Gateway and First DNS) 6. Now that you have set the Static IP address of your PTZOptics camera, you should be able to pull up the video feed in a web browser. We recommend Mozilla Firefox ESR. You can view our...
Page 38
RTSP stream in Wirecast as an example. You’ll see how to use ONVIF to easily set up two (2) PTZOptics cameras with Wirecast, note that the ONVIF feature must be enabled in the “Network” settings for ONVIF discovery to work properly.
Page 39
EXTRAS Discovering your Network IP range. NOTE: Changing your IP address without talking to your network admin could lead to conflicts with your network. If you change your address to one that is already in use it will cause communication problems. If you need to discover the IP address range of your network you can do so by using command prompt for Windows or Terminal for Macs.
Page 41
Camera Web Interface Homepage introduction 1.1 Home Page All pages include two (2) areas: On the left is the menu and camera control On the right is real time monitoring - displaying a live video image and the available settings 1.2 Live Video viewing window Click “Live”...
Page 42
1.3 PTZ Control 1) Pan and Tilt control: Up, Down, Left and Right arrows and the home button allow you to manually drive the camera to the desired position. 2) Zoom: Zoom In and Zoom Out buttons allow for wide or narrow (tele) view of the space.
Page 43
1.4 Language selection Click either “Russian”, “Chinese” or “English” to change the language of the menu. Media 1.1 Video Setup Click "Video". The streaming parameters may now be set in the right side area. The camera can send two (2) simultaneous streams.
Page 44
Video Settings 720p120 Allows camera to output 720p at 120fps via the IP Streaming output only. Set to ‘On’ or ‘Off’. (Note: Setting to ‘On’ will override and lockout other video settings). Video format Supports 50HZ(PAL) and 60HZ(NTSC) and Dial Priority (see rotary dial on camera) formats. 60Hz is used for North America.
Page 45
1.2 Image Setup (Note that changes here will impact your OSD settings) Click “Image”. The image parameters may now be set in the right-side area. Brightness Image brightness 0-14. Use the slider control. The box on the right shows the corresponding numerical value. The Default setting is 7.
Page 46
Flip & Mirror the “Flip” box to invert the image vertically for a ceiling mount. Check the “Mirror” box to invert the Check image horizontally. The default setting is unchecked. Apply, Cancel and Default Buttons After adjusting the parameters, press the "Apply" button to save settings. Press the "Cancel" button to cancel the adjustment of the parameters.
Page 47
1.4 System Settings Click “System”. The system parameters may now be set in the right-side area. Initialize Work Mode: Legacy functionality only Reboot: Click the "Reboot" button to initiate a system restart. This is required after changing most settings. User User and Password: The password(s) can be modified (letters and numbers only).
Page 48
1.5 Network Settings Click “Network”. The network parameters may now be set in the right-side area. LAN Settings IP options for the device can be set here using either static (fixed) or DHCP (dynamic) addressing as available from the drop-down list. The Default IP address of the camera is 192.168.100.88. Please note that after changing the IP settings for the camera, you may not be able to reconnect until your PC is set for and connected to the same subnet or visible via proper network routing.
Page 49
Port Settings While the IP address identifies the device, the camera uses multiple ports for different functions. HTTP Port: This is the port for the web application (the default http port: 80) RTSP Port: The camera supports the RTSP streaming protocol. The default port: 554. PTZ Port: Supports camera control via the TCP protocol.
Page 50
1.6 Device Information Click “Information” Shows the current device information, as shown below. You may change the device ID as required for your application. Note that the Device ID is the friendly name used by NDI to identify your camera. Page 47 of 53 Rev 1.0 1/18...
Page 51
Network Camera Control Protocol 1. Setup camera for IP (first see “Setting up the Camera’s IP” section above) Control Notes: PTZ over TCP/UDP: The camera currently supports various PTZ control methods, including RS232, RS485, IR remote control, web interface, HTTP-CGI and TCP /UDP protocol. The camera includes an internal TCP server.
Page 52
HTTP CGI Control Method: The camera’s integrated web server supports HTTP CGI for PTZ control and more. Page 49 of 53 Rev 1.0 1/18...
Page 53
TCP Protocol Method: The camera’s integrated web server supports TCP for PTZ control. The camera has an internal TCP server. There is a port configured for receiving the connection from a TCP client. The default TCP port number is 5678. When client and server initiate a TCP connection, the client sends PTZ command to the internal server and the server will then parse and execute the PTZ commands.
NDI | HX Setup Guide This process will walk you through setting up your PTZOptics G2 PTZ camera as an NDI | HX source. Please read all instructions prior to attempting your NDI | HX camera upgrade. If you have purchased a NDI model, not an NDI-Ready model, please note that it will not require the licensing portion of this section.
Maintenance and Troubleshooting Camera Maintenance If the camera will not be used for a long time, please turn off the power switch. Use a soft cloth or lotion-free tissue to clean the camera body. Use a soft dry lint-free cloth to clean the lens. If the camera is very dirty, clean it with a diluted neutral detergent. Do not use any type of solvent or harsh detergent, which may damage the surface.
Page 56
VISCA address). Copyright Notice The entire contents of this manual, whose copyright belongs to PTZOptics, may not be cloned, copied or translated in any way without the explicit permission of the company. Product specifications and information referred to in this document are for reference only and as such are subject to updating at any time without prior notice.
