PTZOptics NDI PT12X-NDI-GY Manual

PTZOptics
NDI |HX using NDI
® ®
The PTZOptics 12X-NDI is a 1080p camera with 12X optical zoom f or capturing both wide angles and long shots. With
®
support f or NDI |HX, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal f or broadcasting
high def inition video signals f or broadcast, recording, video conferencing, or live streaming applications.

Key Features

•
72.5° wide-angle lens
•
1920x1080p Full HD Resolutions up to 60 f rames per second
•
High perf ormance in low light scenarios with Wide Dynamic Range
•
2D and 3D noise reduction with our latest "low noise CMOS sensor"
•
Simultaneous HDMI, 3G-SDI, & NDI
•
H.264, H.265, or MJPEG compression when IP streaming
•
®
Support f or NDI Discover Server
•
Photobooth capable
•
Custumizable Presets – PTZ Motion Sync or Image Freeze
•
PTZOptics VISCA (RS232 / RS485), PTZOptics VISCA over IP (TCP/IP / UDP), & NDI
•
PoE (Power over Ethernet) or 12V DC power supply
Camera & Lens
Video Sensor
Frame Rates (HD)
Frame Rates (SD)
Focal Length
Min Lux
Shutter Speed
SNR
Horizontal Field of View
Vertical Field of View
*Broadcast framerates are considered BETA and may not work on all platforms
**720p-120 is only available over NDI|HX / IP streaming
Pan & Tilt Movement
Pan Rotation
Tilt Movement
Presets
4 Broadcast & Streaming Camera
®
|HX using NDI
1/2.7" CMOS, 2.12 Mega Pixel
1080p-60/50/30/25/59.94*/29.97*
1080i-60/50/59.94*
720p-120**/60/50/30/25/59.94*
576i-30 480i-30
12X, F3.5mm-42.3mm, F1.8-F2.8
0.05 Lux (@F1.8, AGC ON)
1/30s – 1/10000s
≥55dB
6.9° (tele) ~ 72.5° (wide)
3.9° (tele) ~ 44.8° (wide)
±170
Up: 90°, Down 30°
10 via IR (255 via Serial or IP)
®
4 / IP streaming

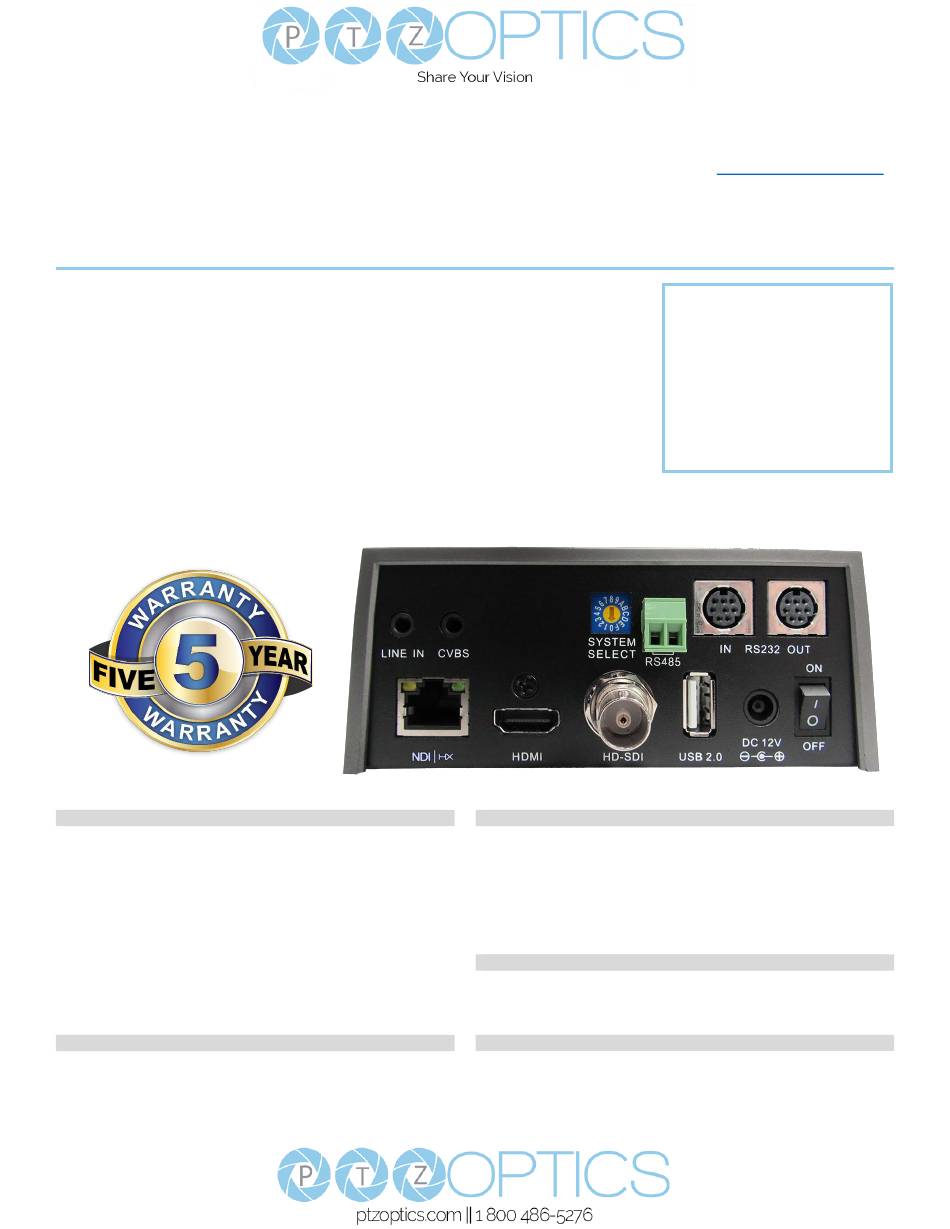

Camera Connection

Video Outputs NDI
Audio Interface Line in, 3.5mm (Unbalanced Stereo)
Network Interface RJ45 10/100/1000 Ethernet port
HDMI Interface HDMI ver. 1.3
SDI Interface BNC Female
Control Interfaces RS-232, RS-485, Pelco-D/P, IR, NDIv4
Power Supply Interface JEITA type Power Adapter
Power Specifications
Power Supply 12W (Max)
12V DC (10.8 – 13.0V DC) or PoE 802.3af*
Input Voltage
*Do not power over DC & PoE simultaneously!

Physical Specifications

Dimensions W x D x H
Dimensions W x D x H
Camera Weight
Model Number:
PT12X-NDI-GY (Gray)
PT12X-NDI-WH (White)
http://ptzoptics.com/ndi/
What's in the Box
12X Zoom NDI|HX Camera
Power Adapter + Cord
IR Remote Control
RS-232C Cable
Quick Start Guide
(2) AAA Batteries
®
4 control
®
|HX, HDMI, , 3G-SDI, IP, CVBS,VISCA
5.6" x 7.88" x 6.5"
142mm x 169mm x 164mm
3.2 lbs (1.45 kg)
