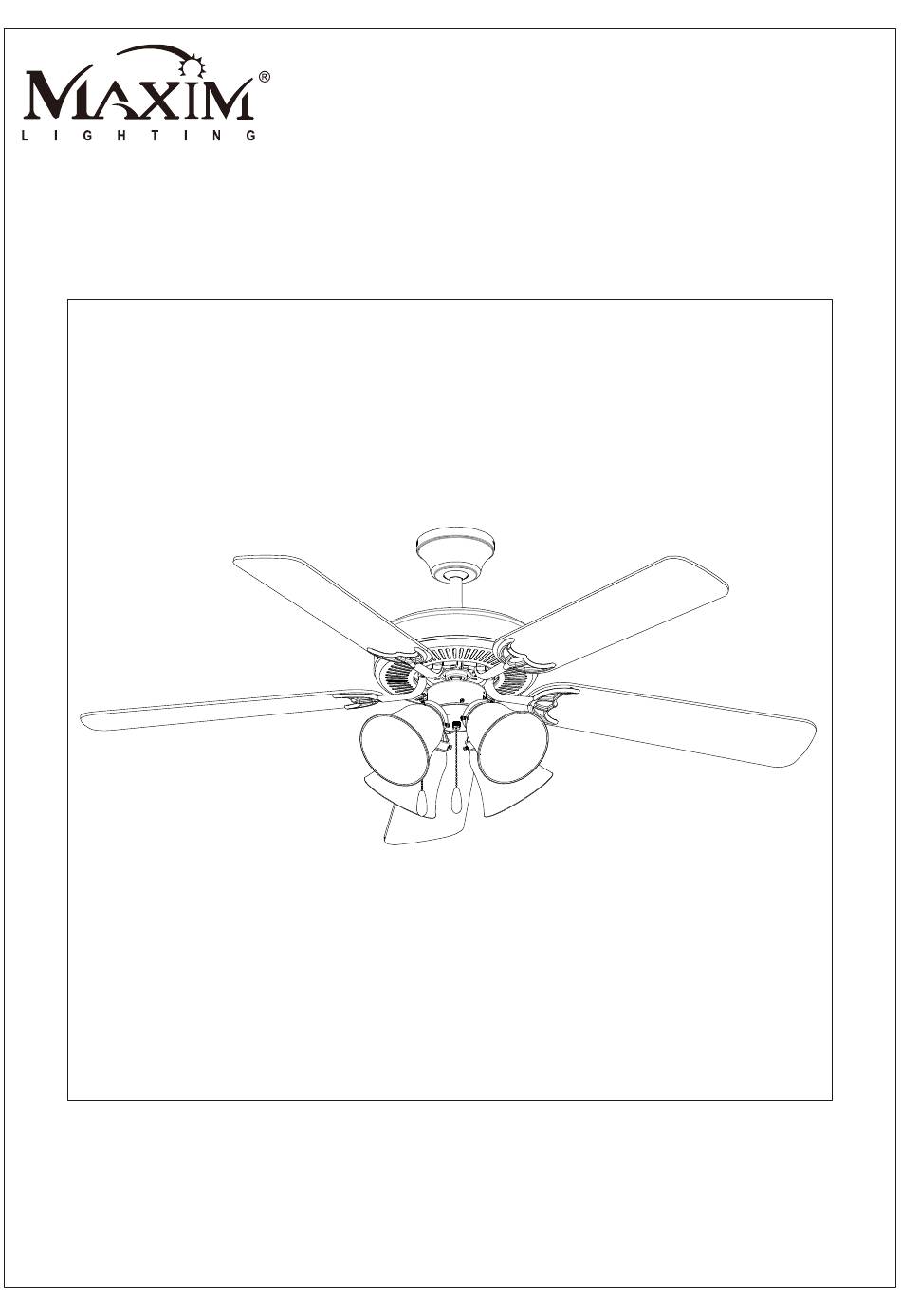

- Page 1 PRODUCT NAME:Basic-Max ITEM NUMBER:89907FTSNWP 89907FTOIWP Please consult your electrician for hanging fixture and wiring. MADE IN CHINA...
- Page 2 Bulb(4)
-
Page 3: Safety Rules
2. SAFETY RULES 1. To reduce the risk of electric shock, insure 7. Do not operate reversing switch while fan electricity has been turned off at the blades are in motion. Fan must be circuit breaker or fuse box before turned off and blades stopped before beginning. -
Page 4: Mounting Options
3. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or Outlet box turning off circuit breakers. Secure the outlet box directly to the building Fig.1 structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
4. HANGING THE FAN REMEMBER to turn off the power. Follow the UL Listed electrial steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard ceiling installation using the downrod with ball and Ceiling Washers mounting... - Page 6 LOSE-TO-CEILING INSTALLATION 1. Remove the decorative canopy bottom Canopy cover from the canopy. (Fig. 8) 2. Pass the 120-volt supply wires through the center hole in the ceiling hanger bracket as Canopy bottom cover shown in Fig. 5. Fig.8 3. Secure the hanger bracket to the ceiling outlet box with the screws and washers provided with your outlet box.
-
Page 7: Make The Electric Connections
5. MAKE THE ELECTRIC CONNECTIONS SUPPLY CIRCUIT Remember to disconnect the power. Ground Follow the steps below to connect the fan to Conductor your household wiring. Use the wire connecting nuts supplied with your fan . Secure the connectors with electrical tape. Outlet Box Make sure there are no loose strands or connections. -
Page 8: Finishing The Installation
6. FINISHING THE INSTALLATION Outlet box Screws Hanger STANDARD CEILING INSTALLATION bracket Canopy Slide canopy up to the ceiling as shown in Fig. 12. Make sure you place the wires safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan. -
Page 11: Operating Your Fan
8. OPERATING YOUR Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off. Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, and so on.
