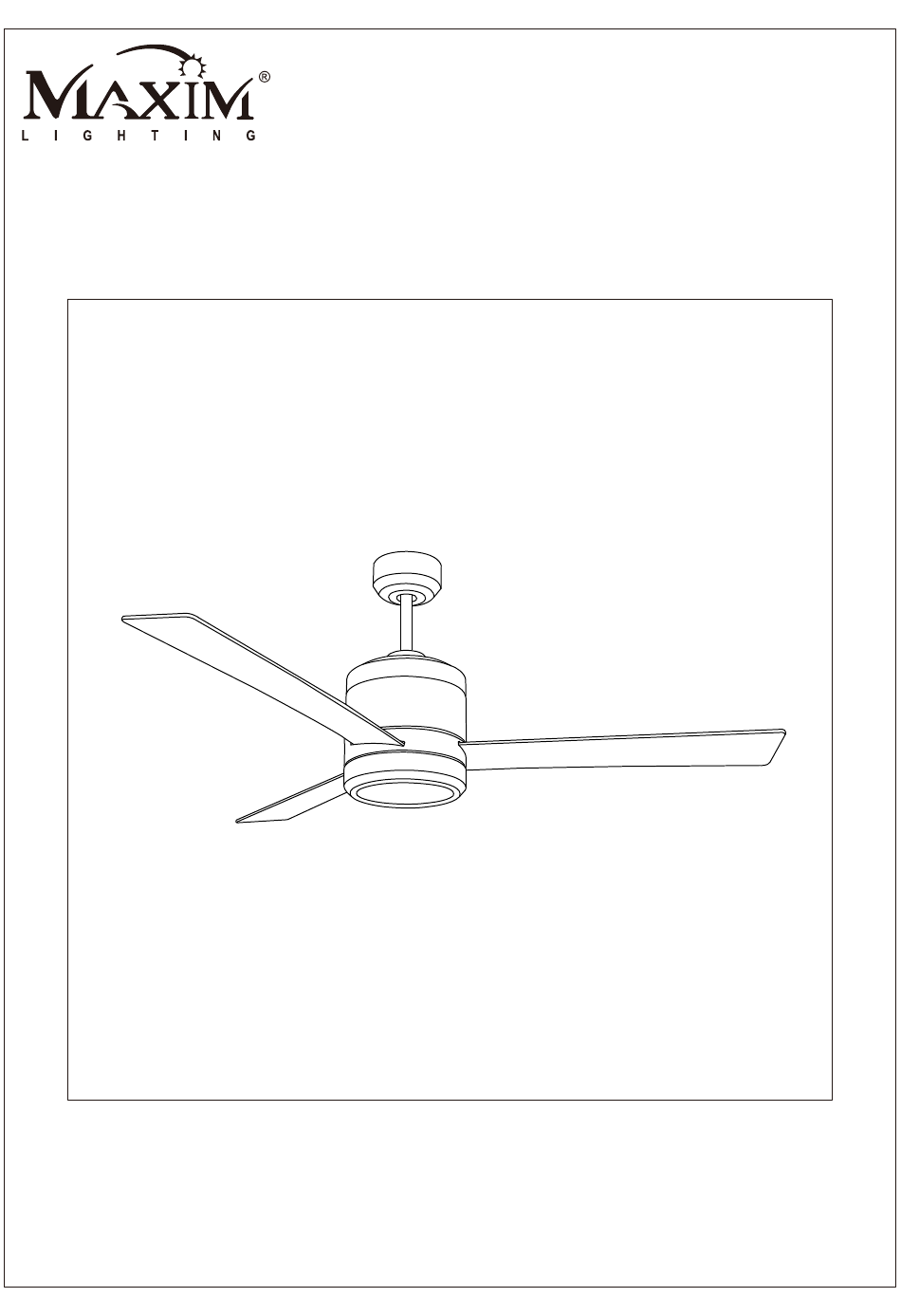

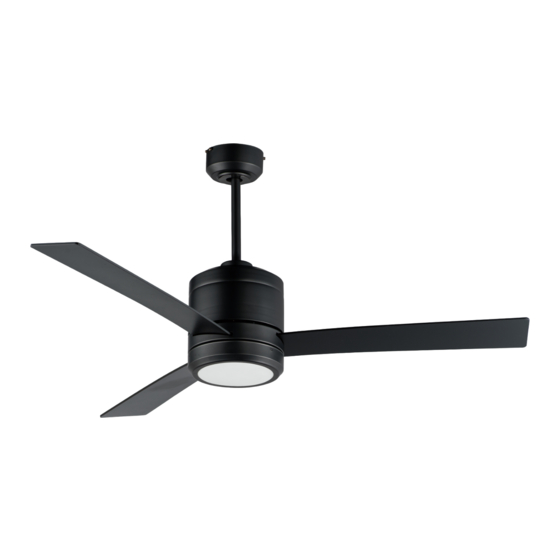

- Page 1 PRODUCT NAME:Tanker Cylinder Fan ITEM NUMBER: 993985FTSN 88816 Please consult your electrician for hanging fixture and wiring. MADE IN CHINA...
- Page 2 Blade set (3) Couping cover Wall control, receiver screws(10),fiber washers(10) 4) Balance Kit...
-
Page 3: Safety Rules
2. SAFETY RULES 1. To reduce the risk of electric shock, insure 7. Do not operate reversing switch while fan electricity has been turned off at the blades are in motion. Fan must be circuit breaker or fuse box before turned off and blades stopped before beginning. -
Page 4: Mounting Options
3. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or Outlet box turning off circuit breakers. Secure the outlet box directly to the building Fig.1 structure. Use appropriate fasteners and building materials. -
Page 5: Attaching The Fan Blades
4. ATTACHING THE FAN screwdriver BLADES Screw Step 1 Remove the motor cover by unscrewing Motor cover the screws with a screwdriver. (Fig.5) Step 2 Fasten blade assembly to motor using the screws supplied. (Fig. 6) Step 3 Install the motor cover back to the motorand tighten it with screws.(Fig.7) Motor Fig.5... -
Page 6: Hanging The Fan
5. HANGING THE FAN REMEMBER to turn off the power. Follow the UL Listed electrial steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard ceiling installation using the downrod with ball and Ceiling Washers mounting... - Page 7 6.LOSE-TO-CEILING INSTALLATION Canopy 1. Remove the decorative canopy bottom cover from the canopy. (Fig. 11) Canopy bottom cover 2. Pass the 120-volt supply wires through the Fig.11 center hole in the ceiling hanger bracket as shown in (Fig. 8) Screw and 3.
-
Page 8: Make The Electric Connections
7. MAKE THE ELECTRIC CONNECTIONS Remember to disconnect the power. DC fan wiring diagram Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan . Secure the connectors with electrical tape. Make sure there are no loose strands or connections. - Page 9 AC fan wiring diagram Remember to disconnect the power. Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan . Secure the connectors with electrical tape. Make sure there are no loose strands or connections.
-
Page 10: Finishing The Installation
8. FINISHING THE INSTALLATION STANDARD CEILING INSTALLATION Outlet box Slide canopy up to the ceiling as shown Screws Hanger in Fig. 15. Make sure you place the wires bracket safely into the outlet box. Secure the canopy Canopy to the hanger bracket with the four screws with your fan. - Page 11 10.Wall control button function 1.ON/OFF By pressing this button, the ① fan will turn ON and OFF accordingly. ② 2.LIGHT By pressing this button, the light will turn ON and OFF,Long press ⑤ this button, the light can be dimmed or lit. ③...
- Page 12 Joint cover Motor housing Fig.17...
-
Page 13: Operating Your Fan
12.OPERATING YOUR FAN Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1. 3-speed pull chain- it controls the fan speed as follows: 1 pull- High, 2 pulls- Medium, 3 pulls- Low, and 4 pulls- Off. Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, and so on. -
Page 14: Care Of Your Fan
13.CARE OF YOUR FAN 14.TROUBLESHOOTING...
