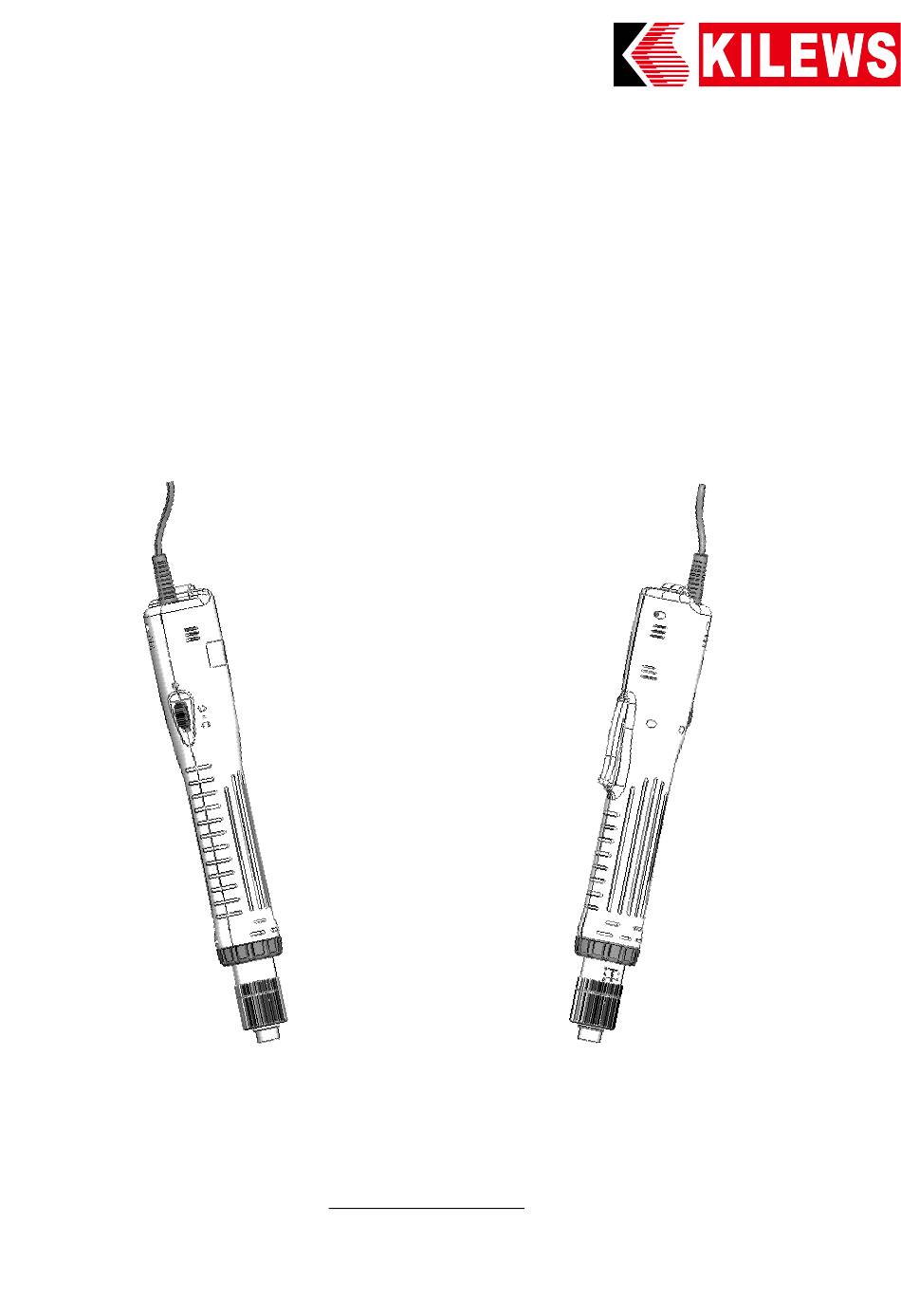

- Page 1 OPERATION AND MAINTENANCE MANUAL SK-B6230L SK-B6230LF SK-B6250L SK-B6230P SK-B6230PF SK-B6250P AC-TYPE Brushless Electric Screwdrivers KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com.tw Y2F158A-E-003...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains-operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Grounding Instructions
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. -
Page 6: Function Description
Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “OFF” position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result. -
Page 7: Description Of Operation
Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ... - Page 8 All repairs and maintenance of this tool and its word must be performed by an authorized service center. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. Repairs should be made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center.
-
Page 9: Specifications
BIT 2 Pcs. . SK-B6250 with BIT 2 Pcs. SK-B6230F with BIT 2 Pcs. 2. Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3. Torque Fixing Ring KC-7C(S) 1 Pcs. - Page 10 2. The numbers from zero to eight on the torque scale are reference number only and not an indication of actual torque output. 3. Please refer to KILEWS website http://www.kilews.com.tw for the detail component list. Our company reserves the right to modify...
