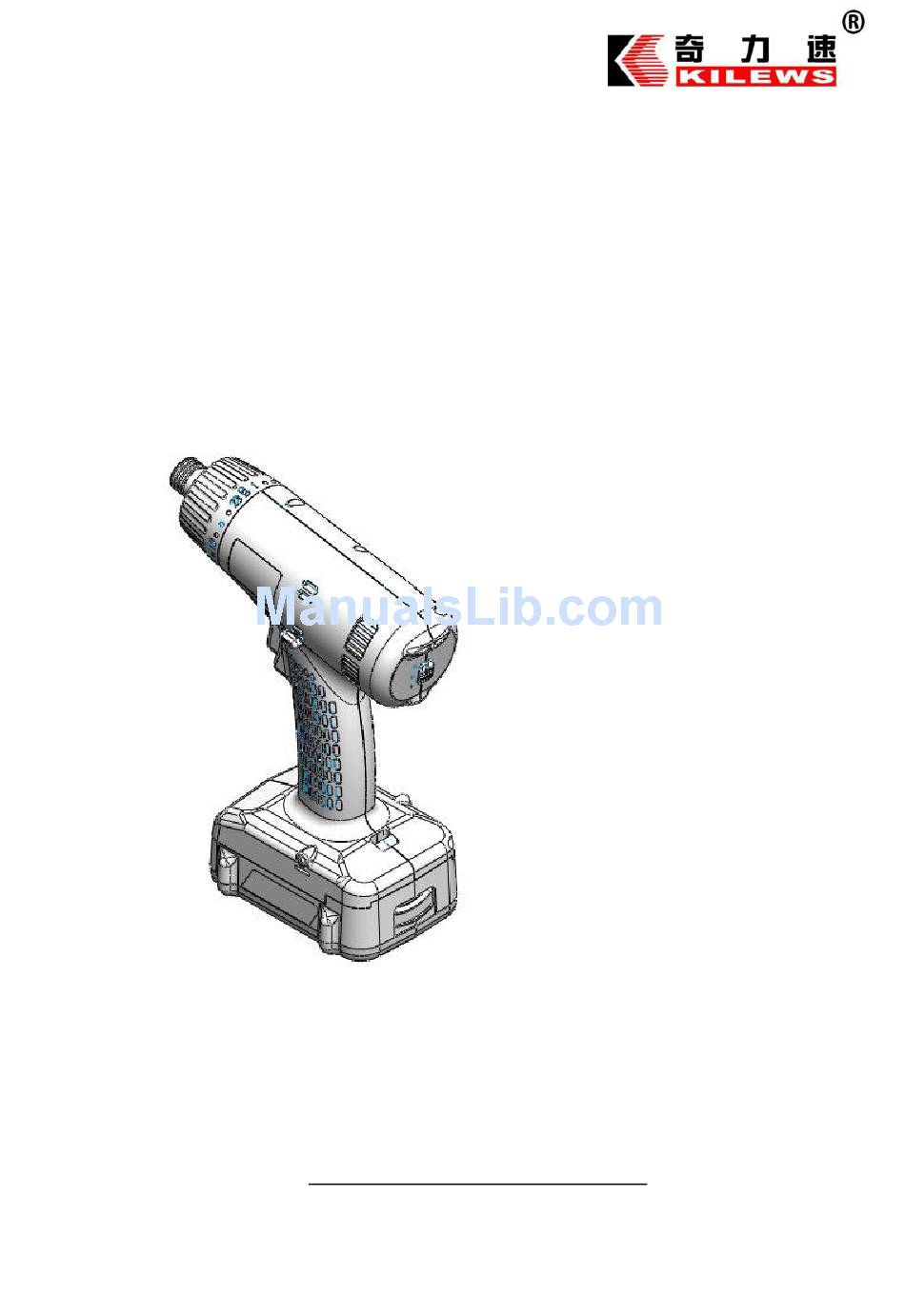

- Page 1 Semi-Automatic Cordless Brushless Power Torque Screwdrivers Series OPERATION AND MAINTENANCE MANUAL SKC-PTS-120 SKC-PTS-80 SKC-PTS-50 DIXON AUTOMATIC TOOL, INC. http://www.dixonlighttools.com Y2F103A-E-005...
-
Page 2: Icon Instructions
Before you use the Cordless Screwdriver for the first time, it is essential to read and understand the manual completely. (Including the spare parts view) The term “Cordless Screwdriver” in all of the warning listed below refers to your main operated appliance. Icon Instructions 1. - Page 3 Warning Read all instructions and make sure the appearance of the device has no damage before you use it. Failure to follow all instructions listed below may result in electric shock fire and/or serious injury. 1. Keep the working area nice and clean. 1.1 Mess and dark areas may cause of accidents.
-
Page 4: Function Of Cordless Protection
Do not attempt to disassemble or reassemble the device at will which may result in poor performance or danger of injury, the warranty applies only to initial package. Do not repair the device with other than genuine KILEWS replacement parts may result in poor performance or danger of injury, the warranty will be considered void. - Page 5 2.1 Below illustration is showing the process of correct install & disassemble the rechargeable battery. The beep sound comes along with a flash while the screwdriver is supplied genuine battery installation. It could be operated once the battery has been identified. 2.2 Too slow to install the battery may cause error identification so the beep sound and flash would be continuing.
-
Page 6: Function / Operating Introduction
Function / Operating Introduction Function Name Table Description Description Trigger switch Wrist strap hole Forward/Reverse lever S waist hook LED light Indication light Bit sleeve Speed adjustment Torque adjustment Manual / Function 1. SEMI-AUTO cordless screwdriver Taking the finger off the lever whenever the device reaches the setting torque while comes along with clutch DA-DA-DA sound. - Page 7 (1) Trigger switch When the start switch is pressed into 1/3 trip, the front end light will be turn on for operation. When it reach from half trip to full trip , the screwdriver begin to start impact from low speed to maximum speed until the default timer is reached for each H/M/L torque level.
- Page 8 (5) External torque adjustment The purpose of the torque adjustment is to have the torque level changed from level 1~23; each level has different torque, follow the direction as below showing while the figure value gets bigger means for more torque. Direction of rotation Torque adjustment ring portrayed Digital larger torque...
-
Page 9: Other Cautions
13. The torque range of SKC-PTS-120/80/50 must be measured by the KILEWS torque meter KTM-4B- 14. Kilews cordless screwdriver torque output is generated by clutch mechanism, and it is applicable to... -
Page 10: Description Of Battery And Charger
Description of battery and charger 1. KILEWS SKC-LB series of batteries as options to fit in the device; you may consult with local agent based on your task requirement. 2. The use of other than genuine KILEWS batteries or screwdrivers can’t be active due to the build-in protection system enforce no charging. - Page 11 12-1 13-1 MODEL NO : SKC-PTS-50 SKC-PTS-80 SKC-PTS-120 CUSTOMER DWG NAME PRODUCTION NO. ITEM NO: DWG NO: TITLE: MATERIAL SHRINK DES. BY DATE THIRD ANGLE PROJECTION. CHKD.BY DATE UNIT SCALE SHT NO. DATE APPD.BY OF SHTS. KILEWS INDUSTRIAL CO.. LTD.
- Page 12 PTS-50 PTS-80 PTS-120 NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty CH20527 Screw 螺絲 19 CI50216-1 HI-LO Switch 高低速切換推板 CAB00003 Housing-Upside 上蓋 20 W10200 Insulating Washer PC絕緣墊片 30*102*0.2 R481874 Wrist band 手腕帶 21 W10200-2 Insulating Washer PC絕緣墊片...
