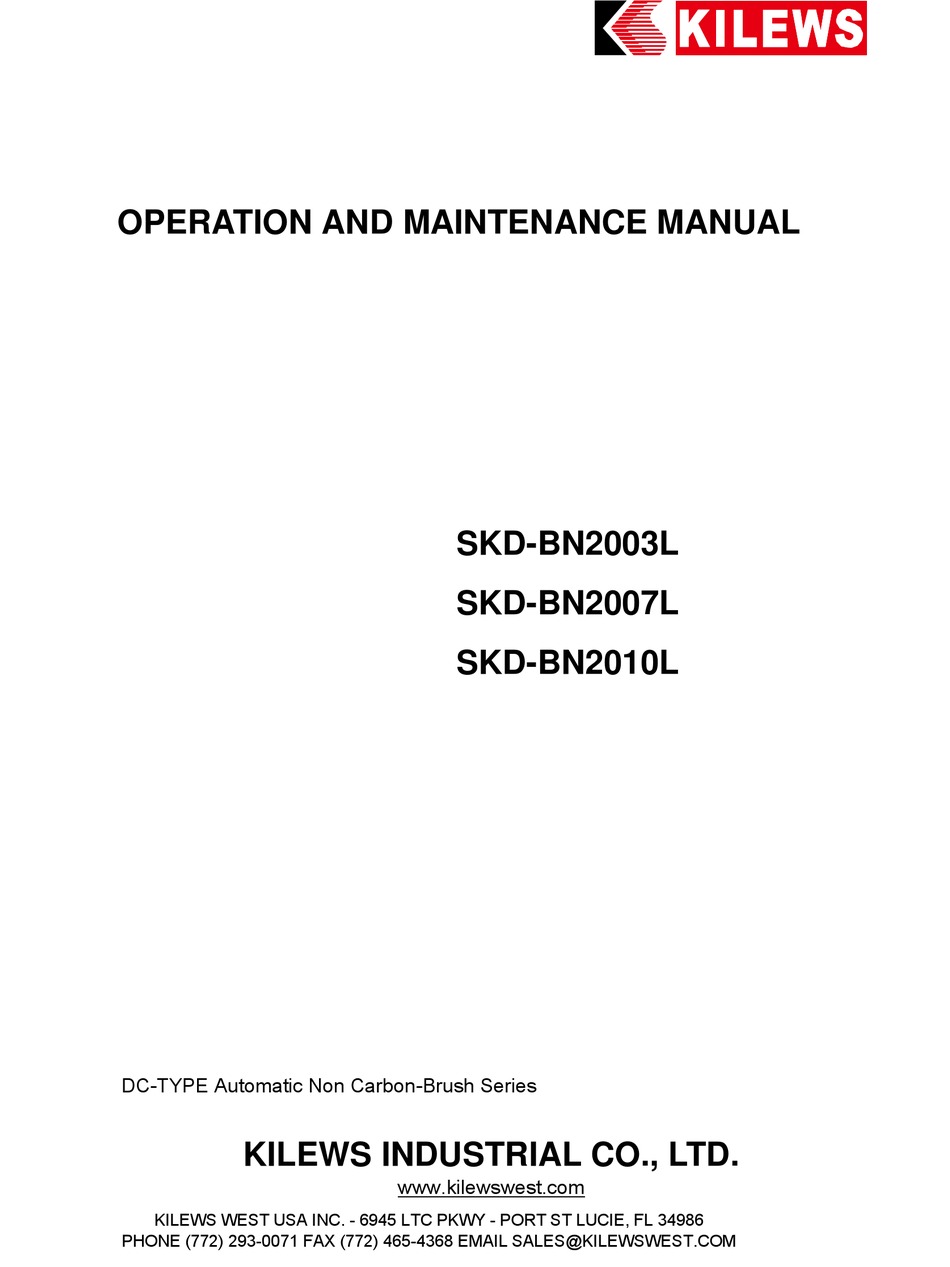

- Page 1 DC-TYPE Automatic Non Carbon-Brush Series KILEWS INDUSTRIAL CO., LTD. www.kilewswest.com KILEWS WEST USA INC. - 6945 LTC PKWY - PORT ST LUCIE, FL 34986 PHONE (772) 293-0071 FAX (772) 465-4368 EMAIL SALES@KILEWSWEST.COM...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. ...
-
Page 3: Important Safety Rules
Important Safety Rules Read all instructions Failure to follow all instructions listed below may result in electric shock WARNING! fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 4 4) Power tool Use and Care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use power tool if switch does not turn it on or off.
-
Page 5: Grounding Instructions
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. - Page 6 Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “OFF “position and tool is unplugged. 2) Do not allow chemicals such as acetone, benzene, thinner, trichloroethylene ketone, or other similar chemicals to come in contact with the screwdriver housing as damage will result.
-
Page 7: Description Of Operation
Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by fingertip, and it will be unlocked. Thus, the bit can be freely attached and detached (single finger notion type) select such a bit whose shank is equal to the size shown below. ... - Page 8 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted.
-
Page 9: Specifications
Ø4×40 00# & 0# & 1# 1 Pce. Each SKD-BN2010L with BIT M3 Ø4×40 1# & 2# 1 Pce. Each 3. Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. ... - Page 10 3. The power supplier will generate low power when the button of the power controller is switched to "LO." Also, the electric screwdriver's torque output setting value should be adjusted to middle torsion value accordingly. 4. Please refer to Kilews website http://www.kilews.com for the detail component list.
- Page 11 MODEL : SKD-BN2003L SKD-BN2007L SKD-BN2010L...
- Page 12 BN2003L BN2007L BN2010L (CE) NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty NO PARTS NO PARTS NAME-E PARTS NAME-C Q'ty 1 AA50001-153 CORD ASSEMBLY 2M 電源線 2M 28 GH28191-7 IDLE GEAR-BN2003L/BN2007L 游星齒輪-BN2003L/BN2007L 2 CJ20011-4 SUSPENSION RING 起子吊環 GH28191-4 IDLE GEAR-BN2010L 游星齒輪-BN2010L 3 CC28028 TRIGGER ASSEMBLY...
