Interface Specifications; Environmental Requirements - Watchguard Firebox T40-CW Hardware Manual

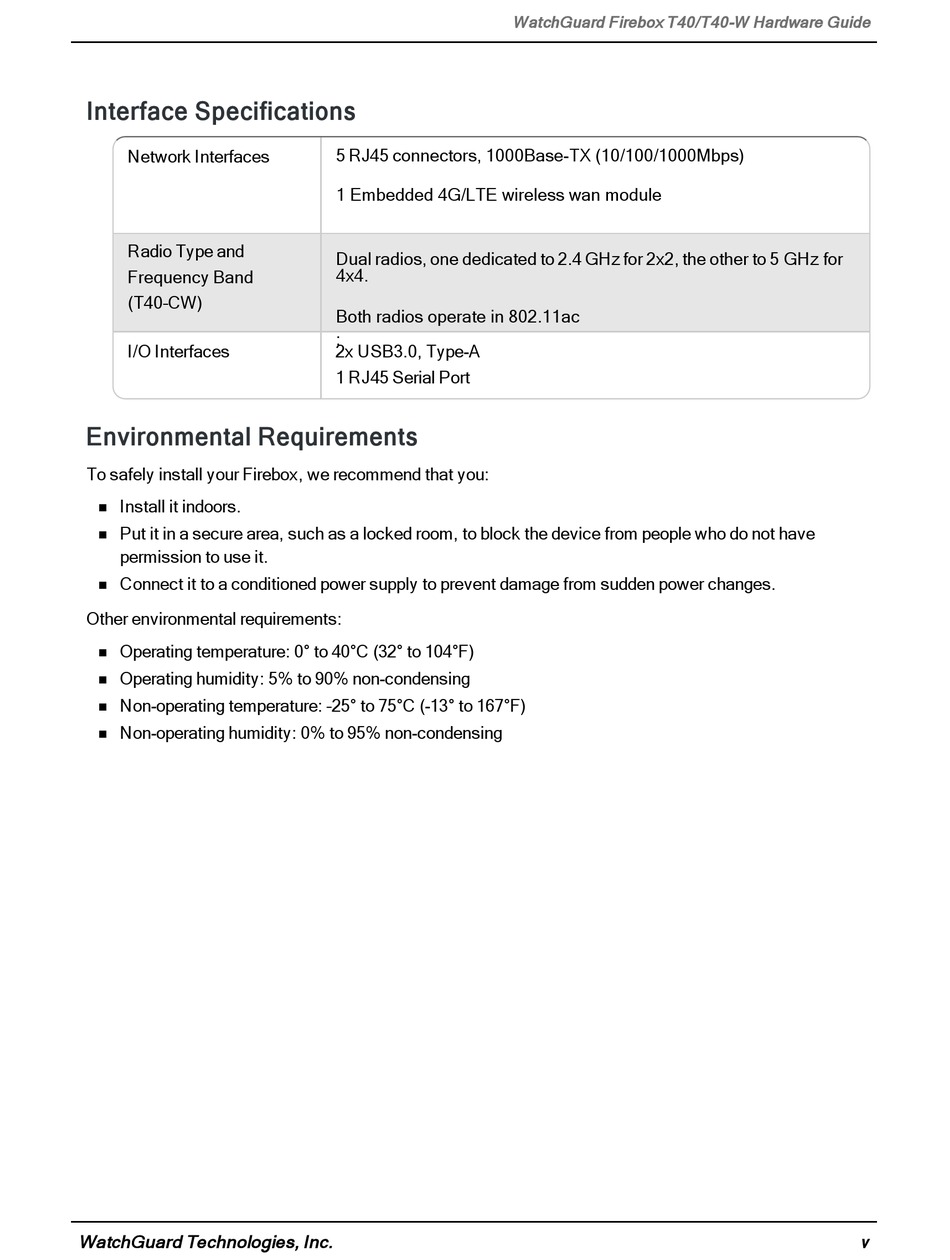

Interface Specifications

Network Interfaces
Radio Type and
Frequency Band
(T40–CW)
I/O Interfaces

Environmental Requirements

To safely install your Firebox, we recommend that you:
Install it indoors.
n
Put it in a secure area, such as a locked room, to block the device from people who do not have
n
permission to use it.
Connect it to a conditioned power supply to prevent damage from sudden power changes.
n
Other environmental requirements:
Operating temperature: 0° to 40°C (32° to 104°F)
n
Operating humidity: 5% to 90% non-condensing
n
Non-operating temperature: –25° to 75°C (-13° to 167°F)
n
Non-operating humidity: 0% to 95% non-condensing
n
WatchGuard Technologies, Inc.
WatchGuard Firebox T40/T40-W Hardware Guide
5 RJ45 connectors, 1000Base-TX (10/100/1000Mbps)
1 Embedded 4G/LTE wireless wan module
Dual radios, one dedicated to 2.4 GHz for 2x2, the other to 5 GHz for
4x4.
Both radios operate in 802.11ac
:
2x USB3.0, Type-A
1 RJ45 Serial Port
v
