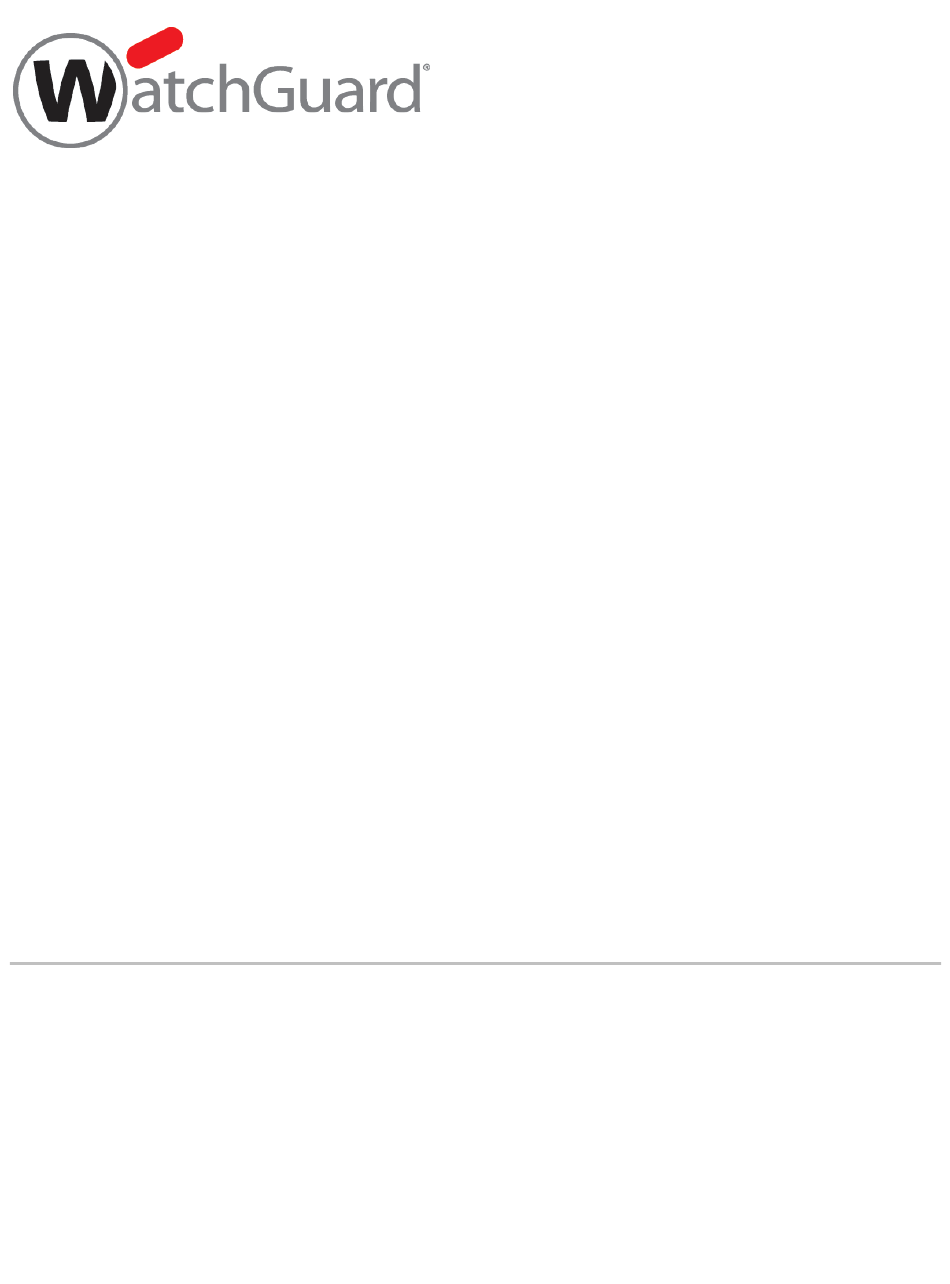

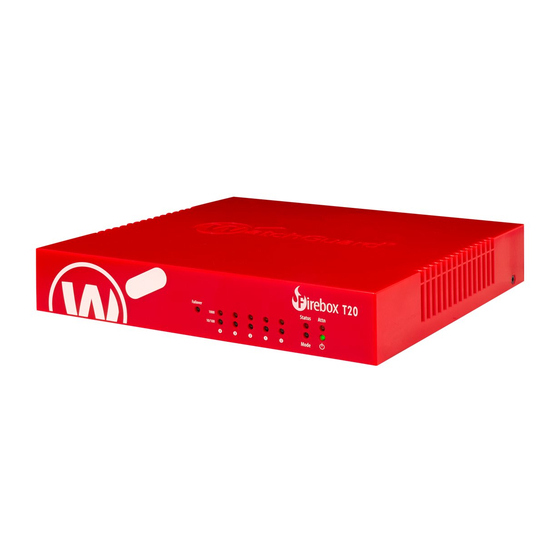

  • Page 1 ® Firebox T20, T20-W Hardware Guide ® Firebox T20, T20-W FS2AE5, FS2AE5W...
  • Page 2 Guide revised: 1/24/2020 Copyright, Trademark, and Patent Information Copyright © 1998 – 2020 WatchGuard Technologies, Inc. All rights reserved. All trademarks or trade names mentioned herein, if any, are the property of their respective owners. Complete copyright, trademark, patent, and licensing information can be found in the Copyright and Licensing Guide, available online at https://www.watchguard.com/wgrd-help/documentation/overview.

  • Page 3: Table Of Contents

    Contents WatchGuard Firebox T20/T20-W Hardware Guide Fireware OS About Your Hardware Hardware Specifications Interface Specifications Environmental Requirements Hardware Description Front Rear AC Power Adapter Wall Mounting Plate Restore Factory-Default Settings Notices Product Safety Certification Safety Warning Disclaimer Hinweise Zur Sicherheit...
  • Page 4 Radiation Exposure Statement Déclaration d’exposition aux radiations: France (Wireless) Japan VCCI Notice (Class A ITE) Taiwan RoHS (T20) xvii Taiwan Class A Notice xvii Taiwan NCC xvii Mexico Notice xviii Limited Hardware Warranty xviii Declaration of Conformity WatchGuard Technologies, Inc.

  • Page 5: Watchguard Firebox T20/T20-W Hardware Guide

    From firewall and VPN protection to secure remote access, WatchGuard Firebox appliances support a broad range of network environments. This guide introduces the Firebox T20 RoHS-compliant (lead-free) hardware product. The Firebox T20 network security appliance is designed for small organizations and branch offices.

  • Page 6: Interface Specifications

    WatchGuard Firebox T20/T20-W Hardware Guide Interface Specifications 5 RJ45 connectors, 1000 Base-TX (10/100/1000Mbps) Network Interfaces T20-W is compliant with the IEEE802.11AC wave1 standard. A single 3x3:3 radio that can operate on one of these bands: Radio Type and Frequency Band (T20–W)

  • Page 7: Hardware Description

    On the Firebox T20-W model, the WAP indicator is lit when the appliance is activated as a wireless access point or a wireless client. The color indicates the active wireless radio band. The light blinks when data is sent and received.

  • Page 8: Rear

    WatchGuard Firebox T20/T20-W Hardware Guide Network Interface Status Indicators The Firebox T20 has five network interfaces. There are two status indicators for each interface. Indicator Indicator Color Interface Status Link speed: 1000 Mbps 1000 Blinks (speed of blink increases as the data flow...
  • Page 9 The Ethernet interfaces have standard RJ45 connectors and support link speeds of 10, 100, or 1000 Mbps. The Firebox T20 has five network interfaces. These interfaces are labeled 0/WAN, 1/LAN, 2, 3, 4. Reset Button This resets the device. To restore the device to factory-default settings, see...

  • Page 10: Ac Power Adapter

    WatchGuard Firebox T20/T20-W Hardware Guide AC Power Adapter The AC power adapter supplies power for the Firebox. The power supply connector has a screw-type retention mechanism. To prevent a disruption in the power supply, tighten the screw on the connector.

  • Page 11: Restore Factory-Default Settings

    WatchGuard Firebox T20/T20-W Hardware Guide Restore Factory-Default Settings If you have a problem in your configuration file that you cannot correct, you can restore the factory-default settings and start from a new configuration file. For example, if you do not know the administrator account passphrase, or if a power interruption causes damage to the Fireware OS, you can restore the Firebox to the factory-default settings and build your configuration again.

  • Page 12: Notices

    警 示 本 電 池 如 果 更 換 不 正 確 會 有 爆 炸 的 危 險 ， 請 勿 自 行 更 換 電 池 Disclaimer WatchGuard shall not be held liable if the end user alters, modifies, or repairs any WatchGuard hardware appliance.

  • Page 13: Sicherheitshinweis

    Beim Entfernen oder Installieren eines Gerätes, nach den allgemeinen Installation Sicherheitshinweise. Aviso De Seguridad Todos los productos WatchGuard están diseñados y probados para satisfacer estrictos requisitos de seguridad. Estos requisitos incluyen la homologación de productos de seguridad y otras normas de cumplimiento global.

  • Page 14: Federal Communications Commission Interference Statement

    (0 Hz - 300 GHz) EN 62368-1:2014+A11:2017 - Safety standard that classifies energy sources, prescribes safeguards against those energy sources, and provides guidance on the application of, and requirements for, those safeguards. WatchGuard Technologies, Inc. xiii...

  • Page 15: Ce Notice

    France. CE Notice symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU).

  • Page 16: Reach

    WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S.

  • Page 17: Caution: (Wireless)

    こ れはVCCI評 議 会 の基 準 に基 づく ク ラ スA製 品 です。 本 製 品 がラ ジオやテレビ 受 信 機 の近 く で使 用 さ れ ている場 合 は、 電 波 障 害 を引 き起 こ すこ と があり ます。 インスト ールして、 取 扱 説 明 書 に従 っ て 機 器 を使 用 しています VCCI-A WatchGuard Technologies, Inc.

  • Page 18: Taiwan Rohs (T20)

    電 磁 波 曝 露 量 MPE標 準 值 (MPE) 1mW/cm2， 送 測 產品 實 值 為 0.338 mW/cm2 無 線 資 訊 傳 輸 設 備 避 免 影 響 附 近 雷 達 系 統 之 操 作 WatchGuard Technologies, Inc. xvii...

  • Page 19: Mexico Notice

    WatchGuard Technologies, Inc. (“WatchGuard”) and you agree as set forth below or on the reverse side of this card, as applicable. 1. LIMITED WARRANTY. WatchGuard warrants that upon delivery and for one (1) year thereafter (the “Warranty Period”): (a) the Product will be free from material defects in materials and workmanship, and...
  • Page 20 ANY PRODUCT WILL IN NO EVENT EXCEED THE PURCHASE PRICE PAID BY YOU FOR SUCH PRODUCT. THIS SHALL BE TRUE EVEN IN THE EVENT OF THE FAILURE OF ANY AGREED REMEDY. IN NO EVENT WILL WATCHGUARD BE LIABLE TO YOU OR ANY THIRD PARTY (WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING...

  • Page 21: Declaration Of Conformity

    Notices Declaration of Conformity WatchGuard Technologies, Inc.
