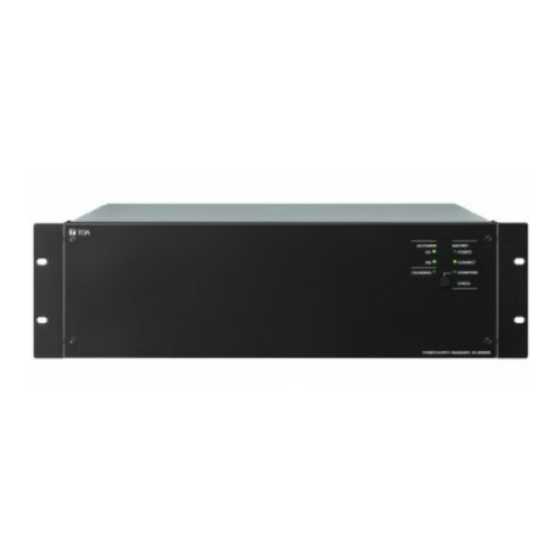

OPERATING INSTRUCTIONS
POWER SUPPLY MANAGER
VX-3150DS
1134
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg, Germany
1134-CPR-137
DoP 16-005
EN 54-4: 1997 + A1: 2002 + A2: 2006
Fire Detection and fire alarm systems - part 4: power supply equipment
Thank you for purchasing TOA's Power Supply Manager.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa VX-3150DS-EB
Summary of Contents for Toa VX-3150DS-EB
- Page 1 EN 54-4: 1997 + A1: 2002 + A2: 2006 Fire Detection and fire alarm systems - part 4: power supply equipment Thank you for purchasing TOA’s Power Supply Manager. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................3 2. FEATURES ......................4 3. NOMENCLATURE AND FUNCTIONS ..........5 Front ..........................5 Front (with the front panel removed) ................6 Rear ..........................7 4. INSTALLATION ....................8 4.1. Installing the VX-3150DS in the Cabinet Rack ............8 4.2. -
Page 3: Safety Precautions
AC power plugs (AC CAUTION power cords), disconnect the battery, and contact your nearest TOA dealer. Make no further attempt to operate the unit in this condition as this may When Installing the Unit cause fire or electric shock. -
Page 4: Features
• Automatically switches to the backup power supply when the AC Mains power supply is interrupted. • Detects charging circuitry or battery failures, and transmits failure signals to the DS LINK of the TOA Voice Evacuation Systems (VX-2000, SX-2000, and VM-3000). -
Page 5: Nomenclature And Functions
3. NOMENCLATURE AND FUNCTIONS [Front] AC POWER BATTERY POWER CONNECT CHARGING CONDITION CHECK POWER SUPPLY MANAGER VX-3150DS 1. Power indicators [AC POWER IN] Note Light green when AC power is supplied through the Battery check cannot function for 1 minute during AC inlet (18). -
Page 6: Front (With The Front Panel Removed)
[Front (with the front panel removed)] 7. DIP switch Switch 6 Sets the battery charging current. ON: N/A OFF: 5.5 A* * Settings compliant with EN 54-4. • Switches 1 and 2 are not used. Be sure to leave both switches OFF. Switch 7 ON: N/A •... -
Page 7: Rear
[Rear] View with the cover removed Protection cover 10. Functional earth terminal [SIGNAL GND] 16. Control connectors [DS LINK IN, OUT] Hum noise may be generated when external • DS LINK IN connector equipment is connected to the unit. Connecting Connects to DS LINK connector of the VX-2000 this terminal to the functional earth terminal of the system, SX-2000 system, or VM-3000 system. -
Page 8: Installation
4. INSTALLATION 4.1. Installing the VX-3150DS in the Cabinet Rack Rack mounting screw 5 x 12 4.2. Battery Installation WARNING • Take special care to prevent the battery from being shorted by misconnection of the battery cable. If the short occurs, the unit may fail. Follow the instructions in this section for safe and secure connection. - Page 9 • Insert the battery cable into the correct position in the battery terminal referring to the terminal's cross sectional diagrams below. Correct position of the cable insertion Incorrect position of the cable insertion Wrong insertion position of the cable or a forked cable insertion causes poor contact or insufficient Cable conductor connection tightness, making the cable come off to...
- Page 10 • Use the battery connection cables as short in length and as large in diameter as possible. VX-3150DS Battery connnection terminals Cable C Cable A Cable B Battery Battery Example of wire length Cable cross Length (2 mΩ) sectional area Cable A, Cable C Cable B AWG 6 16 mm...
- Page 11 [Disconnecting the battery] Step 1. Confirm that battery power is not in use by means of the VX-3150DS' front-mounted BATTERY POWER LED, which is unlit in this case. Step 2. Loosen the VX-3150DS' BATTERY POWER IN negative terminal screw, then pull out the negative battery cable.
-
Page 12: Affixing Declaration Of Compliance (En 54-4 Standard)
(supplied with the VX-3150DS) When replacing the batteries, 4 each of fastener hooks and loops, and a thermal insulating sheet listed below are also required. Consult your nearest TOA dealer on how you can obtain them. Part code Part name... -
Page 13: Connections
5. CONNECTIONS 5.1. Connecting the VX-3150DS to VX-2000 System VX-2000 AUDIO LINK DATA LINK Ferrite cable clamp* DC POWER IN VX-2000SF Cat. 5 STP DS-SF LINK DC POWER IN VP-2000 series or VP-3000 series power amplifier DC POWER IN From VX-3150DS 28 V 4.8 A PA OUT (SP LINE) -
Page 14: Connecting The Vx-3150Ds To Sx-2000 System
5.2. Connecting the VX-3150DS to SX-2000 System 5.2.1 When using a redundant power system* In this connection example, 2 power supply units are used. Even if one of the 2 units fails or its power supply line is broken, power is still supplied from the other unit, preventing the system from going down. * A method of connecting separate power sources to each power input or connecting the commercial power supply and backup power supply separately to each power input to prevent the system from going down when a cable is broken or power fails. - Page 15 5.2.2. When not using a redundant power system Required power is supplied to the system from a single power supply unit. Connect the [+] terminal of Input A to the [+] terminal of Input B, and the [–] terminal of Input A to the [–] terminal of Input B. SX-2100AO or SX-2000AO 4P removable terminal plug (The figure below shows the SX-2100AO.)
- Page 16 [Cable termination] When connecting 2 power cables to a single terminal of the removable Insulation sleeve terminal plug, use a ferrule terminal with an insulation sleeve to crimp the Contact section cables because such cable conductors could become loose. Recommended "Phoenix Contact" ferrule terminals for power supply cables Model Number AI 1,5-8 BK...
-
Page 17: Connecting The Vx-3150Ds To Vm-3000 System
5.3. Connecting the VX-3150DS to VM-3000 System From VX-3150DS Note VM-3240VA/3360VA Remove the short bar attached at the factory. 230 V AC 220 V AC 50/60 Hz VP-2241 From DC POWER IN VX-3150DS 28 V 4.8 A PA OUT (SP LINE) PA LINK VP-200VX (–) - Page 18 5.3.1. Required number of VX-3150DS units in a 1-channel broadcasting system The required number of the VX-3150DS Power Supply Manager units is determined depending on the application of the system configured with the VM-3240VA, VM-3360VA, VM-3240E, and VM-3360E (hereinafter called "VM amplifier"), and/or the VP-2241, VP-2421, VP-3304, and VP-3504 x 2 CH* (hereinafter called "VP amplifier").
- Page 19 [System including one VP amplifier connected as a standby amplifier] One VX-3150DS is required every 2 VM-3360VA/3360E amplifiers or 3 VM-3240VA/3240E amplifiers. No. of VM-3360VA/3360E No. of VX-3150DS units No. of VM-3240VA/3240E No. of VX-3150DS units Below is an example showing that one VX-3150DS unit is used in a system including 3 VM amplifiers. VM-3240VA EXT.
- Page 20 [Required number of VX-3150DS units in a BGM/Paging system] One VX-3150DS is required every 2 VM-3360VA/3360E amplifiers or 3 VM-3240VA/3240E amplifiers. No. of VM-3360VA/3360E No. of VX-3150DS units No. of VM-3240VA/3240E No. of VX-3150DS units Below is an example showing that 2 VX-3150DS units are used in a system including 5 VM-3240VA/3240E amplifiers. No.1 VM-3240VA VX-3150DS...
-
Page 21: Connecting The Vx-3150Ds To Vx-3000 System
5.4. Connecting the VX-3150DS to VX-3000 System 5.4.1. DC power output terminal connections Required power is supplied to the system from a single power supply unit. Note A redundant power system of the VX-3150DS cannot be applied to the VX-3004F, VX-3008F, and VX-3016F. Amplifier DC power input terminal 4P removable terminal plug (VX-015DA, VX-030DA, or VX-050DA... - Page 22 [Cable termination] When connecting 2 cables or a shielded cable to a single terminal, use a ferrule terminal with an insulation sleeve to crimp the cables because such cable conductors could become loose. Recommended ferrule terminals for signal cables Insulation sleeve (made by DINKLE ENTERPRISE) Unit: mm Contact section...
-
Page 23: Cable Usage Table
6. CABLE USAGE TABLE [VX-3150DS] Terminal to Connect Cable Type Equipment to be Connected to Equipment Terminal Equipment Terminal Name Plug Cable Type Plug Equipment Receptacle Name Receptacle 230 V AC, 50/60 Hz AC POWER IN 3P inlet Supplied cable 220 V AC, 50/60 Hz SX-2000SM, SX-2100AO, VX-2000SF, VM-3240VA,... -
Page 24: Switching Off System Power (Dc)
• VX-3150DS' DS LINK Connections Connector Name RJ45 Pin No. Colour Pair Assignment Direction/Level DS LINK IN/OUT Orange/white Connection Check Orange Battery Failure Green/white Charging Circuitry Failure Output/0 – 3.3 V Blue DC Off Blue/white AC Off Green 3.3 V DC Input Input (DC)/3.3 V Brown/white Brown... -
Page 25: Block Diagram
8. BLOCK DIAGRAM Control Connector [DS LINK IN] Control Connector Fuse RESET [DS LINK OUT] Control Circuit AC 250 V SWITCH T8A H SMPS* BATTERY TEMPERATURE SENSOR IN BATTERY CONNECT Battery Connection Terminal [BATTERY AC POWER IN POWER IN] PFC* POWER OUT DC24 V 24 V (16-25 V) MAX 0.3 A... -
Page 26: Appendix
9. APPENDIX: Recommendations to the Power Supply Installation Incorrect installations of the power supply manager VX-3150DS and its related equipment as batteries can cause unnecessary fault indications. This information sheet gives you helpful hints and recommendations to avoid it. Please also take care on the battery handling hints. Battery Storage The recommended storage conditions (duration, temperature) of charged and uncharged batteries must not be... - Page 27 Battery Connection Clean Contacts Take care that the connection terminals are clean before connecting the cables. Clean them if necessary. Ensure that the battery cables are inserted correctly into the battery terminals of the VX-3150DS and the screws are fastened tight. Add one crown gear (toothed washer) on one side of the battery’s terminal connection.
- Page 28 The temperature sensor must not be disconnected during charging of the battery because then the charging voltage becomes high causing the dangerous situations explained above. When exchanging the temperature sensor, the charging voltage of the VX-3150DS must be re-adjusted by TOA dealer. Installation In opposition to the battery, the temperature sensor reacts on ambient temperature changes, therefore it must not be exceeded to such changes.
- Page 29 “POWER OUT 19-33V MAX 5A” or “POWER the blown fuse with the supplied one. If the fuse blows again, OUT 19-33V MAX 25A” blown. consult your TOA dealer. Internal fuse (15 A) of the VX-3150DS blown. Consult your TOA dealer.
- Page 30 Check procedure 2: This measurement can be done with a slow voltmeter. Disconnect the VA unit’s power supply from the DC output from the VX-3150DS and connect a load of 5 - 6 Ω / 600 W to the DC output (when the current of the connected system components is known), then take care that the total current is approximately 5 A.
-
Page 31: Specifications
10. SPECIFICATIONS Power Source 220 – 230 V AC, 50/60 Hz Power Consumption 1460 W max. in total (at rated output with charging) 460 W max. (EN60065) DC Power Output (AC Rated output: 1140 W (total DC power output) mode) Peak output: 1280 W (total DC power output) Current Specification Maximum output current from the battery : 25 A... - Page 32 This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan Suederstrasse 282, 20537 Hamburg, Germany...
- Page 36 URL: https://www.toa.jp/ 133-02-00250-03...
