Summary of Contents for BTEK T419S
- Page 1 T419S Indicator User Instructions AWT35-501787 Issue AA...
- Page 2 © 2018 B-TEK. All rights reserved. BTEK_T419S_u_en_501787.book...
-
Page 3: Table Of Contents
FCC and EMC declarations of compliance ................ 8 Chapter 2 Introduction ..........................9 Front Panel Keys ......................10 Powering up a T419S indicator ..................12 Using the alphanumeric keypad ..................12 Entering negative numbers or decimal point ..............12 Menu access and navigation ................... 12 Escaping or exiting from a menu ................ - Page 4 T419S Indicator User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. 1.2 Installation NO USER SERVICEABLE PARTS. REFER TO QUALIFIED SERVICE PERSONNEL FOR SERVICE. T419S Indicator User Instructions... -
Page 6: Safe Handling Of Equipment With Batteries
IMPORTANT: This equipment must be routinely checked for proper operation and calibration. Application and usage will determine the frequency of calibration required for safe operation. Always isolate the indicator from the power supply before starting any routine maintenance to avoid the possibility of electric shock. T419S Indicator User Instructions... -
Page 7: Cleaning The Machine
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. T419S Indicator User Instructions... -
Page 8: Fcc And Emc Declarations Of Compliance
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. T419S Indicator User Instructions... -

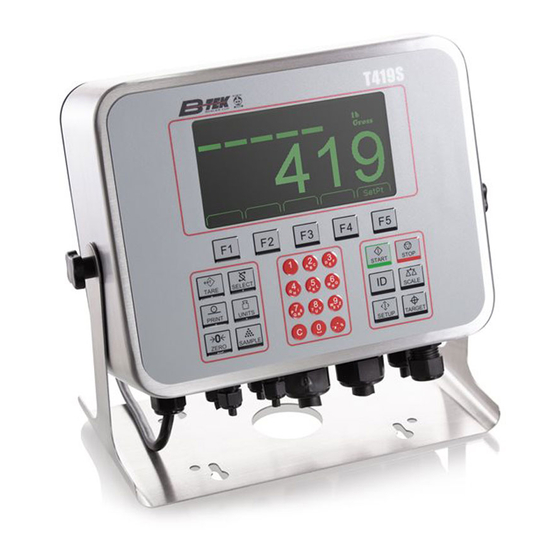

Page 9: Chapter 2 Introduction
Both have a high contrast, graphic display for text and graphic messages appropriate to the function of the program. The T419S indicator can support up to 32 - 350 ohm load cells. The indicator requires 90 VAC - 264 VAC, 50 or 60 Hz or 12-36VDC. The standard indicator connectivity includes two USB Host, three serial ports and an Ethernet port. -
Page 10: Front Panel Keys

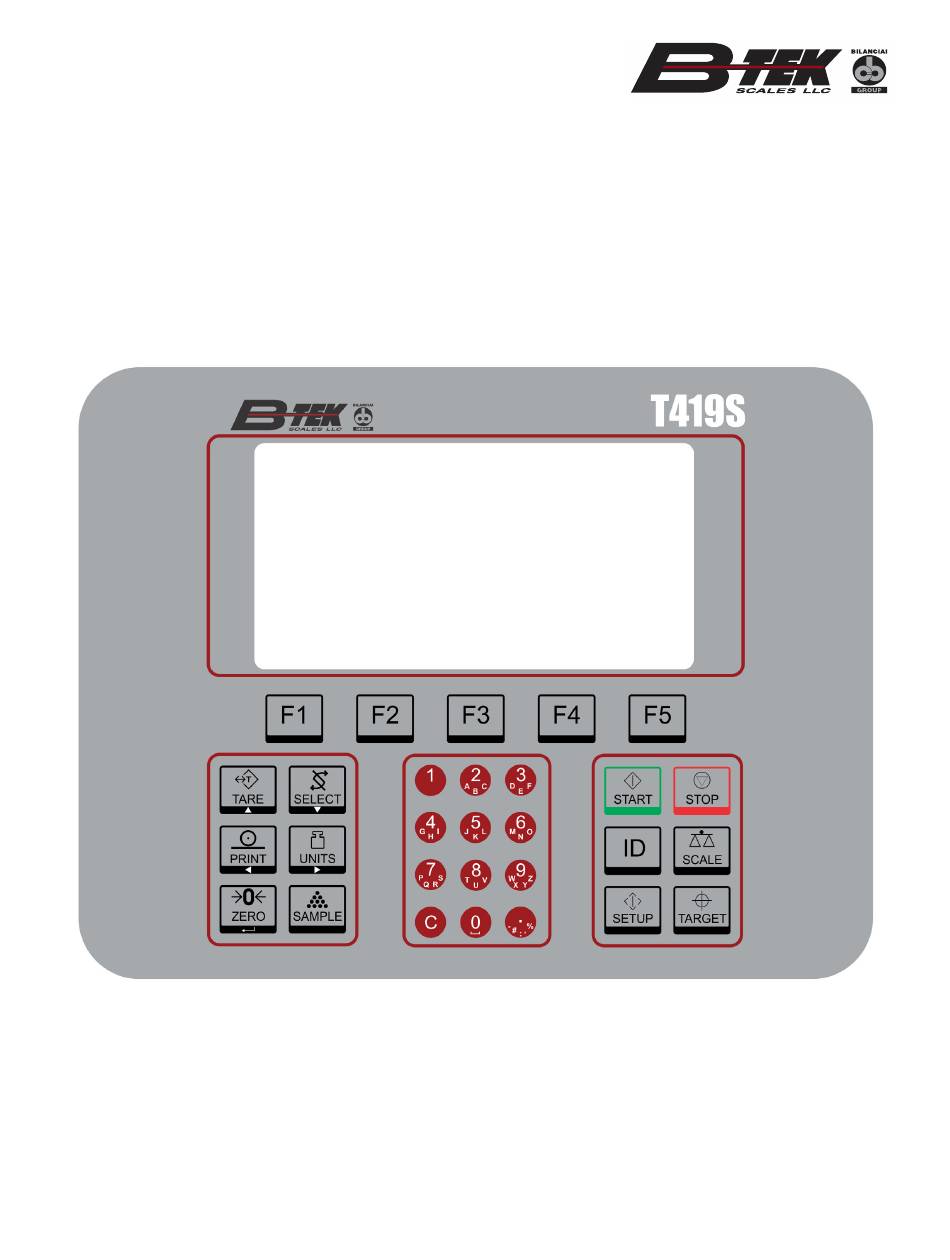

Introduction Figure 2.1 shows the front panel of the T419S indicator which consists of the keys and the graphic display. Figure 2.1 T419S front panel Never press a key with anything but your finger. Damage to the overlay may result if sharp or rough objects are used. - Page 11 The SETUP key can be used to perform custom application functions. It can also be used to view the password entry screen for menu access. SETU P The TARGET key can be used to perform custom application functions. TAR GET T419S Indicator User Instructions...
-
Page 12: Powering Up A T419S Indicator
(-) negative sign. Enter the rest of the digits normally. To enter a decimal point (or comma), on a T419S use the decimal point key. To enter a value less than 1 requires the entry of the leading 0 before a decimal point is allowed. -
Page 13: Escaping Or Exiting From A Menu
The indicator will reboot and return to the startup screen. 2.6 Adjusting screen contrast To decrease or increase the screen contrast press and hold the UNITS key and press the TARE (UP arrow) or SELECT (DOWN arrow) key repeatedly. T419S Indicator User Instructions... -
Page 14: Chapter 3 Operating Instructions
Operating Instructions Operating Instructions The T419S provides multiple tare memory, transaction counter and weight accumulator. SELECT key default function: You can view the gross, net, tare, gross total, net total, tare total and transaction total display values or other configured scale parameters by repeatedly pressing SELECT. -
Page 15: Net Weighing
3. Pressing TARE will perform the tare function but if you continue to press and hold TARE for 3 seconds the display will show cLEArEd and the Tare weight is cleared. T419S Indicator User Instructions... - Page 16 Tare weight is displayed as a negative value and the net weight is displayed and the PT annunciator lights. Place container or box and material to be weighed on the scale … Net weight of material is displayed. T419S Indicator User Instructions...
-
Page 17: Using The Accumulation Function
27 lb Press and hold the PRINT key to print the Total Format shown below (if enabled in the supervisor menu): Chan. # Trans # Gross Total 1077 lb Tare Total 50 lb Net Total 1027 lb T419S Indicator User Instructions... - Page 18 ID: 0 Net Total: 0 lb Transactions: 0 CHAN SETPT ID key (F3) Press the ID key to enter an ID number. The following screen appears. Enter ID 7 Digits Max Clear # / ' % T419S Indicator User Instructions...
-
Page 19: Performing Accumulation Weighments
Accumulation weighing application Use the keypad on the T419S to enter up to seven digits for the ID. When you have entered the ID, press the ENTER key and the following is displayed … Gross Accum Chan: 5 ID: 7841... - Page 20 If enabled, press and hold the PRINT key to transmit current active total channel data out serial port #1. This will also clear the current active channel data if the clear feature is enabled under the Supervisor’s Menu. T419S Indicator User Instructions...
-
Page 21: Chapter 4 Menus
User menu Menus The T419S three user accessible menus: User menu - Use to set Time, Date, Site ID, check Seal status and check Archive information. About menu - Use to see information on the software, firmware, application, serial number, options, ethernet and downloads Audit menu - Use this to check and/or print the calibration and configuration counters. -
Page 22: About Menu
If you access the About menu you will see this menu: Boot Firm Serial Option Enet DLoad Definitions: Bootloader Software that makes the electronics run. Firmware Embedded system software that creates core functions of the product. Specific software that controls the behaviour for a given installation. T419S Indicator User Instructions... - Page 23 Cal. Ser - View the serial number of the cell that WAS connected at the time of calibration. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 13. T419S Indicator User Instructions...
-
Page 24: Audit Menu
USB. Printing to USB will create a folder on the flash drive and a comma separated file with the data. You can exit the menu by following the instructions in Escaping or exiting from a menu on page 13. T419S Indicator User Instructions... -
Page 25: Chapter 5 Error Messages
File doesn’t exist. Create the database. 5.3 BSQ errors BSQ Error Communications error BSQ XCAL BSQ Calibration Mismatch Error - cell that is connected to the scale is not the cell that was calibrated. X = scale number. T419S Indicator User Instructions... -
Page 26: Chapter 6 Supervisor Menu
The display will flash Prn-tot. Tot Fmt This stands for Total Format. This is the designated print format number used for the accumulated totals of the current active channel. (Format 8 is the default). T419S Indicator User Instructions... -
Page 27: Printed Preset Tare Report Example
2524.000000 442.000000 rESEt This clears the entire 200-channel database. This completes the Supervisor menu. To return to normal mode repeatedly press the ESC key to exit. 6.1 Printed Preset Tare report example Tare Index Preset Tare T419S Indicator User Instructions... - Page 28 Supervisor menu T419S Indicator User Instructions...
- Page 30 B-TEK Scale LLC 1510 Metric Ave. SW Canton, OH 44706-3088...
