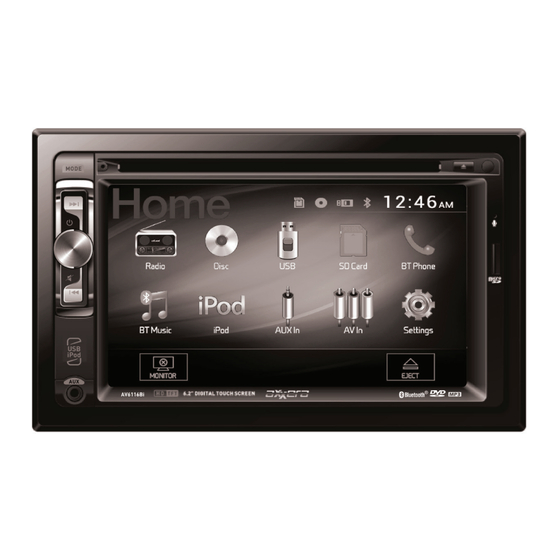

AV6116Bi
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
®
featuring a
6.2"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.
Advertisement
Table of Contents
Related Manuals for Axxera AV6116Bi
Summary of Contents for Axxera AV6116Bi
- Page 1 AV6116Bi INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth ® featuring a 6.2" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
AV6116Bi Table of Contents Page Warning Statement .......... -
Page 4: Warning Statement
AV6116Bi WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside... -
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL AV6116Bi is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
AV6116Bi Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Wiring Diagram
AV6116Bi Wiring Diagram - Inputs/Outputs AMP CONTROL ACC (B+) Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATM mini style fuse located inside the in-line filter box. -
Page 8: Control Locations
AV6116Bi Control Locations Mode Auxiliary Input Tune / Track Up Eject Volume / Power / Mute Microphone Tune / Track Down SD Card Slot USB Port Power Go To Mode EQ / Loudness / End Cal Number Keys Play / Pause... -
Page 9: Remote Preparation
AV6116Bi Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly. -
Page 10: General Operation
AV6116Bi General Operation Momentarily press to turn the unit on. Press and hold to turn Power On/Off the unit off. Rotate the volume knob to increase or decrease the volume level. Volume Momentarily press the volume knob to silence the audio. Momentarily... - Page 11 AV6116Bi General Operation Setup Menu From the Main Menu screen, press SETUP in the bottom right corner to access the Setup menu and select from six categories across the bottom: General, Time, Video, Language, Calibration and SWC. General: • Animation - Select Off, 10 second, 30 second, 1 minute, 90 second, 2 minute, 3 minute or 4 minute to set animation length.
- Page 12 AV6116Bi General Operation Setup Menu Time: • Hour - Press < or > to adjust the hour down or up. • Minute - Press < or > to adjust the minutes down or up. • Format - Select between a 12HR or 24HR clock display.
-
Page 13: Am/Fm Tuner Operation
AV6116Bi AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Tune Frequency Down Press << to tune radio to a lower frequency. Press < to tune the unit down one step at a time. - Page 14 AV6116Bi AM/FM Tuner Operation Press to toggle between Local (LOC) and Distance (DX) tuning. Local / Distance Press to adjust the Loudness setting between Low, High and Off. Loudness Press to toggle between Stereo (ST) and Mono operation, Stereo Press to display the six preset stations stored in memory in the Preset Stations current band.
-
Page 15: Cd/Usb/Sd Card Operation
AV6116Bi CD/USB/SD Card Operation To play audio files from a disc or MP3 files from a disc, USB device or SD CD/USB or SD Operation card, insert disc or device and playback will begin automatically. To return to disc, USB or SD card playback from another mode of operation, select the corresponding icon from the Main Menu. - Page 16 AV6116Bi CD/USB/SD Card Operation Previous Options Press to see the previous screen of options. Mute Press to mute the unit's sound. Press again to unmute, or sound can be restored by adjusting the volume knob of the front panel. Previous File/Track Press to go back to the previous file or track.
- Page 17 AV6116Bi Media Compatibility - CD/DVD File Type Level 1, Level 2 ISO9660 Level 3 Playback ISO9660 JOLIET File System Extension Filename 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5...
- Page 18 AV6116Bi Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44. 1 /48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz...
- Page 19 AV6116Bi Media Compatibility The following types of discs/files are compatible: Media Compatibility • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg2: Max video resolution: 720x480, Max video bit rate: 5000 kbps •...
-
Page 20: Dvd Operation
AV6116Bi DVD Operation Inserting a Disc Insert disc into the slot, and playback will begin automatically. Sub- menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features. Ejecting the Disc Press to eject the disc. - Page 21 AV6116Bi DVD Operation Random Press Random to play chapters in random order or Random Off to play disc in order. Circulate Press to select from the following repeat options: Repeat Chapter, Repeat Title, Repeat All or Repeat Off. Audio Press to adjust Audio options.
-
Page 22: Ipod Operation
AV6116Bi Operation of iPod Operation of iPod Connect an iPod device using the originaliPod cable to listen to music. Playback can be controlled by either the unit's on-screen controls or directly from the iPod. This model does not support video/photo playback. - Page 23 AV6116Bi Operation of iPod 11 12 Mute Press to mute the unit's sound. Press again to unmute, or sound can be restored by adjusting the volume knob of the front panel. Press to go back to the previous song. Previous Track Press to adjust Audio options.
-
Page 24: Bluetooth Operation
The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Axxera BT". Bluetooth passcode "0000". The unit can be in any mode of operation when pairing is performed. - Page 25 AV6116Bi Bluetooth Operation Press to display the keypad and make a call. Dial Press to display a list of recently Received, Missed and Dialed calls. History Press to view active and available Bluetooth connections. Connect Select this option from the Main Menu to access Bluetooth Music Bluetooth Music features.
-
Page 26: Auxiliary Inputs/Rear Camera Operation
AV6116Bi Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). -
Page 27: Warranty
AV6116Bi Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to What to do? state. 1. Before you call for service, check the troubleshooting guide in your owner’s manual. A Dual Electronics Corp. -
Page 28: Specifications
AV6116Bi Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >80dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz... -
Page 29: Troubleshooting
AV6116Bi Troubleshooting General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage (11~16VDC) Unit will not turn on Red wire not connected or incorrect voltage (no power) Black wire not connected Check connection to ground... - Page 30 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2016 Dual Electronics Corp. All rights reserved. NSA0516-V01 Printed in China...
