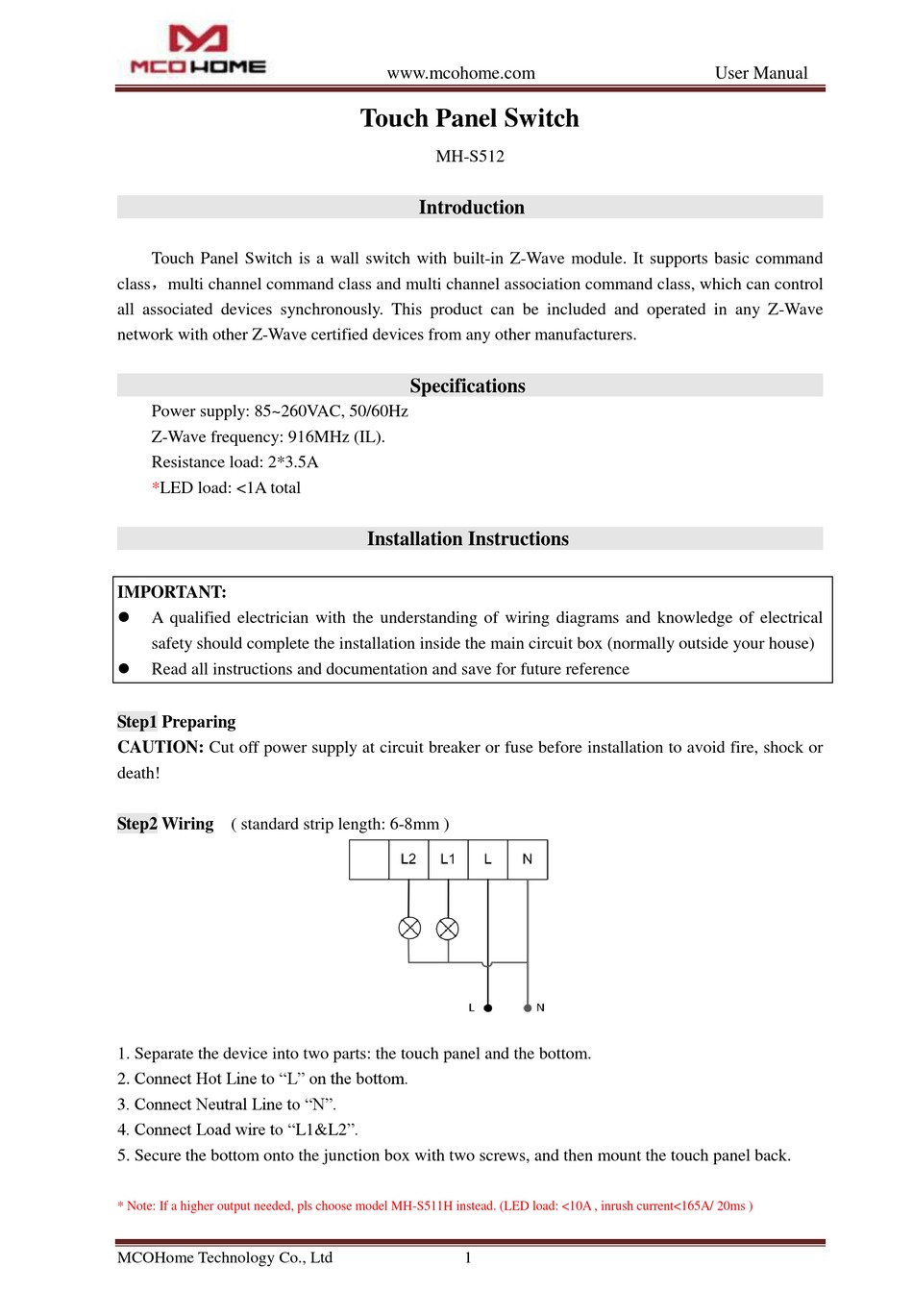

MCOHome MH-S512 User Manual

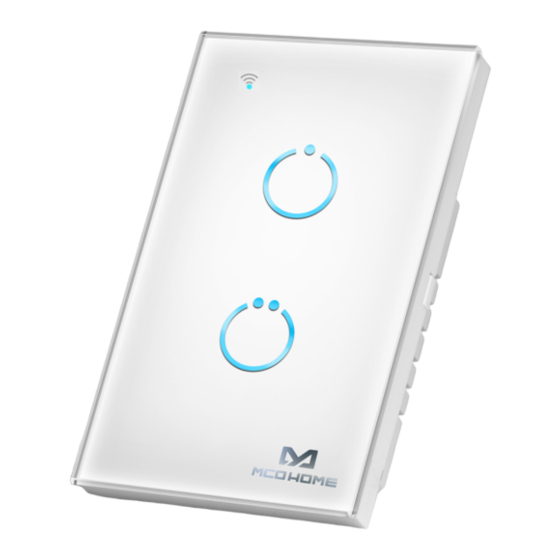

Touch Panel Switch is a wall switch with built-in Z-Wave module. It supports basic command
class，multi channel command class and multi channel association command class, which can control
all associated devices synchronously. This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices from any other manufacturers.
Power supply: 85~260VAC, 50/60Hz
Z-Wave frequency: 916MHz (IL).
Resistance load: 2*3.5A
*LED load: <1A total
IMPORTANT:

A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete the installation inside the main circuit box (normally outside your house)

Read all instructions and documentation and save for future reference
Step1 Preparing
CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock or
death!
Step2 Wiring ( standard strip length: 6-8mm )
1. Separate the device into two parts: the touch panel and the bottom.
2. Connect Hot Line to "L" on the bottom.
3. Connect Neutral Line to "N".
4. Connect Load wire to "L1&L2".
5. Secure the bottom onto the junction box with two screws, and then mount the touch panel back.
* Note: If a higher output needed, pls choose model MH-S511H instead. (LED load: <10A , inrush current<165A/ 20ms )
MCOHome Technology Co., Ltd
www.mcohome.com
Touch Panel Switch
MH-S512

Introduction

Specifications

Installation Instructions

1
User Manual
