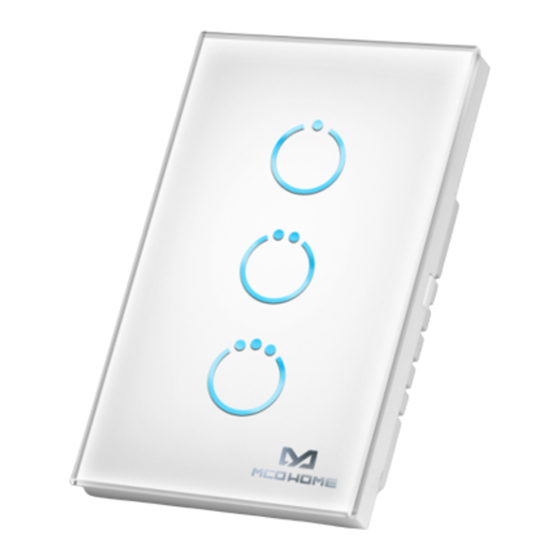

MCOHome Touch Panel Switch is a wall switch with built-in Z-Wave module. It supports basic
command class，multi channel command class and multi channel association command class, which
can control all associated devices synchronously. This product can be included and operated in any
Z-Wave network with other Z-Wave certified devices from any other manufacturers.
Power supply: AC120V, 60Hz
Frequency: 908.42MHz
Max load: 5A each channel
Load type: Incandescent, Fluorescent, Ballast, Motor, CFL
IMPORTANT:
A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete the installation inside the main circuit box (normally outside your house)
Read all instructions and documentation and save for future reference
Step1 Preparing
CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock or
death!
Step2 Wiring
1. Connect Hot Line to "L".
2. Connect Neutral Line to "N".
3. Connect Load wire to "L1--L3".
MCOHome Technology Co., Ltd 2013
www.mcohome.com
Touch Panel Switch
MH-S513-US
Introduction
Specifications
Installation Instructions
User Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MCOHome MH-S513-US
Summary of Contents for MCOHome MH-S513-US

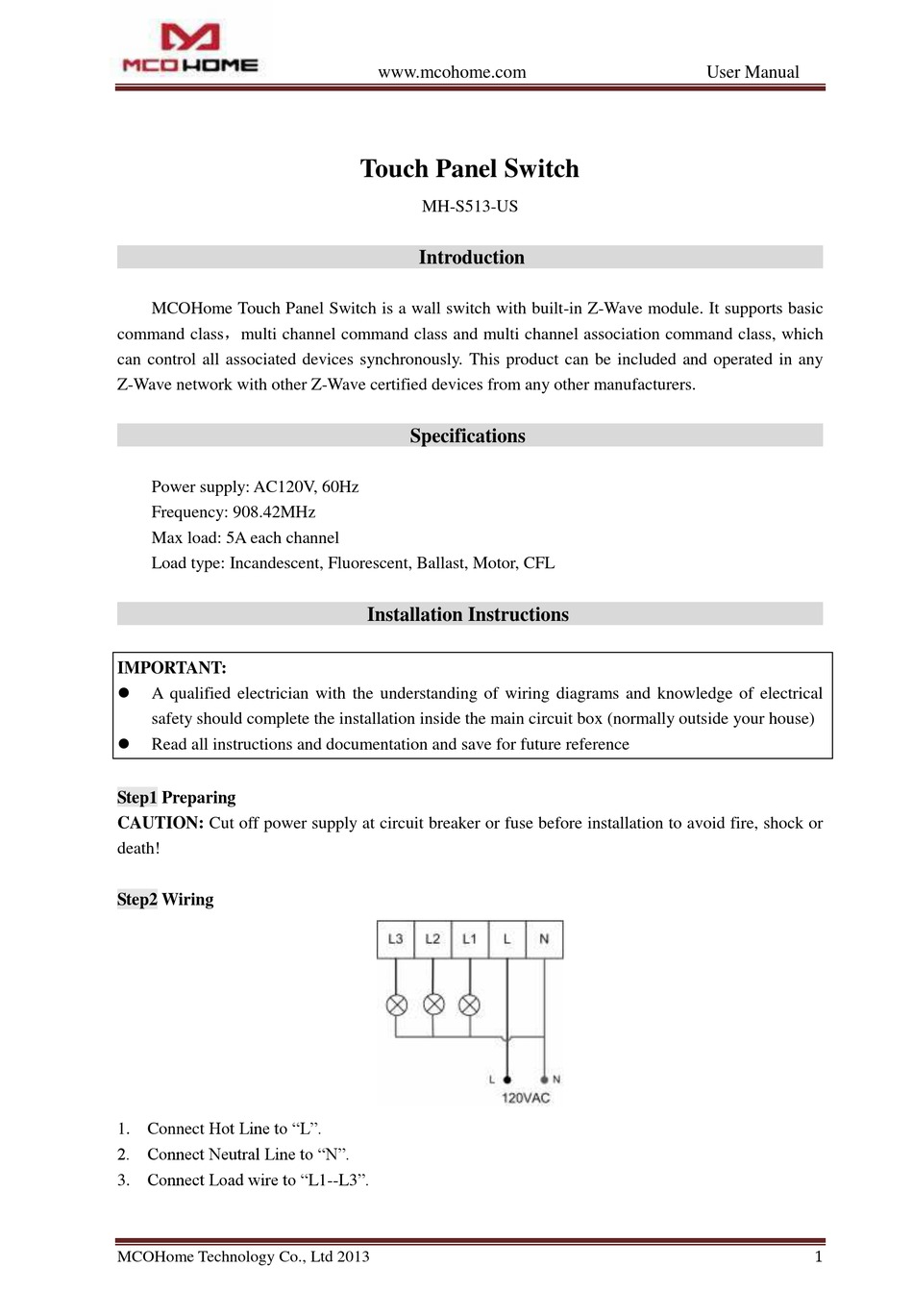

- Page 1 MH-S513-US Introduction MCOHome Touch Panel Switch is a wall switch with built-in Z-Wave module. It supports basic command class，multi channel command class and multi channel association command class, which can control all associated devices synchronously. This product can be included and operated in any Z-Wave network with other Z-Wave certified devices from any other manufacturers.
- Page 2 N controlling group N） ，and each group can support up to 5 nodes or terminals. The association group is used for reporting devices’ state to the controller if any changes happen. This group supports one node, which defaults to controller node. MCOHome Technology Co., Ltd 2013...
- Page 3 MCOHome warrants this product to be free from defects in material and workmanship under normal and proper use for one year from purchase date of the original purchaser. MCOHome will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials.
