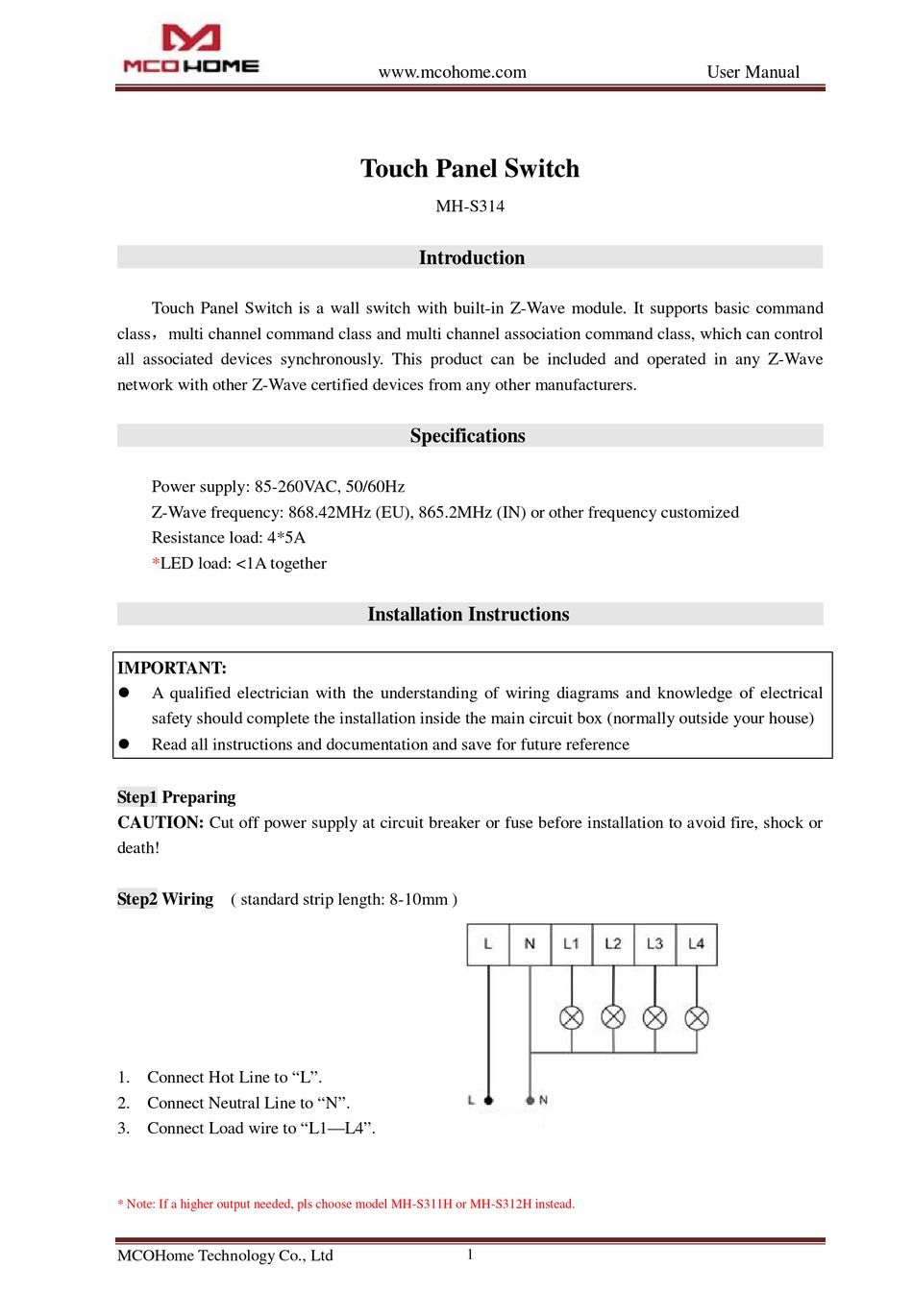

MCOHome MH-S314 User Manual

Touch Panel Switch is a wall switch with built-in Z-Wave module. It supports basic command
class，multi channel command class and multi channel association command class, which can control
all associated devices synchronously. This product can be included and operated in any Z-Wave
network with other Z-Wave certified devices from any other manufacturers.
Power supply: 85-260VAC, 50/60Hz
Z-Wave frequency: 868.42MHz (EU), 865.2MHz (IN) or other frequency customized
Resistance load: 4*5A
*LED load: <1A together
IMPORTANT:

A qualified electrician with the understanding of wiring diagrams and knowledge of electrical
safety should complete the installation inside the main circuit box (normally outside your house)

Read all instructions and documentation and save for future reference
Step1 Preparing
CAUTION: Cut off power supply at circuit breaker or fuse before installation to avoid fire, shock or
death!
Step2 Wiring ( standard strip length: 8-10mm )
1. Connect Hot Line to "L".
2. Connect Neutral Line to "N".
3. Connect Load wire to "L1—L4".
* Note: If a higher output needed, pls choose model MH-S311H or MH-S312H instead.
MCOHome Technology Co., Ltd
www.mcohome.com
Touch Panel Switch
MH-S314

Introduction

Specifications

Installation Instructions

1
User Manual
