General Specification
Digital Timer with START/RESET/GATE input and OUT1 & OUT2 outputs
2x4 7 Segment LED display
Selectable 8 different modes
Counts down hour/minute/second
Loads Timer value & OUT status at the latest power failure after the first power on
EEPROM memory to store settings
230VAC inputs (START/RESET/GATE)
96x96mm front panel
Warning:
!
Use twisted pair and shielded signal cables. Connect shield to ground from the device side. Keep all signal cables away
from circuit breakers, devices/cables emitting electrical noise and power cables.
Take precauitons against environmental conditions like humidity, vibration, pollution and high/low temperature during
installation.
Use a fuse (slow 250mA 250VAC) on supply input of the device. Use appropriate cables for supply connections. Apply safety
regulations during installation.
Technical Specification
:
Panel Hole Size
:
Display
:
Inputs
:
Gate Input
:
Output
:
Time base
: :
Modes
:
Supply Voltage
:
Pow. Consump.
:
Operating Temp.
:
Operating Altitude
91x91mm
2x4 Digit 7 Segment display
START / RESET / GATE
3x230 VAC (0:0-50VAC, 1:150-240VAC)
Inhibits count-down when GATE is ON.
Out1, Out2; 2xRelay (NO-O-NC), 250VAC, 2A, Resistive load
Selectable; 99:59 hours / 99:59 minutes / 599.9 seconds
Selectable 8 different modes
100....240VAC, 50-60Hz
< 8VA
-20 C....55 C
o
o
< 2000m
1
ERD-96M
ENG

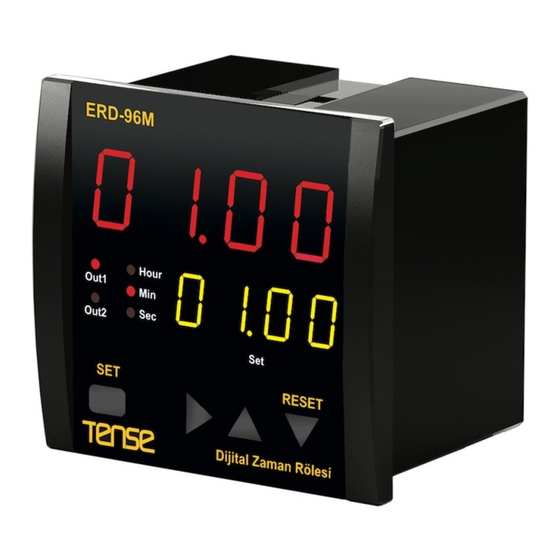

DIGITAL TIMER
MADE IN TURKEY
