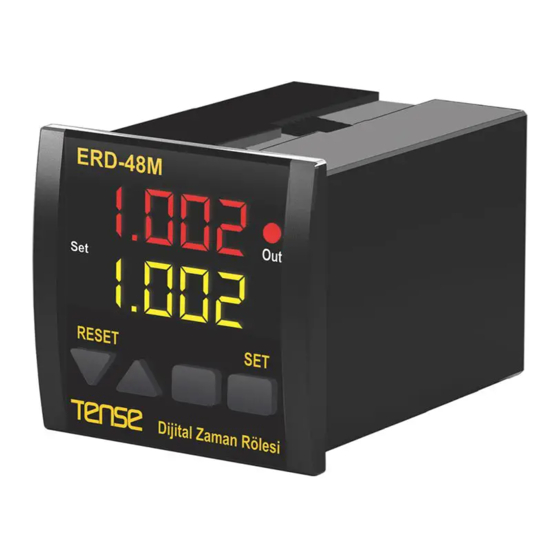

Digital timer

Advertisement

Quick Links

General Specification

Digital ON DELAY Timer with Out1 (Delayed) & Out2 (Instantaneous) outputs
ON DELAY with power ON or Flashing; user selectable
Displays SET or count down values
Front panel selectable time base; 99.9 seconds, 999 seconds, 99.9 minutes, 999 minutes
Front panel dimension: 48x48mm
Easy installation with plug-in connectors

Technical Specification:

:
Panel Hole Sizes
Display
:
:
Function
:
START Input
:
Scale
:
Resolution
:
Accuracy
:
Delayed Output
:
Instant. Output
:
Supply Voltage
:
Power Consump.
Operating Temp.
:
:
Operating Altitude

Warning:

!
Use twisted pair and shielded signal cables. Connect shield to ground from the device side. Keep all signal cables away
from circuit breakers, devices/cables emitting electrical noise and power cables.
Take precauitons against environmental conditions like humidity, vibration, pollution and high/low temperature during
installation.
Use a fuse (slow 250mA 250VAC) on supply input of the device. Use appropriate cables for supply connections. Apply safety
regulations during installation.
46x46mm
1x3 Digit 7 Segment display
Instantaneous and delayed output after START ON or flashing
11 & 12 pins; 100....240VAC, 50/60Hz, max. 3mA
99.9 sec., 999 sec., 99.9 min. veya 999 min (selectable)
0.1 sec. / 1 sec. / 0.1 min. / 1 min
± %1.5 (of SET Value)
Out1; Relay (NO-O-NC), 250VAC, 2A Resistive load
Out2; Relay (NO-O), 250VAC, 2A Resistive load
100....240VAC, 50/60Hz
< 5VA
-20 C....55 C
o
o
< 2000m
1
ERD-48
ENG
DIGITAL TIMER
MADE IN TURKEY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERD-48 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tense ERD-48

  • Page 1 ERD-48 DIGITAL TIMER General Specification Digital ON DELAY Timer with Out1 (Delayed) & Out2 (Instantaneous) outputs ON DELAY with power ON or Flashing; user selectable Displays SET or count down values Front panel selectable time base; 99.9 seconds, 999 seconds, 99.9 minutes, 999 minutes...
  • Page 2 Connection: Load2 Load1 ERD-48 100..240 VAC 50/60Hz 6VA 100..240 VAC 50/60Hz 3mA START Out1 Out2 Dimensions: 15mm 48mm 75mm...
  • Page 3 Read SET Value: Press one of the buttons (Up or Down) Read “Set” (or St.A then St.b) code and Read SET value in a cyclic manner. Wait for SET / St.A 2 seconds without pressing any button. Value Display automatically switches to count-down. Wait for 2 sec.
  • Page 4 Select Mode of Operation & Time Base: Press UP and DOWN buttons at the same time during Power ON Select out : dLY out : dLY; ON DELAY, Mode of out : FLS out : FLS; Flashing Operation Wait for 5 sec. 99.9 sec.
