1.0 Introduction
The unit must remain switched on at all times to maintain
ventilation within the dwelling. Turning the unit off will
cause long term damage to the unit and building fabric.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person for their
safety. Children should be supervised so that they do not
play with the appliance.
MRXBOX95-WM2 wall mounted unit is designed to provide
mechanical supply and extract ventilation with heat recovery.
The unit is fitted with two independent fans. Each fan has full
speed control for background and boost ventilation rates.
To recover heat from the extract air the heat exchanger block
is utilised. The heat exchanger can recover up to 90% of the
normally wasted heat.

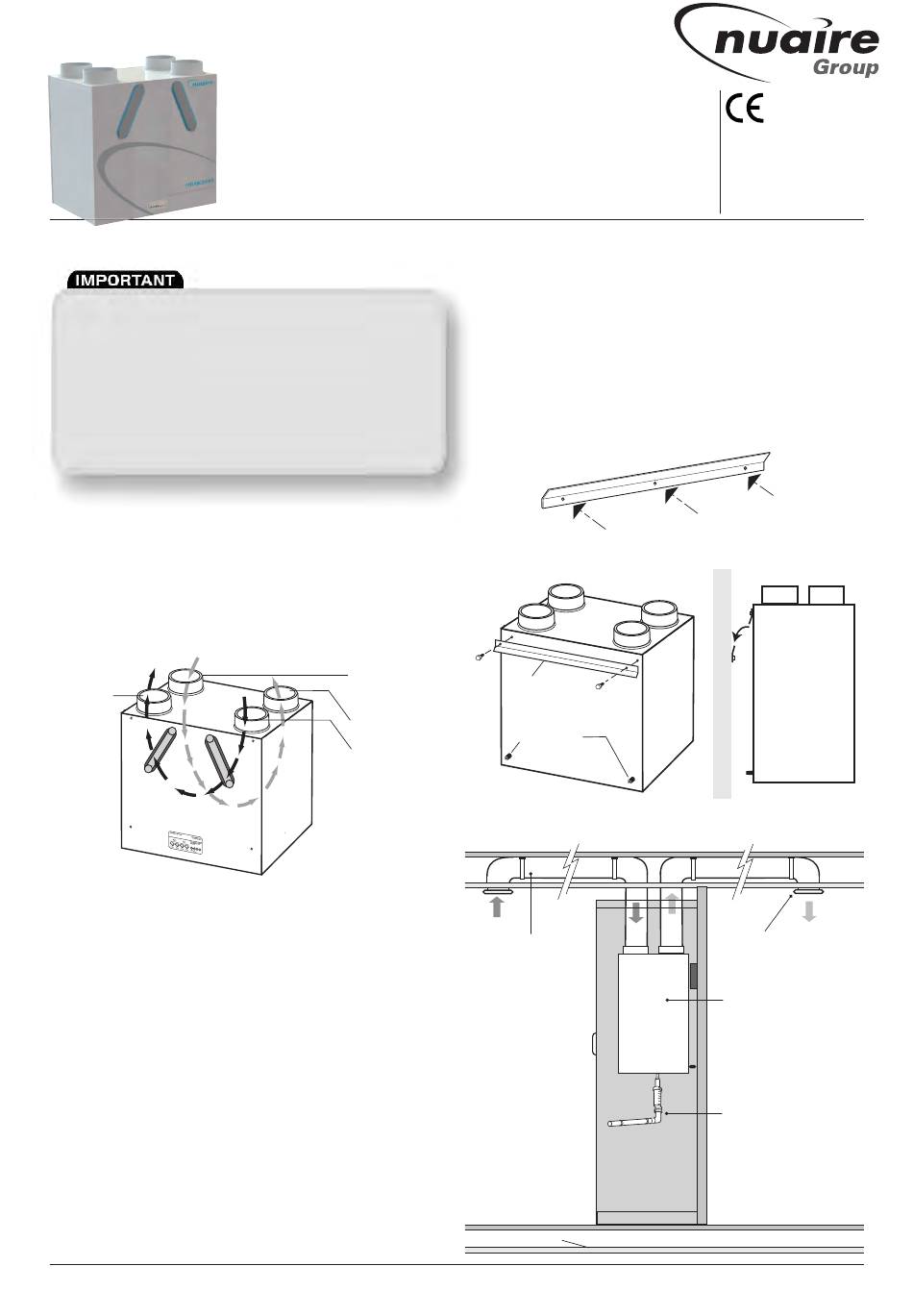

Figure 1. Airflow through unit.
Exhaust air
from house
to outside
2.0 Installation
Installation must be carried out by competent personnel in
accordance with the appropriate authority and conforming
to all statutory governing regulations. All mains wiring must
be in accordance with the current I.E.E. Regulations, or the
appropriate standards. Ensure that the mains supply
(Voltage, Frequency and Phase) complies with the rating label.
Please note a clear working space is required around the
installed unit to allow the cover to be removed and provide
sufficient access for maintenance such as filter change.
Please allow a minimum of 350mm in front of the unit.
The fan must be installed indoors, on a suitable wall away
from direct sources of frost, heat, water spray or moisture
generation. For a vibration-free result the unit must be
mounted to a solid wall.
The unit is designed for wall mounting only via a patress.
1. One part of the mounting bracket should be offered up to
the wall, ensuring it's located horizontally. Mark the fixing
points through the pre drilled holes in the bracket and
Nuaire Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2085 8400 F: 029 2085 8444 E: info@nuaire.co.uk W: www.nuaire.co.uk
MRXBOX95-WM2
Mechanical Ventilation Unit with Heat Recovery
for Wall Mounting
Installation and Maintenance
Intake air
from outside
Supply air
to house
Extract air
from house
install with screws (by others), ensuring the interlock side
is at the top, fig. 2.
2. Fix the remaining part of the bracket to the unit using the
M5 screws ensuring the interlock side is at the bottom, fig.3a.
3. Install the unit on the wall by ensuring the bracket on the
unit interlocks over the wall mounted bracket (fig. 3b).
Note: Care must be taken to ensure the unit is installed true
in all 3 dimensions. Failure to do so may result in overflow
from the internal condensation drip tray.
Figure 2. Fixing the mounting bracket to the wall via a patress.
Figure 3a. Fixing the mounting
bracket to the rear of unit.
Bracket
Pre-fitted
support feet
Figure 4. Typical example of a cupboard mounted unit on a patress
using the bracket.
125mm dia.
ducting in
ceiling void.
First floor ceiling.
1
The EMC Directive
2004/108/EC
The Low Voltage
Directive
2006/95/EC
Figure 3b. Mounting the unit
on the wall mounted bracket.
Supply air valve in ceiling.
Side view of unit
mounted on the
wall in a cupboard.
(Note: The unit must
be fixed to a suitable
patress in upright
position as shown to
comply with safety
regulations).
MVHR-DRAIN
Condensate drain,
uninsulated drain
o
pipe with 10 fall
running to SVP.
