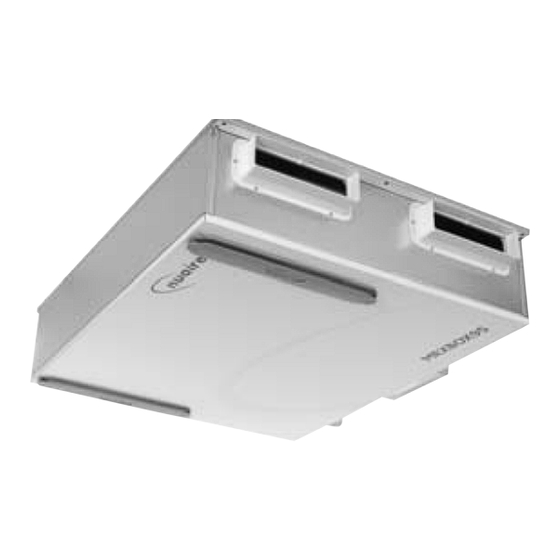

Mechanical ventilation unit with heat recovery & summer bypass for ceiling void mounting. available with optional ecosmart controls

Advertisement

1.0 Introduction
The unit must remain switched on at all times to maintain
ventilation within the dwelling. Turning the unit off will
cause long term damage to the unit and building fabric.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning the use of the appliance by a person for their
safety. Children should be supervised so that they do not
play with the appliance.
MRXBOX95B-LP1E ceiling void mounted unit is designed to
provide mechanical supply and extract ventilation with heat
recovery and incorporates summer bypass.
The unit is fitted with two independent fans. Each fan has full
speed control for background and boost ventilation rates.
To recover heat from the extract air the heat exchanger block
is utilised. The heat exchanger can recover up to 80% of the
normally wasted heat.
The bypass damper opens automatically via a wax actuator when
the outside air reaches 20°C, when the outer air temperature
returns below this level the unit returns to its original state.
Outside air supplied through the bypass is still being filtered,
so the air quality is optimal, irrespective of the bypass setting
(open or closed).
The unit is fitted with a frost protection mode, in the event of the
fresh air temperature dropping below -5 Deg C the supply fan will
switch off. The unit will then automatically switch back on when
the temperature raises back above -5 Deg C.

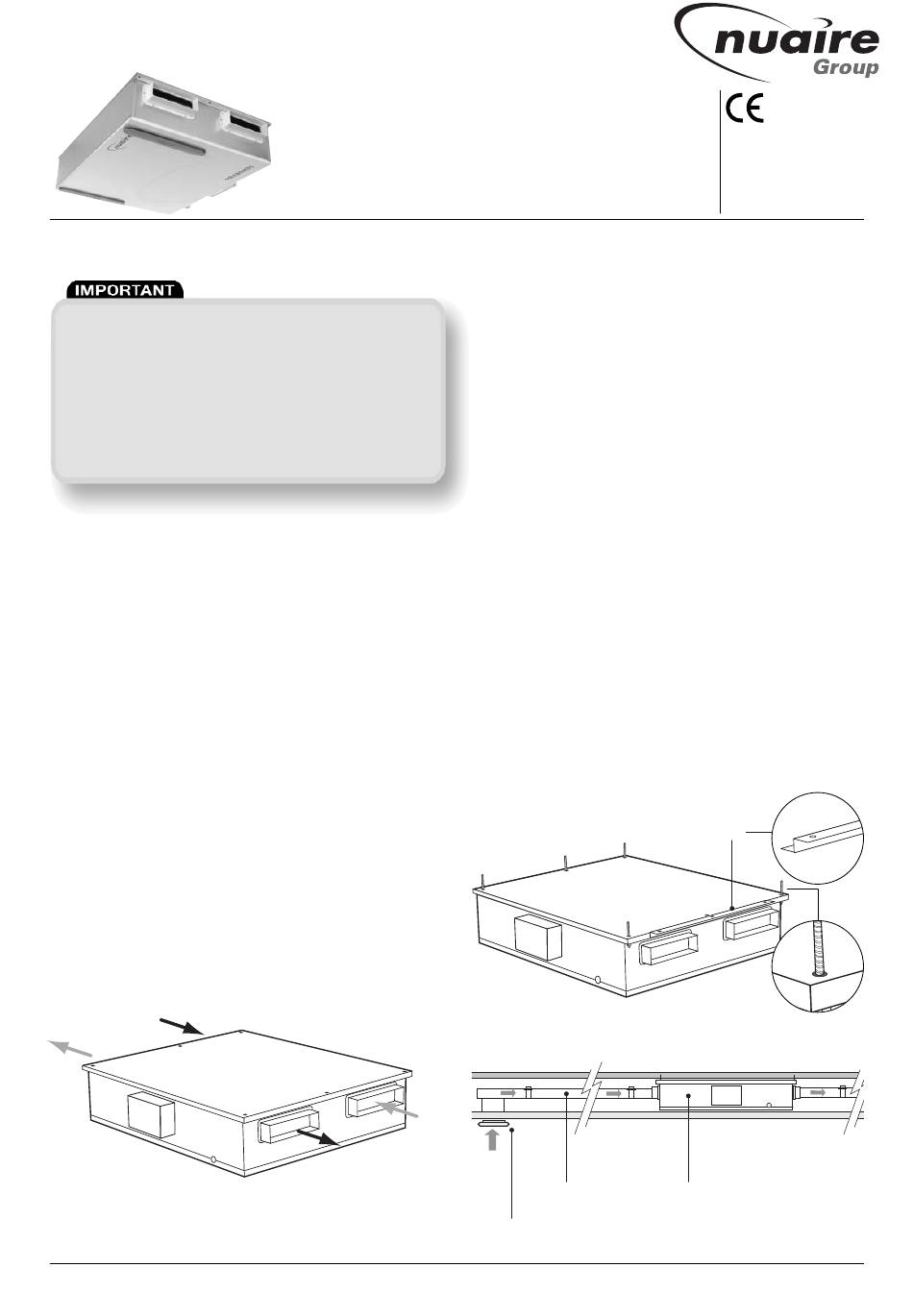

Figure 1. Airflow through unit.
Spigots 1 to 4
1. Intake air (Fresh Air from outside).
2. Supply Air (Supply in to house).
3. Extract Air (Warm air from house).
4. Exhaust Air (Waste air to outside).
Spigot 3.
Spigot 2.
Note: The unit must be installed in an upright position as
shown for the condensate drain and for compliance with safety
regulations relating to IP protection for water drip ingress.
Nuaire Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2085 8400 F: 029 2085 8444 E: info@nuaire.co.uk W: www.nuaire.co.uk
MRXBOX95B-LP1E
Mechanical Ventilation Unit with Heat Recovery
& Summer Bypass for Ceiling Void Mounting.
Available with optional Ecosmart Controls.
Installation and Maintenance
Spigot 1.
Spigot 4.
1
2.0 Installation
Installation must be carried out by competent personnel in
accordance with the appropriate authority and conforming
to all statutory governing regulations. All mains wiring must
be in accordance with the current I.E.E. Regulations, or the
appropriate standards. Ensure that the mains supply (Voltage,
Frequency and Phase) complies with the rating label.
Please note a clear working space is required around the
installed unit to allow the cover to be removed and provide
sufficient access for maintenance such as filter change.
The fan must be installed indoors, in a suitable ceiling void
away from direct sources of frost, heat, water spray or
moisture generation. For a vibration-free result the unit must
be mounted to a solid surface in the void.
The unit is designed for ceiling mounting only (Horizontal
surface).
1. The unit is supplied with a steel mounting bracket.
2. Position & secure the steel bracket to the ceiling using
appropriate fixings (supplied by others), ensuring that the
two outer fixing holes on the unit are accessible.
Note: The mounting bracket should be on the same side as the
condensate take off.
3. The unit can now be offered into position & located into the
mounting bracket.
4. Using appropriate fixings (supplied by others), fix the unit to
the ceiling. It is recommended that the unit is fixed through
three holes on the non-bracket side and the two outer holes on
the bracket side.
Figure 2. Installing the unit using appropriate fixing bolts.
Steel mounting bracket
Figure 3. Typical side view example of a unit mounted in a ceiling
void using 204 x 60mm rectangular ducting and air valves.
204 x 60mm
ducting in
ceiling void.
Air valve
in ceiling.
The EMC Directive
2004/108/EC
The Low Voltage
Directive
2006/95/EC
Side view of unit
mounted in the ceiling void.
24. 06. 13. Leaflet Number 671608

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRXBOX95B-LP1E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Nuaire Group MRXBOX95B-LP1E

  • Page 1 The unit is designed for ceiling mounting only (Horizontal surface). MRXBOX95B-LP1E ceiling void mounted unit is designed to 1. The unit is supplied with a steel mounting bracket. provide mechanical supply and extract ventilation with heat recovery and incorporates summer bypass.
  • Page 2 To prevent condensation on the outside of the outside air inlet duct and the air outlet duct from the MRXBOX95B-LP1E, these ducts should be insulated. Ducting must be installed in such a way that resistance to airflow is minimised.
  • Page 3 Installation and Maintenance MRXBOX95B-LP1E Mechanical Ventilation with Heat Recovery & Summer Bypass 2.5 Air permeability and Step 3: The required airflow rates are as follows: ■ the maximum whole dwelling extract ventilation rate infiltration (e.g. boost) should be at least the greater of step 1 and Is the uncontrolled exchange of air between inside and outside step 2.
  • Page 4 Installation and Maintenance MRXBOX95B-LP1E Mechanical Ventilation with Heat Recovery & Summer Bypass 4.0 Dimensions (mm) Figure 5. Also shows the working space required. View from top with lid (A) View from underside with lid removed (B) 21.5mm condensate pipe Supply...
  • Page 5 Installation and Maintenance MRXBOX95B-LP1E Mechanical Ventilation with Heat Recovery & Summer Bypass 6.0 Electrical Connection Please note: the electrical connection of the unit must be be carried out by a qualified electrician. The unit is supplied with a flexible cord for connection to the mains supply.
  • Page 6 Installation and Maintenance MRXBOX95B-LP1E Mechanical Ventilation with Heat Recovery & Summer Bypass 7.0 Commissioning The filter can now be extracted by pulling the removal loop on the edge of the filter. Once the filters have been inspected return or replace them as necessary.
  • Page 7: Declaration Of Conformity

    EC Machinery Directive. 2) A. Jones Manufacturing Director 12. 05. 12 Designation of machinery: MRXBOX95B-LP1E Machinery Types: Mechanical Ventilation with Heat Recovery & Summer Bypass Relevant EC Council Directives: 2006/42/EC (Machinery Directive)
  • Page 8: Customer Details

    Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Installation Guide and Checklist Mechanical Ventilation with Heat Recovery (Version – 11 February 2011) The Electric Heating and Ventilation Association have developed this guidance and checklist document in partnership with the Residential Ventilation Association (a HEVAC association), BRE and EST.
  • Page 9: Section 1: Installation Guidance

    Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Page 2 of 6 Introduction This document is to be used in support of the SAP Appendix Q scheme which provides tested performance values for MVHR products. Note that all checklist items must be answered YES in order for the SAP Appendix Q test figures to be used in ‘As built’...
  • Page 10 Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Page 3 of 6 Figure 1 Ductwork Visual Guide Source: Approved Document F (England & Wales) 2006 2. Unit Fixing Decision Yes, No or Has the heat recovery unit been effectively insulated? Note: If the unit is not pre-insulated then ensure additional insulation is installed around the unit to minimise heat loss Has the heat recovery unit been fixed to a stable element of the...
  • Page 11 Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Page 4 of 6 Figure 2 Sample Mounting Positions 3. Electrical Connection Decision Yes, No or Has the rating label been verified to establish suitability for the installation strategy and whether an earth is required (e.g. voltage, class I or II product status)? Has a local isolator been provided to enable the unit to be isolated for maintenance purposes?
  • Page 12 Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Page 5 of 6 1. System Balancing & Calibration Decision Yes, No or Has the air flow been checked using a proprietary device such as an anemometer (recommended)? Have the controls been set following a defined process? Refer to figure 3 flow diagram Have all distribution grilles been locked where possible to minimise unapproved occupant adjustment?
  • Page 13 Standard Assessment Procedure 2005 – Appendix Q MVHR Installation Guide Page 6 of 6 2. Handover and Control/Maintenance Advice Decision Yes, No or Has the customer been supplied with suitable documentation detailing maintenance and operational requirements? Has the customer been advised that opening windows is not recommended during normal use in order to ensure the energy efficient operation and performance of the balanced system? Has the customer been advised not to seal natural air flows from...
