Introduction
The Nuaire XS Wall Fan Kit is available in 6, 9 and 12 inch
impeller sizes suitable for supply or extract and can be the
heart of a room's automatic ventilation system.
Ensure adequate air replacement for the fan and any fuel
burning appliance in the room.

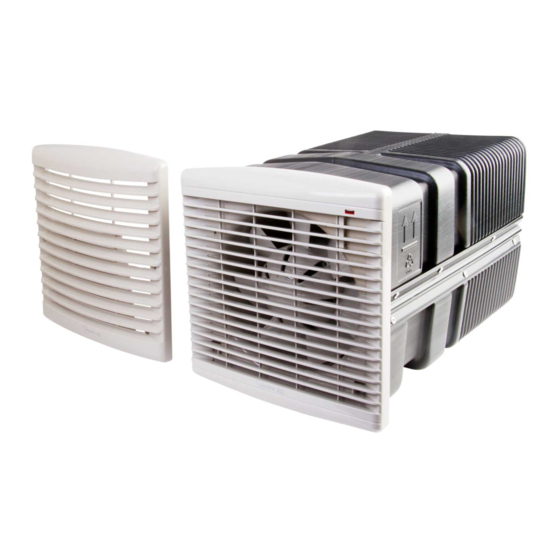

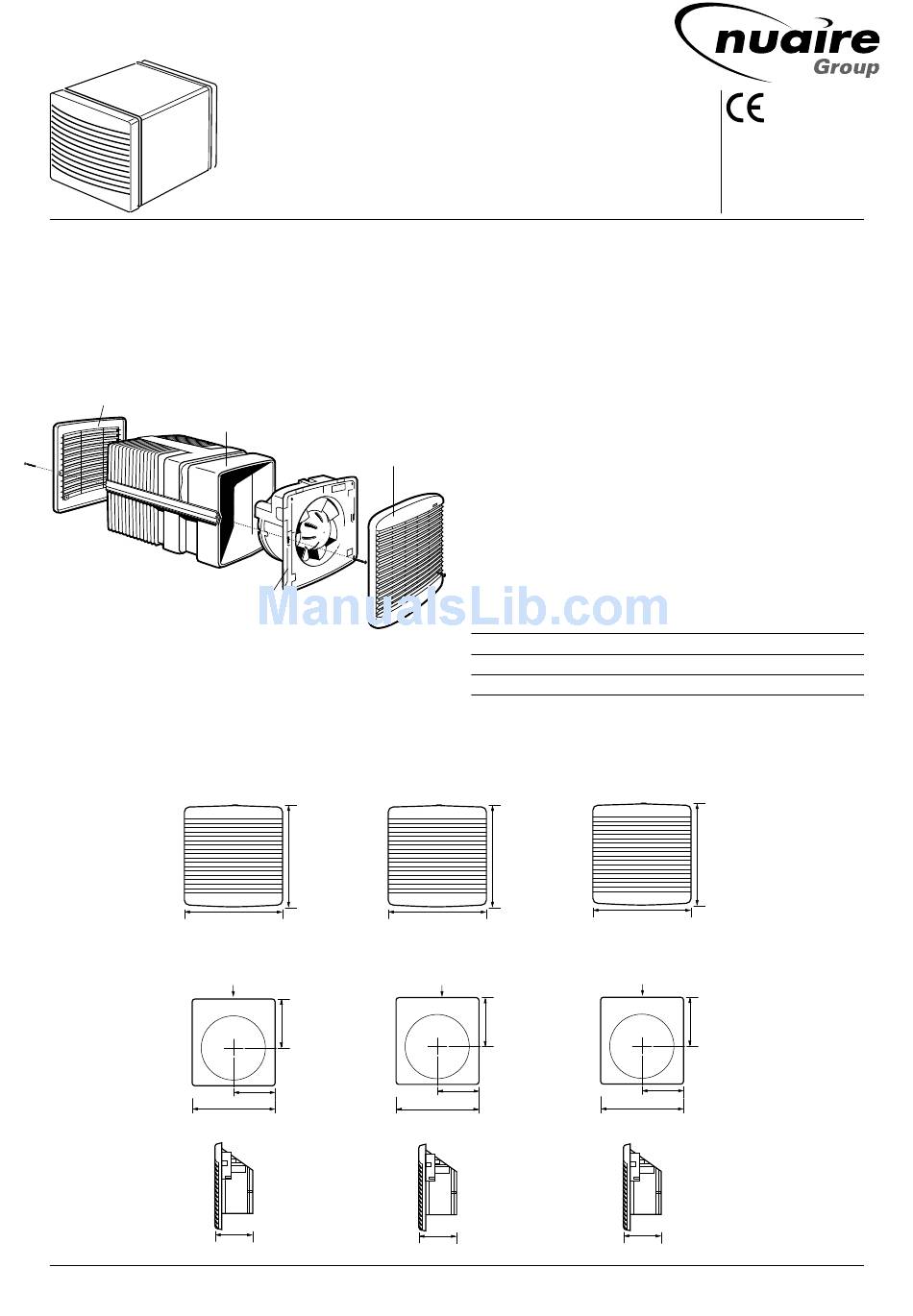

Fig 1 Main components of Wall Fan Kit.
Outer grille
Wall sleeve
Fan assembly
Switching
Operated via a separately wired 3 amp fused spur (by others)
or operated via the optional XS-MFC remote controller allowing
supply or extract, variable speed and automatic or manual
switching of several fans if desired.
Dimensions
Fig 2.
Front view XS6WA (6 inch)
269mm
Rear view
Aperture required
260 x 260mm sq.
Cable entry
269 mm
Side view
128mm
Nuaire Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2088 5911 F: 029 2088 7033 E: info@nuaire.co.uk W: www.nuaire.co.uk
XS Wall Fan Kits
Supply/Extract Units
Installation and Maintenance
Inside grille
XS9WA (9 inch)
272mm
Aperture required
330 x 330mm sq.
137 mm*
*To centre of
'duct'
134 mm*
Sensors
Sensors are available as remote units or integral 'plug in' units.
They are able to control multiple fans, depending on sensor and
fan types. Integral sensors are quick and easy to install and
are aesthetically pleasing, whilst remote sensors give the
benefit of location close to the pollutant source.
Remote sensors can be fitted with an optional security strap to
prevent unwanted tampering.
General
The removable interior grille provides easy access while the
external rotor motor makes for simple removal of the push-on
impeller for cleaning. Upward angled interior grille vanes shield
workings from view and downward sloping external vanes
throw off rain. The fan is IP24 splash proof approved with the
motor rated at IP44.
All external components are made in soft grey colours from
ultra violet stable ABS material so they will blend with most
decors and will not fade in sunlight.
Coding for Wall Fan Kits
Description
6 inch Wall Fan kit complete
9 inch Wall Fan kit complete
12 inch Wall Fan kit complete
Wall Fan Kits are supplied as a complete package with all
wall installation parts included.
XS12WA (12 inch)
342mm
342mm
Cable entry
175mm*
*To centre of
'duct'
171 mm*
337 mm
130mm
1
The EMC Directive
2004/108/EC
The Low Voltage
Directive
2006/95/EC
Code
XS6WA
XS9WA
XS12WA
420mm
420mm
Aperture required
410 x 410mm sq.
Cable entry
214 mm*
*To centre of
'duct'
206 mm*
413mm
169 mm
Leaflet Number 671051 January 2012
