PCB Piezotronics IMI SENSORS EX686B74 Installation And Operating Manual page 44

CSA
U'
GROUP
IM

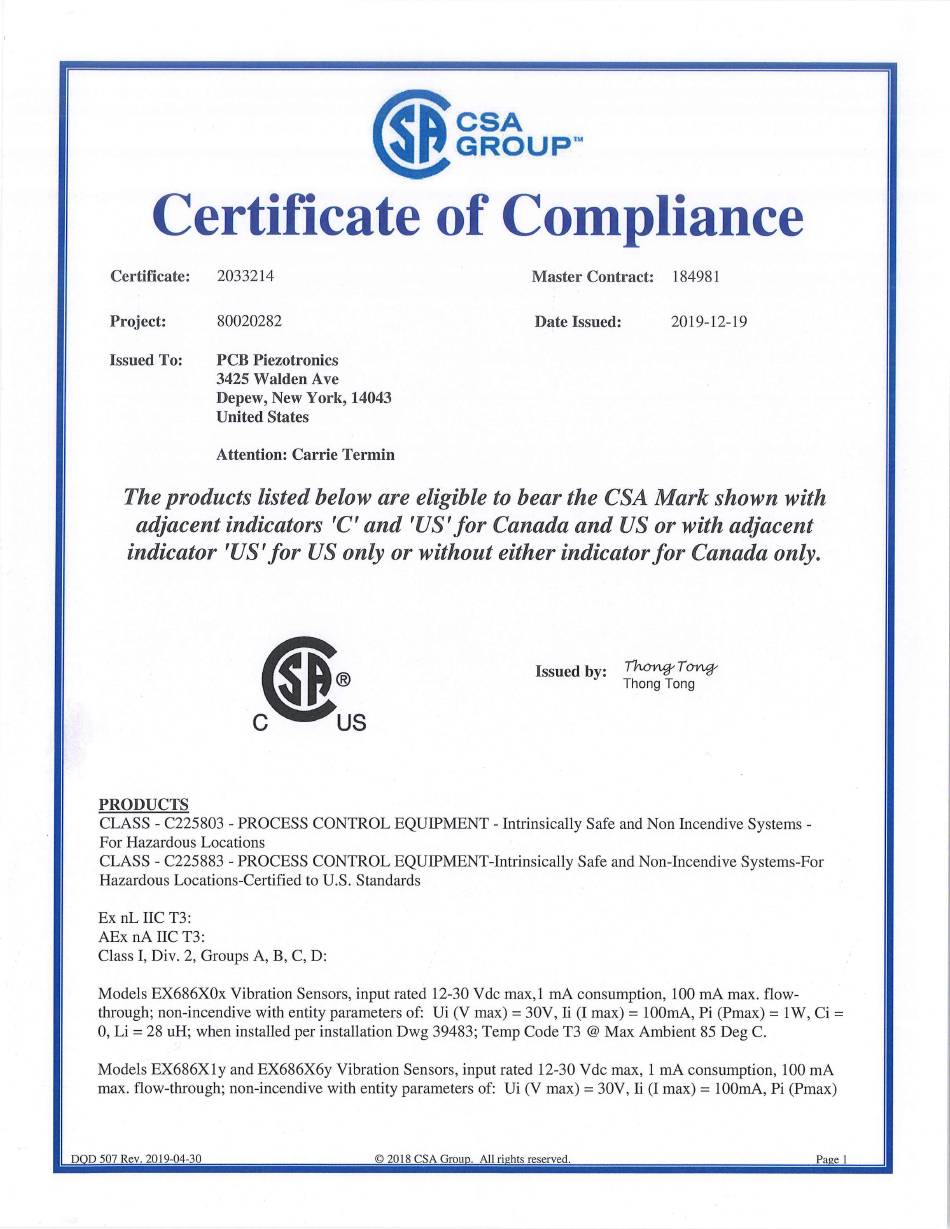

Certificate of Compliance
Certificate:
2033214
Master Contract: 184981
Project:
80020282
Date Issued: 20
19-12-19
Issued To: PCB Piezotronics
3425
Walden Ave
Depew, New York, 14043
United States
Attention: Carrie Termin
The products listed below are eligible to bear the CSA Mark shown with
adjacent indicators 'C' and 'US'for Canada and US or with adjacent
indicator 'US'for US only or without either indicator for Canada only.
Issued by:
c o @
Thong Tong
C us
PRODUCTS
CLASS
-
C225803
-
PROCESS CONTROL EQUIPMENT
-
Intrinsically Safe and Non Incendive Systems
-
For Hazardous Locations
CLASS
-
C225883
-
PROCESS CONTROL EQUIPMENT-Intrinsically Safe and Non-Incendive Systems-For
Hazardous Locations-Certified to U.S. Standards
Ex nL IIC T3:
AEx nA IIC T3:
Class I, Div. 2, Groups A, B, C, D:
Models EX686X0x Vibration Sensors, input rated 12-30 Vdc max,1 mA consumption, 100 mA max. flow-
through; non-incendive with entity parameters of: Ui (V max)
=
30V, li (I max)
=
lOOmA, Pi (Pmax)
=
1W, Ci
=
0, Li
=
28 uH; when installed per installation Dwg 39483; Temp Code T3 @ Max Ambient 85 Deg C.
Models EX686X1y and EX686X6y Vibration Sensors, input rated 12-30 Vdc max, 1 mA consumption, 100 mA
max. flow-through; non-incendive with entity parameters of: Ui (V max)
=
30V, li (I max)
=
lOOmA, Pi (Pmax)
DOD 507 Rev. 2019-04-30 © 2018 CSA Group. All rights reserved.
Page 1
