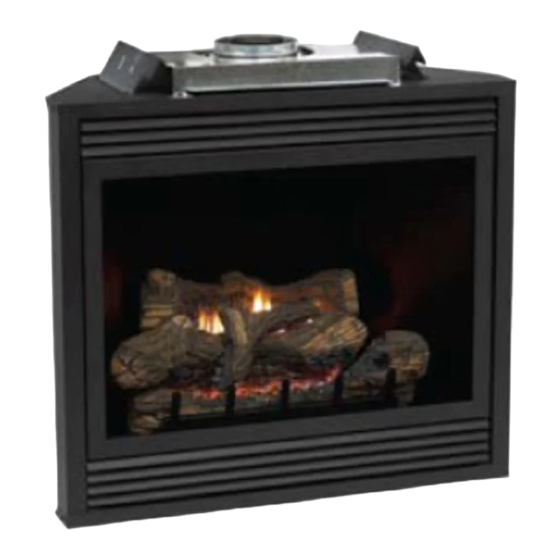

Direct vent zero clearance gas fireplace heater
Hide thumbs Also See for MILLIVOLT DVD32FP30N-3:
Table of Contents

Advertisement

iNstaller:
Leave this manual with the appliance.
coNsUMer:
retain this manual for future reference.
WarNiNG
Fire or eXplosioN HaZarD
if the information in this manual is not
followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHat to Do iF YoU sMell Gas
Do not try to light any appliance.
Do not touch any electrical switch;
do not use any phone in your building.
Leave the building immediately.
Immediately call your gas supplier
from a neighbor's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
WARNING
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals.
Note: Barrier required, but may be sold separately.
iNstallatioN iNstrUctioNs
HOT GLASS
WILL
CAUSE BURNS.
DO NOT TOUCH
GLASS
UNTIL COOLED.
NEVER
ALLOW CHILDREN
TO TOUCH GLASS.
Direct VeNt
Zero clearaNce
Gas Fireplace
Heater series:
MilliVolt (MV)
DVD(32,36,42,48)Fp3(0,1,2,3)(N,p)-3
iNterMitteNt pilot (ip)
DVD(32,36,42,48)Fp7(0,1)(N,p)-
cartoN coNteNts
• accessory sheet
• Hardware Pack
• aa Battery (4) (ip only)
• Junction Box Cover
• logs
WarNiNG
If not installed, operated and maintained in
accordance with the manufacturer's instructions,
this product could expose you to substances in
fuel or from fuel combustion which can cause
death or serious illness.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by
state or local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.
2
• Rockwool
• registration card
• Power Adaptor (IP only)
• Receptical
• Decorative Rocks
Page 1
