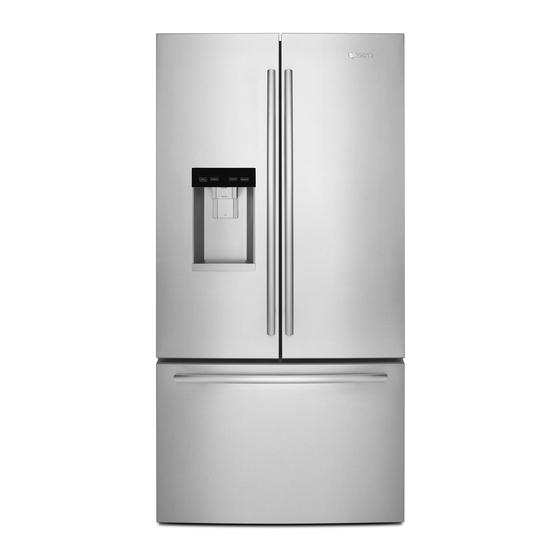

- Page 1 JENN-AIR FRENCH DOOR ® REFRIGERATOR RÉFRIGÉRATEUR ENCASTRÉ CÔTE À CÔTE JENN-AIR ® USE AND CARE GUIDE For questions about features, operation/performance, parts, accessories, or service, call 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com. In Canada, call 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.
-
Page 2: Table Of Contents
TABLE OF CONTENTS REFRIGERATOR SAFETY ..............3 REFRIGERATOR USE ..............21 PARTS AND FEATURES ..............4 Opening and Closing Doors ............21 What’s New Behind the Doors? ...........5 Using the Controls ..............22 GETTING STARTED ...............6 External Dispenser Controls ............24 REFRIGERATOR CONNECTIVITY FEATURES ......7 Lighting the Refrigerator ............24 CONNECTIVITY SETUP ..............8 Water and Ice Dispensers ............24 INSTALLATION INSTRUCTIONS ..........10... -
Page 3: Refrigerator Safety
REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER”... -
Page 4: Parts And Features
Proper Disposal of Your Old Refrigerator WARNING Suffocation Hazard Remove doors from your old refrigerator. Failure to do so can result in death or brain damage. IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous—even if they will sit for “just a few days.”... -
Page 5: What's New Behind The Doors
What’s New Behind the Doors? Your Jenn-Air French door refrigerator comes equipped with various ® innovative storage and energy-efficient features. Obsidian Interior Electronic Temperature-Controlled Pantry Drawers This dramatic interior showcases food items throughout the These drawers provide precise, independent temperature control refrigerator and provides a sharper contrast than white interiors. -
Page 6: Getting Started
GETTING STARTED INSTALLATION CHECKLIST DOOR ALIGNMENT ✔ Electrical Power Align Refrigerator Doors Plug refrigerator into a grounded 3 prong outlet. ■ ✔ Doors ✔ If doors are uneven: If doors need to be removed during installation, see the ■ Ensure the refrigerator is level. ■... -
Page 7: Refrigerator Connectivity Features
(on some models) Wi-Fi connectivity allows your Smart Refrigerator to connect to the Internet and interact with the Jenn-Air app from your smartphone or mobile device. This connection opens up several Smart options to you — options intended to save you valuable time and energy. Refer to the “Troubleshooting—Connected Models”... -
Page 8: Connectivity Setup
1-877-559-2603. NOTE: If this is your first Smart Appliance, you will need to download the Jenn-Air app and create an online user account. If you already have the app and a user account, please skip ahead to Step 4 “Register your refrigerator in your user account.”... - Page 9 Jenn-Air app. Once installed, tap the Jenn-Air app icon to open the app. You will be guided through the steps to set up a user account. The app will make sure to get the necessary personal and home...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Unpack the Refrigerator Location Requirements WARNING WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. Explosion Hazard Refrigerator Delivery Keep ammable materials and vapors, such as gasoline, away from refrigerator. -
Page 11: Remove And Replace Refrigerator Doors
Remove and Replace Refrigerator Doors NOTE: Measure the width of your house door opening to see whether or not you need to remove the refrigerator doors to move the refrigerator into your home. If refrigerator door removal is necessary, see the following instructions. IMPORTANT: If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator control off. - Page 12 WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. Bottom Door Hinge For your convenience, the refrigerator doors have bottom hinges with door closers. These closers allow the doors to swing fully A.
- Page 13 4. Using the TORX screwdriver, remove the 2 screws from ® ® the top hinge and set aside. 3. Disconnect the wiring plug located on top of the door hinge. Grasp each side of the wiring plug. With your left thumb, ■...
-
Page 14: Remove And Replace Freezer Drawer Fronts
Replace Drawer Front Replace Right-Hand Refrigerator Door 1. Pull out the freezer drawer glides to their full extension. 1. Set the right-hand door onto the bottom hinge pin. 2. Holding the drawer front by its sides, align the top screws, located at the bottom inside the drawer front, with the drawer 2. -
Page 15: Electrical Requirements
If your refrigerator has a water filter, it may further reduce ■ Electrical Requirements the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See the “Water Filtration System” section. If you have questions about your water pressure, call a licensed, WARNING qualified plumber. -
Page 16: Handle Installation And Removal
4. Now you are ready to connect the copper tubing to the Complete the Installation shut-off valve. Use ⁄ " (6.35 mm) O.D. (outside diameter) soft copper tubing to connect the shut-off valve and the refrigerator. WARNING Ensure that you have the proper length needed for the job. ■... - Page 17 3. Firmly push the handle toward the door until the handle base is flush against the door. 4. While holding the handle, insert the short end of the hex key into the upper hole and slightly rotate the hex key until key is engaged in the setscrew.
-
Page 18: Refrigerator Leveling And Door Closing
Continue to turn the alignment screw until the doors are ■ Refrigerator Leveling aligned. and Door Closing The base grille covers the adjustable brake feet and roller assemblies located at the bottom of the refrigerator below the freezer drawer. Before making any adjustments, remove the base grille and move the refrigerator to its final location. - Page 19 The water filter status lights will help you know when to change your water filter. The app will also send notifications to your mobile device and tell you the status of the Jenn-Air app for the filter life. ORDER FILTER (yellow) - It is almost time to change the ■...
-
Page 20: Install Freshflow™ Air Filter
Install FreshFlow™ Air Filter Install Produce Preserver (on some models) An air filter is 15 times more powerful than baking soda at reducing common food odors inside the refrigerator. The produce preserver absorbs ethylene to slow the ripening On some models, your refrigerator’s accessory packet includes process of many produce items. -
Page 21: Accessories
Accessories REFRIGERATOR USE The following accessories are available for your refrigerator. Opening and Closing Doors To order an accessory, contact us and ask for the part number. In the U.S.A., visit our website www.jennair.com/accessories or call 1-800-JENNAIR (1-800-536-6247). There are 2 refrigerator compartment doors. The doors can In Canada, visit our webpage www.jennair.ca or call be opened and closed either separately or together. -
Page 22: Using The Controls
Using the Controls View Temperature Set Points The touch-activated controls are located above the external dispenser and on the side of the left inner refrigerator door. 1. Touch [+]/[—] for refrigerator or [+]/[—] for freezer toggle through temperature set points. NOTE: To view temperature in degrees Celsius, touch and hold the [°F/°C] button for 3 seconds and the temperature display will change. - Page 23 If you unintentionally turn on Sabbath mode, Filter Status the word “Sabbath” will light up on the display. Enter and exit The Jenn-Air app will send an alert that displays the water filter Sabbath mode by pressing and holding °F/°C and SOUND at the status.
-
Page 24: External Dispenser Controls
External Dispenser Controls Water and Ice Dispensers The control is located above the external dispenser of the IMPORTANT: refrigerator. Allow 3 hours for the refrigerator to cool down and chill water. ■ Allow 24 hours to produce the first batch of ice. Discard the ■... - Page 25 Save Favorite Fill Calibrate Measured Fill Household water pressure may affect the accuracy of the Household water pressure may affect the accuracy of the Favorite Fill feature. So, for optimum performance of your water dispenser, Measured Fill feature. So, for optimum performance of your you must first calibrate Measured Fill.
- Page 26 5. To pause dispensing before the selected volume has been Dispensing Water dispensed, touch DISPENSE WATER a second time or touch the water dispenser paddle. Touch DISPENSE WATER or IMPORTANT: paddle again to resume dispensing remaining amount. Dispense at least 1 qt (1 L) of water every week to maintain ■...
-
Page 27: Ice Maker And Storage Bin
The Ice Dispenser The Dispenser Drip Tray a1 oz = b1 L Replace Filter "#$#! a2 oz = b2 L Order Filter Door Calibration a3 oz = b3 L Ajar Dispense IMPORTANT: The drip tray can be removed to carry to the sink to empty %&#'#(')!"#$# ! or clean. - Page 28 Ice Production Rate Style 1 - Ice Maker in the Refrigerator The ice maker should produce approximately 3.2 lbs (1.5 kg) ■ of ice per day under normal operation. The ice maker is located on the left door behind the bins. Ice To increase ice production, select the “Max Ice”...
-
Page 29: Shelves, Bins, And Drawers
Shelves and Shelf Frames Shelves, Bins, and Drawers The shelves in your refrigerator are adjustable to meet your Fold-Away Glass Shelf individual storage needs. Storing similar food items together in your refrigerator and Some shelves will tuck away to create room for taller objects. adjusting the shelves to fit different heights of items will make Some models have 2 fold-away glass shelves. - Page 30 Pull-Out Platter To remove and replace Pull-Out Platter: NOTE: Refrigerator doors will need to be removed to remove platter pocket. See the “Remove and Replace Refrigerator Doors” section for more information. 1. Pull the pull-out platter to the fully open position or when it stops.
-
Page 31: Freezer Drawers
Freezer Drawers Audio Reference Small Items Bin (on some models) Tone Assignment This drawer divider is not removable and is for small, delicate Tone Name Usage Examples items. For storage flexibility, the drawer bin can move forward POWER ON Cooling system is turned on every time the and back, allowing you to store larger items in one section of product is powered on. -
Page 32: Refrigerator Care
DO USE DO NOT USE REFRIGERATOR CARE ✔ Soft, clean cloth ✘ Abrasive cloths ✘ Paper towels or newsprint Cleaning ✘ Steel-wool pads ✔ Warm, soapy water ✘ Abrasive powders or liquids WARNING with a mild detergent ✘ Ammonia ✘ Citrus-based cleaners ✘... -
Page 33: Lights
Moving Lights When you are moving your refrigerator to a new home, follow The lights in both the refrigerator and freezer compartments these steps to prepare it for the move. are LEDs which do not need to be replaced. If the lights do not 1. -
Page 34: Troubleshooting-Connected Models
Wi-Fi router, but be unavailable. Jenn-Air app does not User account has not been properly See the “Connectivity Setup” section or the Jenn-Air app directly work. set up or the refrigerator has not for account setup and refrigerator registration instructions. -
Page 35: Troubleshooting
1-800-253-1301. In Canada, visit www.jennair.ca. Contact us by mail with any questions or concerns at the address below: In the U.S.A.: In Canada: Jenn-Air Brand Home Appliances Jenn-Air Brand Home Appliances Customer eXperience Center Customer eXperience Centre 553 Benson Road 200 –... - Page 36 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.jennair.custhelp.com. If you experience Possible Causes Solution Refrigerator Operation (cont.) The motor seems to run High-efficiency compressor and fans Larger, more efficient refrigerators run longer at lower, more too much.
- Page 37 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.jennair.custhelp.com. If you experience Possible Causes Solution Unusual Noise (cont.) Rattling/Banging Movement of the water lines against Move excess water line away from the refrigerator cabinet or the refrigerator cabinet or of items fasten excess tubing to the cabinet.
- Page 38 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.jennair.custhelp.com. If you experience Possible Causes Solution Temperature and Moisture (cont.) There is frost/ice The drawer is opened often or left Minimize drawer openings and close drawer completely buildup in the freezer open.
- Page 39 3 batches of ice produced. off-flavored ice and water. Using a water supply connection type It is recommended to use copper tubing or Jenn-Air supply line, ® other than recommended Part Number 8212547RP.
- Page 40 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.jennair.custhelp.com. Ice and Water (cont.) If you experience Possible Causes Solution The water and ice The refrigerator door or freezer Close the door or drawer firmly. If it does not close completely, dispenser will not drawer is not closed completely.
- Page 41 TROUBLESHOOTING First try the solutions suggested here or visit our website at www.jennair.custhelp.com. If you experience Possible Causes Solution Ice and Water (cont.) Crushed or cubed ice The glass is not held close enough to Hold the glass close to where the ice exits the chute. misses the glass when where the ice exits the chute.
- Page 42 Connected Appliance Regulatory Notices Federal Communications Commission Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et (FCC) Compliance Notice d’un gain maximal (ou inférieur) approuvé pour l’émetteur par This equipment has been tested and found to comply with the limits Industrie Canada.
- Page 43 Connected Appliance Regulatory Notices (cont.) Open Source License Usage The following statements refer to those portions of the software copyrighted by Swedish Institute of Computer Science. The following statements refer to the portions of this software Copyright (c) 2001-2004 Swedish Institute of Computer Science. based in part on FreeRTOS v7.0.2, http://www.freertos.org.
-
Page 44: Performance Data Sheet
PERFORMANCE DATA SHEET PERFORMANCE DATA SHEET Water Filtration System Model P9WB2L/P9RFWB2L Capacity 200 Gallons (757 Liters) System tested and certified by NSF International against NSF/ANSI Standard 42, Standard 53, Standard 401, and CSA B483.1 for the reduction of contaminants specified on the Performance Data Sheet. -
Page 45: Warranty
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.
