Summary of Contents for Jenn-Air JFC2089HEP13

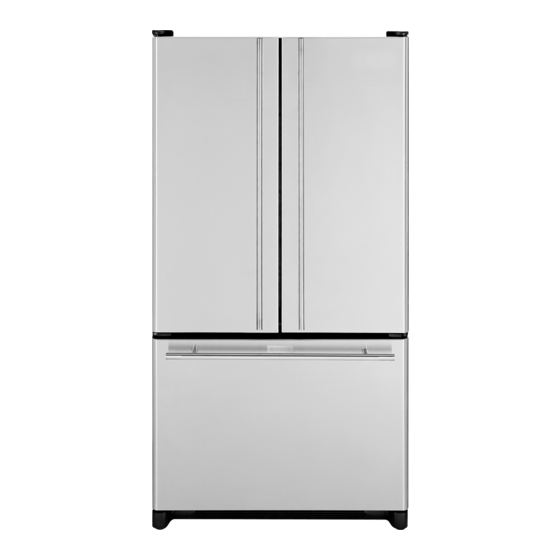

- Page 1 CABINET PARTS REFRIGERATOR For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) 12−08 Litho In U.S.A. (mat)(bay) Part No. W10242320 Rev.A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cover, Left Hinge Grille, Toe Literature Parts 8208248 Black W10131134 Black 67006616 Tech Sheet 67006303 Screw (6) 23 M0108105 Clamp, Tube W10137647 Owners Manual Hinge, Center 67006425 Screw (10) 67005643 Energy Guide... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) W10242320... - Page 4 FREEZER LINER PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 67001291 Gasket, Foam 67005874 Guide, Fill Tube 67003905 Cover, Light 67003636 Motor, Evaporator Y12570701 Socket, Light 12002355 Thermistor 67003924 Cover, Thermistor A0282812 Bulb, Light 67001035 Housing, Light 67005873 Cover, Evaporator 67006425 Screw (4)
-
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) W10242320... - Page 6 REFRIGERATOR LINER PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67004078 Module, Light 67005445 Keyboard 67005444 Module, Control 67005397 Board, Control C3680310 Switch, Light (2) 67003897 Cover, Light 67003901 Housing, Light A0282812 Bulb, Light (2) Y12570701 Socket, Light (2) 67003900 Insert, Damper Cover...
-
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) W10242320... - Page 8 REFRIGERATOR DOOR PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part DESCRIPTION Door, Left 13024033SQ Stainless Door, Right 13024031SQ Stainless 67003637 Door, Dairy 67001279 Tray, Dairy 67004748 Bin, Shelf (3) 67006786 Screw 7 W10133608 Screw, Mount Gasket, Door (2) 12723206B Black 67006109 Mount, Handle 67002731 Bushing, Door (Bottom Right)
-
Page 9: Unit Parts
UNIT PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) W10242320... - Page 10 UNIT PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006433 Screw Following Parts Not Illustrated 2 W10162928 Blade, Fan 67001084 Right Side and Optional Parts Not Included 67005889 Basepan 67001083 Left Side 67006425 Screw (2) 67004432 Motor, Fan 67005491 Block, Condenser...
-
Page 11: Shelf Parts
SHELF PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) W10242320... - Page 12 SHELF PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part DESCRIPTION 67002332 Glass, Pantry 67002321 Divider, Pantry Drawer 67006608 Screw 67006010 Extr, Glass Support (2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 67004127 Divider, Upper Basket 67002329 Gasket, Pantry 67005625 Housing, Control 67003021 Shelf, Glide (4) 67003793 Slide, Temperature 67006415 Screw (4)
-
Page 13: Freezer Door Parts
FREEZER DOOR PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part DESCRIPTION Door, Freezer W10185588 Stainless Handle, Door 12850909 (JFC2089HES13) 12859110 (JFC2089HEP13) Gasket, Door W10131754 Black 67006109 Mount, Handle 5 W10133608 Screw, Mount Plug, Button (2) 67004838 Black W10242320... -
Page 14: Icemaker Parts
ICEMAKER PARTS For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006662 Screw 1 W10122527 Mold & Heater 627985 Thermostat Assembly (Also (Also Order 542369 67004710 Cover Cement) 626678 Module Assembly Order 542638 489464 Screw (3) 489276 Screw (3) Grease) 67001255 Pan, Ice... - Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: JFC2089HES13, JFC2089HEP13 (Stainless) (Stainless) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Miscellaneous TORX SCREW WRENCH Parts Not Illustrated and Optional Parts (Not Included) 1117510 Torx Key 212643 Sealer, Gum (4 Feet) PAINT, TOUCH−UP (1/2oz.) 479502 Tape, Vinyl (3/4 x 108") 876370 Kit, Insulation...
