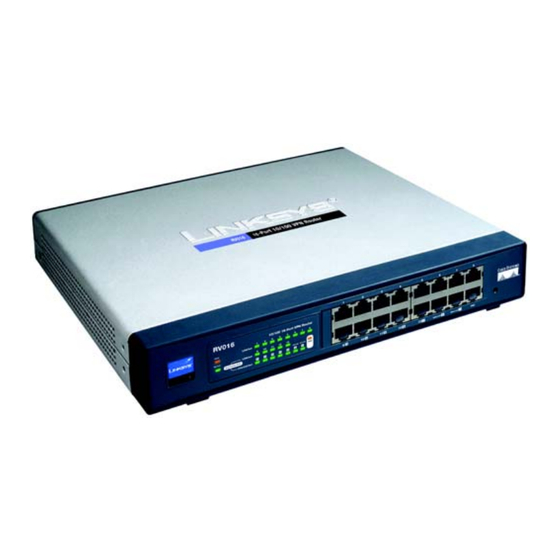

Cisco 10/100 16-Port VPN Router RV016 Quick Installation Manual

Cisco systems 10/100 16-port vpn router quick installation.
Hide thumbs


Advertisement

®
A Division of Cisco Systems, Inc.
Package Contents
• 10/100 16-Port VPN Router
• User Guide CD-ROM
• AC Power Cable
• Rack Mounting Kit
• Quick Installation
• Registration Card
Quick Installation
10/100 16-Port
VPN Router
Quick Installation
WIRED
RV016
Model No.
Model No.
1

Connect the Router

A
Before you begin, make sure
that all of your hardware is
powered off, including the
Router, PCs, hubs, switches,
and cable or DSL modem.
B
Connect one end of an Ether-
net network cable to one of
the numbered ports on the
front of the Router (see Figure
B). Connect the other end to
an Ethernet port on a network
device, e.g., a PC, print server,
hub, or switch.
B
Repeat this step to connect
more PCs or other network
devices to the Router.
C
Connect your cable or DSL
modem's Ethernet cable to
the Router's Internet port. If
using multiple Internet ports,
connect a cable to each Inter-
net port you'd like to use, and
connect the other end to your
C
modem. See Figure C.
D
Power on the cable or DSL
modem and the other network
device if using one.
E
Connect the included AC
power cable to the Router's
Power port on the back of the
Router, as shown in Figure E,
and then plug the other end of
the power cable into an elec-
trical outlet.
The System LED on the front
E
panel will light up as soon as
the power adapter is con-
nected properly.
2

Configure the Router

Configuring the Router requires the
setup instructions provided by your
Internet Service Provider (ISP). If you
do not have this information, con-
tact your ISP before proceeding.
NOTE:: Make sure your PC's
Ethernet adapter is set to obtain
Your ISP determines how your PC is
an IP address automatically. For
set up for Internet access. Because
more information, refer to Win-
you are now using the Router to
dows Help.
share Internet access among sev-
eral computers, you will use the
setup information to configure the
Router instead of your PC.
A
Open your PC's web browser.
Enter http://192.168.1.1 (the
Router's default local IP
address) in the web browser's
Address field and press the
A
Enter key.
B
Enter a User Name and Pass-
word on the screen that
appears. Enter admin (the
default) in the the User Name
and Password fields. Then, click
the OK button.
C
The Router's Web-based Utility
B
will appear with the System
Summary screen showing.
Click on the Setup tab, which is
the next tab over, then con-
tinue with the instruction,
below, to complete the Net-
work page.
C
