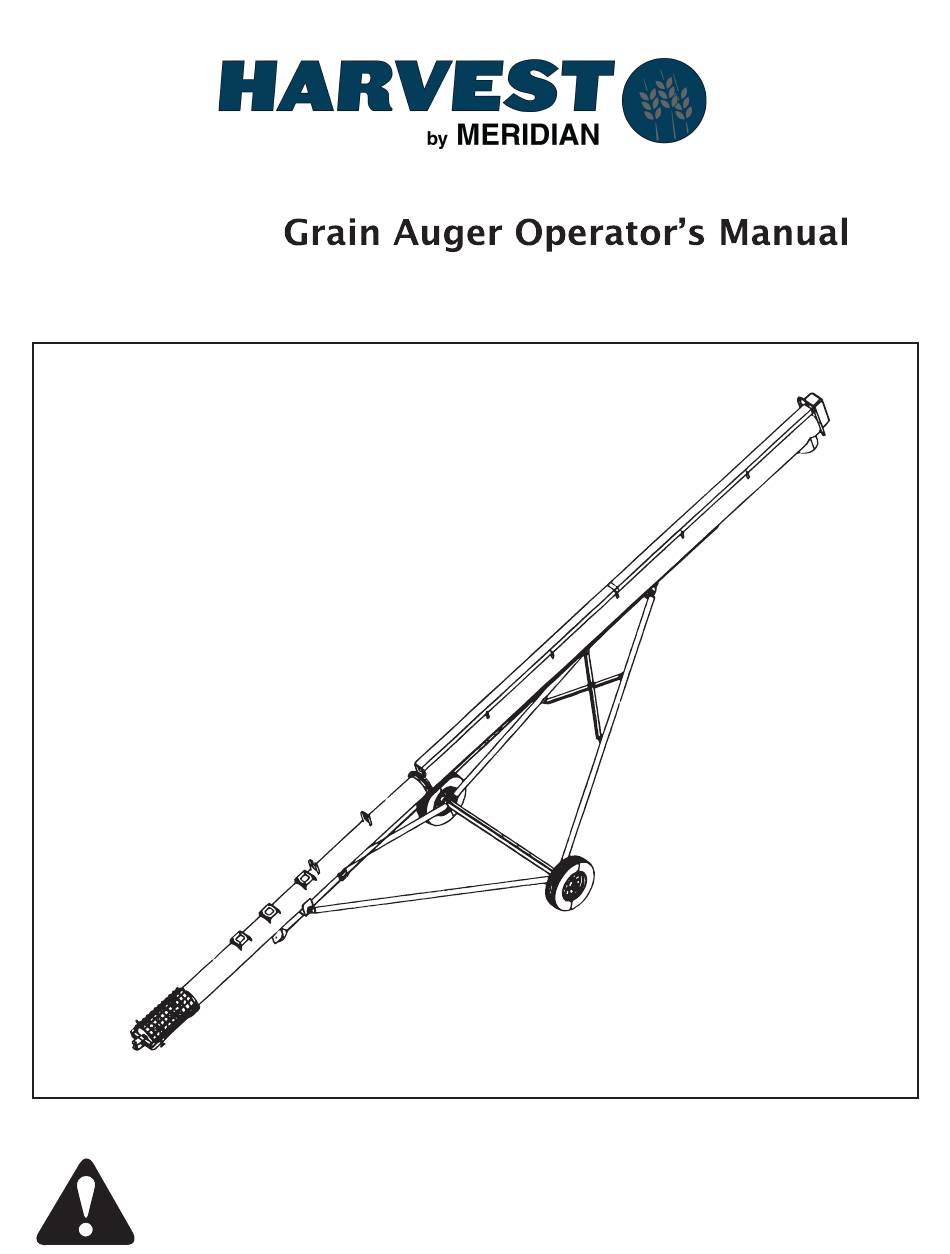

- Page 1 T1036 Read this manual before using product. Failure to follow instructions and safety precautions can result in serious injury, death, or property damage. Keep manual for future reference.
- Page 2 T-Series Augers: Important Notes At 15-20 miles, tire lug nut tightness and wheel hub temperature need to be checked. At 50-60 miles, check these a second time. For all models, the maximum transport speed is mph.
- Page 3 Harvest by Meridian thanks you for your purchase of the best quality auger on the market. We are proud to have you on our team. Our equipment is manufactured in the United States of America and is made to improve your farming operation.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 1.Introduction______________________________________________________________5 2. Safety First______________________________________________________________6 3. Transportation & Placement_____________________________________________7 3.1 Before Transporting Your Auger___________________________________7 3.2 Transport Procedure_______________________________________________8 3.3 Placement of Auger________________________________________________8 3.4 Final Placement__________________________________________________10 3.5 Lowering the Auger______________________________________________10 4. Operation______________________________________________________________12 4.1 Pre-Operation Checklist__________________________________________12 4.2 Auger Drive & Lockout___________________________________________13 4.3 Start Up &... -
Page 5: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Harvest by Meridian distributor or dealer if you need assistance, information, or additional copies of the manual. Always give your dealer the serial number of your Harvest by Meridian Grain Auger when ordering parts or requesting service or information. -
Page 6: Safety First
2. Safety First Safety is a priority in your everyday work habit, especially if you work with machinery. Whether you are an owner, an operator, or an employee, it is your responsibility to know the operational requirements and safety precautions of the machinery. Why is safety important to you? 1. -
Page 7: Transportation & Placement
3. Transportation and Placement 3.1 Before Transporting your Auger Remove wheel chocks, so wheels are free to move. DANGER: If auger wheels are stuck in grain, mud, dirt, or snow. remove the restraining substance from around the wheels before transport. Failure to do this could cause damage to the auger, and serious injury or death. -
Page 8: Transport Procedure
3.2 Transportation Procedure Move auger with a tractor only. Never attempt to move by hand. Under no condition should you allow riders on the auger or tractor. Transport the auger no faster than 15 mph. When roads are rough or surfaces are uneven, slow down to ensure safe travel. - Page 9 If ground is very uneven, auger can tip and cause damage to the equipment and personal injury or death. WARNING: Never position raisers of any kind under the wheels of the auger to increase height. This includes pieces of wood, cement blocks, bricks, etc.
-
Page 10: Final Placement
3.4 Final Placement of Auger When you are ready to use your auger, place the auger in its lowered position, and slowly back it up to your bin or storage facility, keeping an eye out for any people or obstructions in the hazard zone. DANGER: Avoid any electrical wires and overhead obstructions. - Page 11 When lowering the auger, never turn the winch handle counterclockwise to attempt to correct a stuck cable. This will disengage the brake mechanism and create an unsafe condition. If the cable stops moving, check to see where the binding is happening and fix before proceeding.
-
Page 12: Operation
4. Operation Wear protective gear at all times when operating auger, such as hard hats, protective shoes, eye protection, and gloves. Do not wear loose clothing, and be sure that hair is tied back. 4.1 Pre-Operation Checklist Before operating the auger, the operator must follow this checklist: All safety shields are in place, secure, and in good working order. -
Page 13: Auger Drive & Lockout
4.2 Auger Drive & Lockout The proper operation of this auger requires that the operator pre-inspect the drive system, know how to shut down the system in an emergency, and generally monitor the system during operation. Drive System and PTO Driveline: Ensure that the PTO drive on the tractor is in the off position before starting the tractor. -
Page 14: Everyday Operation
Upon completion of initial run, slow down until the auger is empty of grain, and stop auger. Lock out the power source and conduct a complete inspection of the auger, following the pre-operation checklist. After the initial start up and inspection, the auger should be shut down and inspected at least three times during the first hours of operation. -
Page 15: Shutting Down The Auger
4.5 Shutting Down the Auger Empty the auger of all grain. Disengage the PTO drive. Shut down and lock out power. WARNING: Never use your hands to clean out debris from auger. Rather, use a small shovel or other tool. In the case where there has been an interruption or emergency shutdown, restart the auger as follows: If auger is full of grain, do not restart at full speed. -
Page 16: Lowering The Auger
WARNING: Do not leave auger in raised position when not in use. Auger could drop rapidly in case of hydraulic failure. High winds may also upset the auger. Because the hydraulic scissor lift is faster than a hand crank system, use extra caution and clear area of personnel before raising or lowering auger. -
Page 17: Hydraulics
Escaping hydraulic fluid can be nearly invisible under high pressure. Use some type of backdrop when searching for leaks. Harvest by Meridian augers have a velocity fuse for hydraulic safety. If the hydraulic line breaks, it locks the system. Our shut off valve is equipped with a flow restrictive orifice. -
Page 18: Cylinder Hydraulics
5.2 Cylinder Hydraulics The testing done on Harvest by Meridian auger hydraulics was done using a pressure gauge with 3000psi maximum rating. This was used simply as a guide. The psi requirements for an individual auger may vary slightly. Auger... -
Page 19: Storage & Maintenance
Contact your Harvest by Meridian dealer to order parts. Harvest by Meridian augers are designed and tested for a safe, efficient operation. Do not modify the equipment in any way. Modification to the auger can create an unsafe working condition, affect the life of the equipment, and will void your warranty. -
Page 20: Storage Of Auger
Tire Pressure: Check tire pressure monthly. The recommended tire pressure should be maintained at 40 to 45 psi. PTO Driveline: Lubricate both universal joints after every eight hours of operation. Lubricate the center portion of the driveline on a yearly basis. The first lube maintenance should be done in the first 16 to 24 hours of operation. -
Page 21: Appendix & Forms
! 2 1... - Page 22 ! 2 2...
- Page 23 ! 2 3...
- Page 24 ! 2 4...
-
Page 25: T1036 Parts Book
PART/ASSEMBLY DESCRIPTION MODEL(S) T1036 T1036 AUGER ASSEMBLY DESCRIPTION ITEM NO. PART NO. CABLE, LIFT, 1/4" X 7 X 9 X 35FT 10956 CLAMP, 1/4" CABLE 10957 FRAME ASSEMBLY, T836 PBT08007 TUBE ASM,DISCHARGE, T1032,36 & 42 PBT10005 DRAWING NO. PBT1036 TUBE ASSEMBLY, INFEED, T1036 PBT10021 ! 2 5... - Page 26 MODEL(S) PART/ASSEMBLY DESCRIPTION T1036 TUBE ASSEMBLY, INFEED, T1036 DETAIL A DETAIL D DETAIL C DETAIL B DESCRIPTION ITEM NO. PART NO. WINCH ASSY, 1500 LB, BRAKE 30108 1" 2 BOLT FLANGETTES W/FAFNIR BEARING 30551 FLIGHTING ASSEMBLY, INFEED, T1042, T1052, T1062 30755 TUBE ASSEMBLY, LOWER AUGER, T1036 31716...
- Page 27 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T1032, T1042 TUBE ASM,DISCHARGE, T1032, T1042 DETAIL A DETAIL B DRAWING NO. PBT10005 ! 2 7...
- Page 28 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) DESCRIPTION ITEM NO. PART NO. WASHER, BEARING RETAIN, DISCHARGE HUB ASSEMBLY 10240 NUT, CASTLE, BEARING RETAIN, HUB ASSEMBLY 10242 CONNECTOR LINK, #60 ROLLER CHAIN 10250 SCREW, SELF TAPPING, #12 x 3/4" 10304 SPACER, WASHER SPROCKET, DISCHARGE, T10XX 10306A KEY, 1/4 x 1.00"...
- Page 29 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION T836 FRAME ASSEMBLY, T836 DETAIL B SCALE 1 : 16 DETAIL C SCALE 1 : 12 DETAIL A SCALE 1 : 16 DRAWING NO. PBT08007 ! 2 9...
- Page 30 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) T836 FRAME ASSEMBLY, T836 DESCRIPTION ITEM NO. PART NO. SCREW, SELF TAPPING, #12 x 3/4" 10304 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 HOUSING, LIFT ROLLER, T AUGERS 10929 TIE, ZIP, MANUAL CANISTER MOUNT 10960 BRACE, X, T1042, T842, T836 10988 CANISTER, OWNERS MANUAL...
-
Page 32: Warranty Policy & Forms
Customer Name: Dealer Name: Address: Address City: City: Postal Code: Postal Code: Phone # Phone # Email: Email: Warranty Claim Description: Date of purchase________________________________ Date of occurrence______________________________ Model_________________________________________ erial Number__________________________________ All claims subject to Harvest by Meridian approval. ! 3 2... - Page 33 2902 Expansion Blvd. Storm Lake, Iowa 50588 PHONE: 712-213-5100 TOLL FREE: 1-800-667-5904 EMAIL: info@harvestauger.com WEB: www.harvestauger.com ! 3 3...
- Page 34 City: State: Zip Code: Phone # Cell Phone: Email: Date of Purchase: Dealer Name: Dealer Address: Model: Serial #: Please return within 10 days to: Harvest by Meridian 2902 Expansion Blvd. Storm Lake, IA 50588 712-213-5100 www.harvestauger.com ! 3 4...
