Meridian HARVEST H13112 Operator's Manual

Grain auger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H13112
Read this manual before using product. Failure to follow
instructions and safety precautions can result in serious
injury, death, or property damage. Keep manual for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARVEST H13112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meridian HARVEST H13112

Summary of Contents for Meridian HARVEST H13112

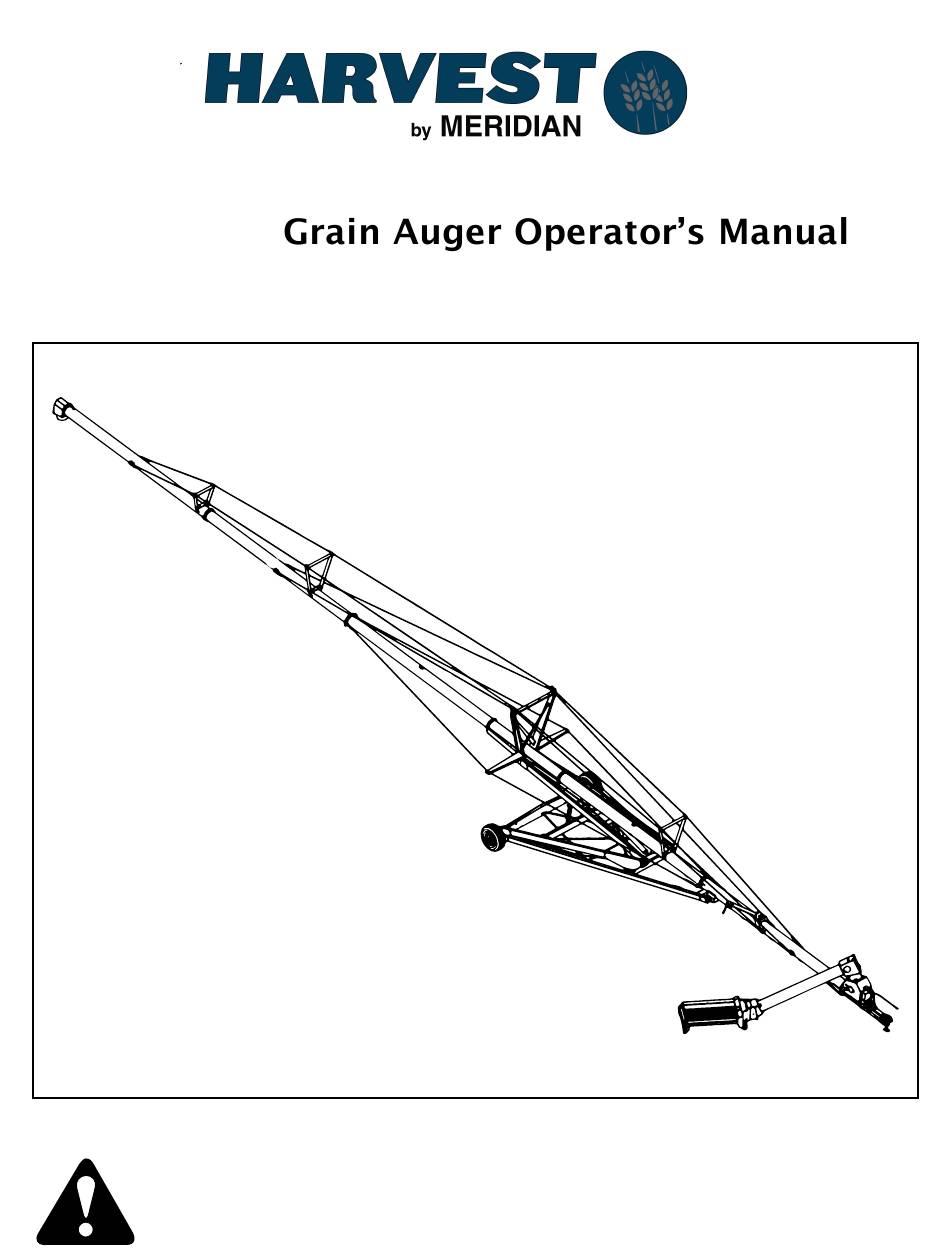

  • Page 1 H13112 Read this manual before using product. Failure to follow instructions and safety precautions can result in serious injury, death, or property damage. Keep manual for future reference.
  • Page 2 H13XX Augers: Important Notes At 15-20 miles, tire lug nut tightness and wheel hub temperature need to be checked. At 50-60 miles, check these a second time. For the H1392, 102, and H13112, the maximum transport speed is mph. For the H1362, 72, and 82, the maximum transport speed is 45 mph.
  • Page 3 Harvest by Meridian thanks you for your purchase of the best quality auger on the market. We are proud to have you on our team. Our equipment is manufactured in the United States of America and is made to improve your farming operation.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. Introduction_____________________________________________________________5 2. Safety First______________________________________________________________6 3. Transportation & Placement_____________________________________________7 3.1 Before Transporting Your Auger___________________________________7 3.2 Transport Procedure_______________________________________________8 3.3 Placement of Auger________________________________________________8 3.4 Final Placement__________________________________________________10 3.5 Lowering the Auger______________________________________________10 4. Operation______________________________________________________________11 4.1 Pre-Operation Checklist__________________________________________11 4.2 Auger Drive & Lockout___________________________________________12 4.3 Start Up &...

  • Page 5: Introduction

    Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Harvest by Meridian distributor or dealer if you need assistance, information, or additional copies of the manual.

  • Page 6: Safety First

    2. Safety First Safety is a priority in your everyday work habit, especially if you work with machinery. Whether you are an owner, an operator, or an employee, it is your responsibility to know the operational requirements and safety precautions of the machinery.

  • Page 7: Transportation & Placement

    Failure to do this could cause damage to the auger, and serious injury or death. All Harvest by Meridian augers have minimum clearance positions when in transport mode. Place auger in full down position.

  • Page 8: Transport Procedure

    3.2 Transportation Procedure Move auger with a tractor only. Never attempt to move by hand. Under no condition should you allow riders on the auger or tractor. Transport the auger no faster than 15 mph. When roads are rough or surfaces are uneven, slow down to ensure safe travel.
  • Page 9 WARNING: Never position raisers of any kind under the wheels of the auger to increase height. This includes pieces of wood, cement blocks, bricks, etc. Attempting this could result in damage to the equipment and personal injury or death. Make sure that the hitch is secured to the tractor, and that all hydraulic connections are tight and in good working condition.

  • Page 10: Final Placement

    3.4 Final Placement of Auger When you are ready to use your auger, place the auger in its lowered position, and slowly back it up to your bin or storage facility, keeping an eye out for any people or obstructions in the hazard zone. DANGER: Avoid any electrical wires and overhead obstructions.

  • Page 11: Operation

    4. Operation Wear protective gear at all times when operating auger, such as hard hats, protective shoes, eye protection, and gloves. Do not wear loose clothing, and be sure that hair is tied back. 4.1 Pre-Operation Checklist Before operating the auger, the operator must follow this checklist: All safety shields are in place, secure, and in good working order.

  • Page 12: Auger Drive & Lockout

    4.2 Auger Drive & Lockout The proper operation of this auger requires that the operator pre-inspect the drive system, know how to shut down the system in an emergency, and generally monitor the system during operation. Drive System and PTO Driveline: Ensure that the PTO drive on the tractor is in the off position before starting the tractor.

  • Page 13: Everyday Operation

    Gradually begin to feed grain into the intake hopper, bringing the speed of the PTO to 200 RPM. Do not over-feed the hopper on initial loads; keep the feed of the grain at half capacity. After the auger tube is polished and runs smoothly, proceed to unload at full speed (at but not to exceed 540 RPM for maximum efficiency).

  • Page 14: Shutting Down The Auger

    4.5 Shutting Down the Auger Empty the auger of all grain. Disengage the PTO drive. Shut down and lock out power. WARNING: Never use your hands to clean out debris from auger. Rather, use a small shovel or other tool. In the case where there has been an interruption or emergency shutdown, restart the auger as follows: If auger is full of grain, do not restart at full speed.

  • Page 15: Lowering The Auger

    Escaping hydraulic fluid can be nearly invisible under high pressure. Use some type of backdrop when searching for leaks. Harvest by Meridian augers have a velocity fuse for hydraulic safety. If the hydraulic line breaks, it locks the system. Our shut off valve is equipped with a...

  • Page 16: Cylinder Hydraulics

    Relieve all pressure and then disconnect. 5.2 Cylinder Hydraulics The testing done on Harvest by Meridian auger hydraulics was done using a pressure gauge with 3000psi maximum rating. This was used simply as a guide. The psi requirements for an individual auger may vary slightly.

  • Page 17: Storage & Maintenance

    Always replace damaged or worn parts before using the auger. Use only replacement parts manufactured by Harvest by Meridian. Use of unauthorized parts will void the warranty of your auger. Contact your Harvest by Meridian dealer to order parts. Harvest augers are designed and tested for a safe, efficient operation.
  • Page 18 After Maintenance is completed, replace and secure all safety shields, safety devices, service doors and cleanout covers. See section 5, “Hydraulics” for information on maintenance of hydraulic hoses. See section 7, “Appendix & Forms” for expanded lube information. Truss Cables: Replace cables if frayed or damaged. Be sure clamps are secure. Adjust cables as needed to keep the auger tube reasonably straight.

  • Page 19: Storage Of Auger

    6.2 Storage of Auger Make sure that auger is in the full down position. Remove all residual material from the hopper and auger tubes. Touch up all scratches on the auger to prevent rusting. Clean and re-lubricate spline on the PTO driveline. Cover with plastic bag to protect from weather, and place it in the transport latch.

  • Page 20: Appendix & Forms

    AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION H13112 AUGER, BASE MODEL, H13112 DETAIL B DETAIL A DESCRIPTION ITEM NO. PART NO. CLAMP, 3/8" CABLE, ZINC 10303 CLAMP, CABLE, 1/2" ZINC PLATED 10367 CABLE, TRUSS, LONG, 1/2" X 96FT 11955 CABLE, TRUSS, MEDIUM, 1/2" X 71FT 11957 CABLE, TRUSS, SIDE, 3/8 X 52FT 11958...
  • Page 23 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H13XX SWING TUBE ASSEMBLY DETAIL B DETAIL A DRAWING NO. PBH13015...
  • Page 24 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H13XX SWING TUBE ASSEMBLY DESCRIPTION ITEM NO. PART NO. LYNCH PIN, 1/4" X 2-1/8" 10364 DEFLECTOR, RUBBER, HOPPER DISCHARGE, H13XX 10477A COVER PLATE, CLEAN OUT 10528 STIFFENER, RUBBER SWING DISCHARGE, H13 11126 PLATE, SWING TUBE RETAIN, H13XX 11790 GEARBOX, RIGHT ANGLE 30176...
  • Page 25 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102 INFEED HOUSING ASSEMBLY PIPE THREADS-­ USE PIPE SEALER PIPE THREADS-­ USE PIPE SEALER DRAWING NO. PBH13026...
  • Page 27 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION H1392, H13102 INFEED HOUSING ASSEMBLY NOTE: SHAFT SHOWN FOR REFERENCE ONLY DETAIL A DETAIL H SCALE 1 : 8 SCALE 1 : 2 DRAWING NO. PBH13026...

  • Page 28: Description Qty

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102 INFEED HOUSING ASSY DESCRIPTION ITEM NO. PART NO. HOUSING, INFEED, H1392&102 30805 JACK. 5000LB TOP WIND 30140 GEARBOX, RIGHT ANGLE 30176 CLEVIS ASSEMBLY, H13XX 30424A KNUCKLE/SHAFT ASSY, SPLIT KNUCKLE, 30480A BEARING, 1-­1/4", 4 BOLT CAST, ECCENTRIC LOCK COLLAR 30552 BEARING &...

  • Page 29: 40005 Bolt, 1/2-13Unc X 1-1/2" Hex Flange, Grd 5, Zinc

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H13102, & H13112 TUBE ASM, 5TH SECTION, H13102 & H13112 DETAIL A DETAIL B DESCRIPTION ITEM NO. PART NO. CLAMP, CABLE, 1/2" ZINC PLATED 10367 QUICKLINK CHAIN CONNECTOR, 1/2 INCH 10579 TRUSS, CABLE, MEDIUM, H1392 & 102 11807 TRUSS, CROSS, MEDIUM, H1392 &...

  • Page 30: 40014 Bolt, 1/4-20Unc X 3/4" Hex Flange, Grd 5, Zinc

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392 & H13112 TUBE ASM, DISCHARGE, H1392 & H13112 DETAIL A DESCRIPTION ITEM NO. PART NO. CLAMP, CABLE, 1/2" ZINC PLATED 10367 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 QUICKLINK CHAIN CONNECTOR, 1/2 INCH 10579 TRUSS, CABLE, SMALL, H1392 &...
  • Page 31 AUGER MODEL(S) PART/ASSEMBLY DESCRIPTION H1392, H13102, & H13112 TUBE ASM, 2ND SECTION DESCRIPTION ITEM NO. PART NO. CLAMP, CABLE, 1/2" ZINC PLATED 10367 5/8", OD CLAMP, GALV. VINYL, HYD HOSE RETAIN 10588A TRUSS, CABLE, MEDIUM, H1392 & 102 11807 TRUSS, CROSS, MEDIUM, H1392 & 102 11808 FLIGHTING SECTION ASM, REGULAR, H13XX 30430...
  • Page 32 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 TUBE ASM, 3RD SECTION, 10FT TUBE DETAIL A DETAIL B DRAWING NO. DETAIL C PBH13037...

  • Page 33: 40025 Bolt, 3/8-16Unc X 1" Hex Flange, Grd 5, Zinc

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 TUBE ASM, 3RD SECTION, 10FT TUBE DESCRIPTION ITEM NO. PART NO. CLAMP, 3/8" CABLE, ZINC 10303 CLAMP, CABLE, 1/2" ZINC PLATED 10367 COVER PLATE, CLEAN OUT 10528 5/8", OD CLAMP, GALV. VINYL, HYD HOSE RETAIN 10588A TRUSS, CROSS, MEDIUM, H1392 &...
  • Page 34 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 TUBE ASM, 1ST SECTION DETAIL A DETAIL C DETAIL B DRAWING NO. PBH13038...

  • Page 35: 40056 Nut, 3/8-16Unc, Hex Flange, Grd 5, Zinc

    PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 TUBE ASM, 1ST SECTION DESCRIPTION ITEM NO. PART NO. HAIRPIN, .093 X 1.625 10381 PIN, COTTER, .125"x1.5" 10426 5/8", OD CLAMP, GALV. VINYL, HYD HOSE RETAIN 10588A I-BOLT, FORGED 3/4" RIGHT HAND 10652 BRACKET, HOPPER TRANSPORT ARM MNT.
  • Page 36 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 TUBE ASM, 4TH SECTION DETAIL B DETAIL A DESCRIPTION ITEM NO. PART NO. QUICKLINK CHAIN CONNECTOR, 1/2 INCH 10579 BRACKET, BOLT TRUSS CABLE MOUNT, H13XX 10680 FLIGHTING SECTION ASM, REGULAR, H13XX 30430 TUBE ASSEMBLY, 4TH FROM INFEED, H13112 31074 BOLT, 1/2-13UNC X 1-1/2"...
  • Page 37 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 CARRIAGE ASM, H1392, H13102, & H13112 DETAIL B DETAIL A DETAIL C DRAWING NO. PBH13043...
  • Page 38 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) H1392, H13102, & H13112 CARRIAGE ASM, H1392, H13102, & H13112 DETAIL D DETAIL E DETAIL F DRAWING NO. PBH13043...
  • Page 39 PART/ASSEMBLY DESCRIPTION AUGER MODEL(S) DESCRIPTION ITEM NO. PART NO. ZERK, GREASE, 1/4-28UNF, STRAIGHT 10245 SCREW, SELF TAPPING, #12 x 3/4" 10304 PIN, ROLL, 3/8" X 3", ZINC 10384 NUT, 1/2-20, 60 DEGREE LUG NUT, ZINC 10434 PLATE, CROSS MOUNT, CARRIAGE STABILIZER, H13XX 10439 5/8", OD CLAMP, GALV.

  • Page 40: H13112 Lubrication Requirements

    H13XX Lubrication Requirements Infeed Housing Lube Knuckle w/Multi Lith Grease Every 50 Hrs of Operation Fill Gearbox with 80/90 Gearlube Oil to Bottom of Plug Hole Check Seasonally Lube Chain w/Quality Chain Lube. Every 50 Hrs of Operation Lube Bearings w/Multi Lith Grease Every 50 Hrs of Operation Swing Tube Fill Gearbox with 80/90...
  • Page 41 Swing Hopper Lube Knuckle w/Multi Lith Grease Every 50 Hrs of Operation Lube Knuckle w/Multi Lith Grease Every 50 Hrs of Operation Lube Hopper Tires w/Multi Lith Grease Check Seasonally Lube Chain w/Quality Chain Lube. Every 50 Hrs of Operation Discharge Head Lube Hub w/Wheel Bearing Grease...
  • Page 42 Carriage Assembly Lube Cyl. Pins w/Multi Lith Grease. Check Seasonally Lube Hub w/Quality Wheel Bearing Grease. Check Seasonally Lube Pivot Points w/Mulit Lith Grease. Check Seasonally...
  • Page 44 Warranty Claim Form Customer Name: Dealer Name: Address: Address City: City: Postal Code: Postal Code: Phone # Phone # Email: Email: Warranty Claim Description: Date of purchase________________________________ Date of occurrence______________________________ Model_________________________________________ Serial Number__________________________________ All claims subject to Harvest by Meridian approval.
  • Page 45 2902 Expansion Blvd Storm Lake, Iowa 50588 PHONE: 712-213-5100 TOLL FREE: 1-800-667-5904 EMAIL: info@harvestauger.com WEB: www.harvestauger.com...
  • Page 46 Warranty Registration Name: Address: City: State: Zip Code: Phone # Cell Phone: Email: Date of Purchase: Dealer Name: Dealer Address: Model: Serial #: Please return within 10 days to: Harvest by Meridian 2902 Expansion Blvd. Storm Lake, IA 50588 712-213-5100 www.harvestauger.com...
