Page 1

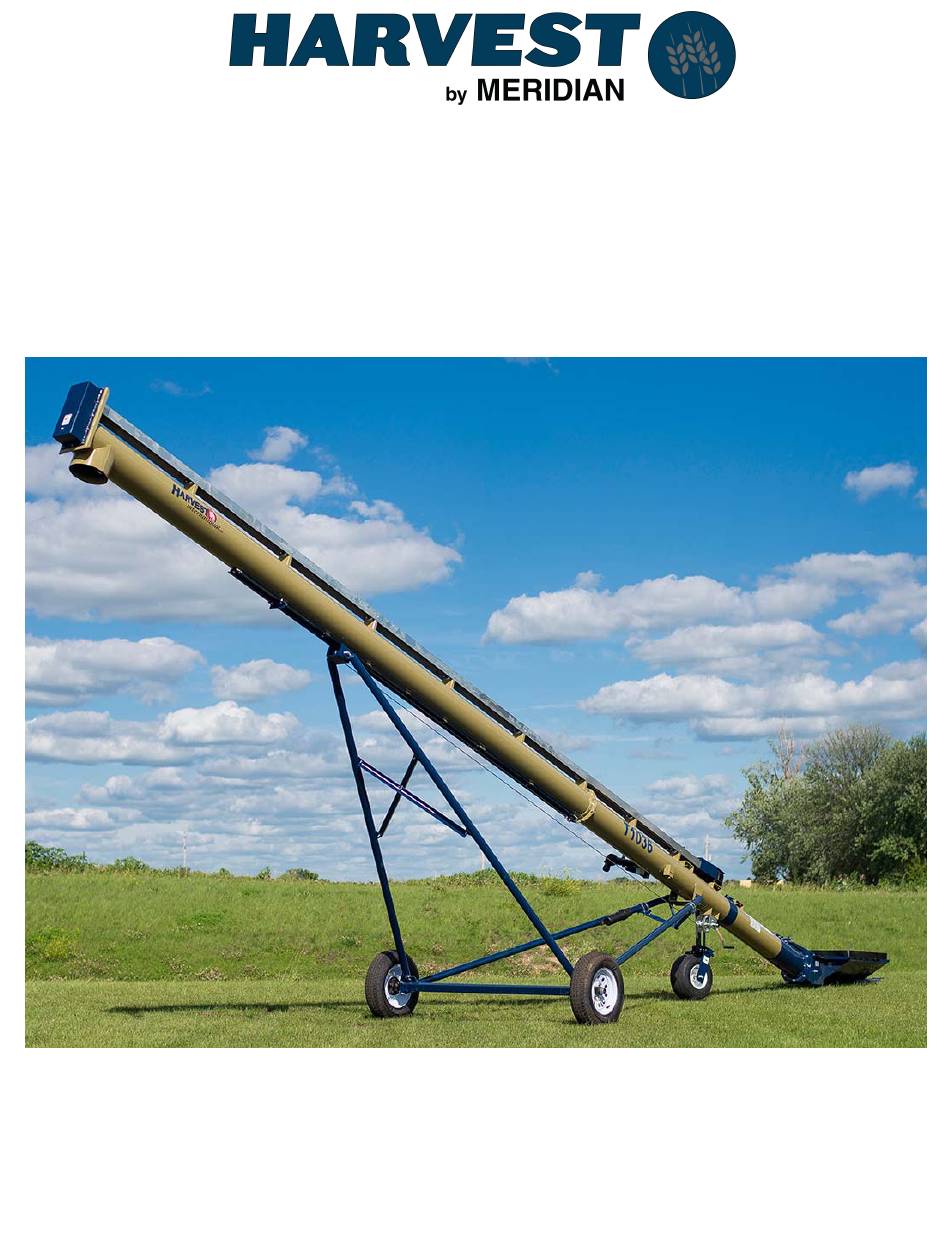

T832, T836, & T842 AUGER ASSEMBLY MANUAL Read & understand all instructions pertaining to this auger prior to use! ...
Page 2
Safety Alert Watch for this ALERT Symbol. It identifies potential hazards to Personal SAFETY and your HEALTH. It points out Safety precautions. This SAFETY symbol means: ATTENTION: BE ALERT Why is SAFETY important to you? THREE BIG REASONS: *ACCIDENTS DISABLE AND KILL *ACCIDENTS COST *ACCIDENTS CAN BE AVOIDED Failure to read this Auger manual before operation of the Auger is a misuse of the...
Step 2 (Tube & Flighting Assembly) Place the 1 & 2 tubes on assembly stands. Place stands 12” or less from the end of the tube. Placing stands further than 12” from end of the tube may cause damage to the tubes. Fig.
Step 4 (Standard Infeed Installation) The standard infeed will now be installed. (If installing a flex hopper, skip Step 4 & 5. Refer to T8 Hopper Assembly Manual for installation). Place stub shaft (10282) into to end of the infeed flighting. Attach using a 1/2"...
REFER TO DRIVE OPTION ASSEMBLY MANUALS AT THIS POINT!!! Step 6 (Winch Installation) After the drive option is assembled on to the auger the winch will need to be installed. To install the winch, fasten it to the bracket welded on the underside of the first tube. Secure it to the bracket by using (3) 3/8” x 1” hex flange bolts &...
Fig. 7.1 Fig. 7.2 Step 8 (Carriage Assembly) Place the axle underneath the auger tubes on the stands. Attach the carriage are & hub assembly to the axle using (4) 1/2" x 1-1/2” hex flange bolts and flange nuts. (See fig. 7.1) Do this same step on the other side of the axle.
Page 10
Fig. 9.1 Step 10 Next, lift the carriage arms up to the carriage mount bracket welded onto the first tube. Attach the carriage arms as shown in fig. 9.1 using (2) 3/4" x 1-1/2” hex bolt & top lock nut. Fig.
Page 11
push bolt all the way through the housing. Attach other lift arm onto bolt & secure with a 3/4" top lock nut. The lift arms, housing, & roller should now be assembled together. Fig. 11.1 Fig. 11.2 Step 12 Next, slide the lift arms and the lift roller onto the track on the underside of the discharge tube. After this is done bolt on the lift roller stop using (2) 3/8”...
Fig. 13.1 Fig. 13.2 Step 14 (T836 & T842 Only) When assembling a T836 & T842 “X” bracing is required on the lift arms. Attach the bracing to the lift arms using (5) 3/8” x 1” hex flange bolts & flange nuts. Cross the braces as shown in fig. 14.1. Fig.
Page 13
cable stop using (2) 1/4" cable clamps. After clamps are tightened, track the cable on the winch by slowing turning the handle and guiding the cable on to the drum so it spools properly. Fig. 15.2 Fig. 15.1 Fig. 15.3 Step 16 Next, attach the manual canister to one of the carriage arms using 2 zip ties provided.
Fig. 16.3 This will complete the assembly for your Harvest by Meridian T832, T836, or T842 grain auger. For additional part numbers, information, & overall views please refer to the parts book drawings located at the end of this assembly manual or log onto www.harvestauger.com.
