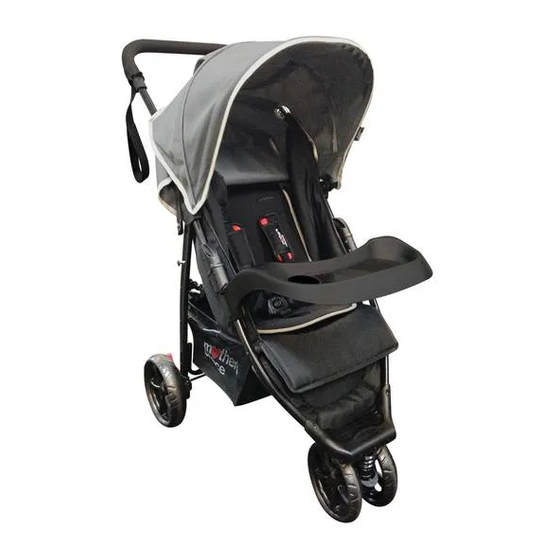

- Page 1 3 wheel stroller manual Illustrations and designs may vary. follow us on the only choice motherschoice.com.au...
-
Page 2: Table Of Contents
assembling the stroller Components list ........4 Opening stroller ........5 Installing rear axle ........ 6 contents Rear wheel assembly ......6 Installing front wheel ......7 Operating front swivel lock ....7 Attaching child tray ........ 8 using the stroller Adjusting canopy ........ - Page 3 IF YOU ADJUST THE STROLLER, OTHERWISE THEY MAY BE INJURED. • A harness can form loops that may be a strangulation hazard, never leave harness straps connected when not fitted to a child in the stroller. • Remove the child from the stroller before going up or down stairs or escalators. • Use the tether strap to prevent the stroller rolling away. • Do not allow children to stand on the seat or footrest. • Do not attempt to lift the stroller by the bumper bar. • Remove the child from the stroller before going up or down stairs or escalators. • Engage front wheel swivel locks when travelling on rough or uneven surfaces. • Regularly inspect the stroller for any parts that are loose, broken, torn or missing. Attend to the problem as soon as it is noticed. • Use only those accessories which are supplied by Dorel Australia and approved for use with this stroller. • Do not use the stroller near an open fire, barbecue or exposed flame. • This product is not intended for commercial use. • Do not run or jog with this stroller. • The Wilton 3 wheel stroller has been approved in accordance with AS/NZS 2088:2013. • The weight of the child using this stroller should not be more than 17kg. • Shopping basket maximum weight 4kg, Canopy pocket 0.5kg, and Child tray 1kg.
-
Page 4: Components List
3 wheel stroller components list A Canopy I Footrest Q Shopping basket B Storage latch J Swivel lock R Brakes (x2) C Harness straps S Rear wheel assembly K Front wheel i) Rear wheel (x2) D Belt mates (x2) -
Page 5: Opening Stroller
3 wheel stroller assembling stroller storage latch Step 1: opening stroller • If the stroller has a security tie, please remove it. • Release the storage latch (Figure 1a). • Lift the handle upwards away from the rear legs (Figure 1b). -
Page 6: Installing Rear Axle
3 wheel stroller assembling stroller Step 3: installing rear axle/brakes • Insert the axle assembly into the rear stroller legs and push up until it snaps into place (Figure 2). insert mother’s choice tip... Ensure red brake levers face towards the rear of stroller. -
Page 7: Installing Front Wheel
3 wheel stroller assembling stroller arrow points up incorrect correct Step 5: installing front wheel insert • Ensure that the arrow (Figure 4a) points upward. • Also ensure that the swivel lock is positioned correctly, with the lock facing in a forward direction (Figure 4c). -
Page 8: Attaching Child Tray
3 wheel stroller assembling stroller Step 6: attaching child tray • Align both sides of the child tray with the frame, just below the folding joints (Figure 5a). push clamp • Push clamps down on both sides to lock (Figure 5b). -
Page 9: Using The Stroller
3 wheel stroller using stroller Operating brakes • To apply the brake, press down firmly on both brake pedals using the ball of your foot (Figure 7a). press down to lock • Ensure both sides are engaged. • To release the brake, lift both brake pedals until the brakes have fully disengaged (Figure 7b). -
Page 10: Folding Stroller
3 wheel stroller using stroller folding stroller backrest • Apply all brakes. canopy extended • Unlock the front swivel wheel. folded • Fold the canopy back. • Adjust the seat backrest to full layback position. • Grip the folding locks on each side of the handle (Figure 8b), pull to release the lock. -
Page 11: Unfolding Stroller
3 wheel stroller using stroller unfolding stroller • Release the storage latch (Figure 9a). • Lift handle until stroller is fully open and lift locking mechanism engaged (Figure 9b). • Push down on the handle to check that the locks have been fully engaged. -
Page 12: Carrying Stroller
3 wheel stroller using stroller carry here carrying stroller • Fold the stroller, and ensure that storage latch is applied before continuing. • Carry stroller by holding frame between the storage latch and the folding lever (Figure 10). Avoid holding the stroller in other locations to avoid injury from moving parts. -
Page 13: Adjusting Backrest
3 wheel stroller using stroller Operating the backrest recline lever upright • Recline the backrest by simultaneously adjusting the recline levers (both sides) into one of three positions, as demonstrated in Figures 11a - 11d. To adjust upwards, simply push on the backrest. -
Page 14: Harness Adjustment Buckle
3 wheel stroller using stroller WARNING harness adjustment buckle Use this harness at all times. • The harness strap can be adjusted by A five-point harness is moving each strap’s slider ( ) (Figure 12a). provided to secure your child. • The buckle is released by pressing the When not in use disconnect centre button (Figure 12b). -
Page 15: Adjusting Harness Height
3 wheel stroller using stroller adjusting harness height • The harness can be set at two heights, as displayed in Figure 13a and Figure 13b. • To use the lower slot, undo the buckle and feed the shoulder straps in through the loop (Figure 13c) before securing harness. -
Page 16: Tether Strap
3 wheel stroller using stroller tether strap • Whenever a child is in the stroller and brakes are NOT engaged, the large loop should be around your wrist (Figure 14). WARNING Use this strap to stop the stroller rolling away. -
Page 17: Care And Maintenance
3 wheel stroller care and maintenance • Always store in a clean and dry place. • Clean the frame by wiping with a damp cloth. • Do not use abrasives, bleach or strong detergents. • Spot clean fabrics with warm water and mild soap. -
Page 18: Notes
notes:... -
Page 19: Product Registration
mother’s choice tip... follow us on motherschoice.com.au Visit us online to register your new Mother’s Choice product. www.motherschoice.com.au/product-registration benefits of registration • Your safety - allows us to contact you with important product notifications. • Confirmation of ownership - provides a record in case of product loss or theft. • Improved product development - helps us continue to design products that meet your needs. to prevent loss or fading, please attach your receipt here:... - Page 20 motherschoice.com.au DOREL AUSTRALIA PTY LTD 655-685 Somerville Road Sunshine West Victoria 3020 Email: customerservice@dorel.com.au Phone: 1300 809 526 Hours: 8:30 am - 5:00 pm Monday to Friday IGC DOREL NEW ZEALAND LTD 14 Sir William Avenue East Tamaki Auckland 2013 Email: customerservice@igc.co.nz Phone: 0800 628 000 (toll free) Hours: 8:00 am - 5:00 pm Monday to Friday...
