Summary of Contents for Mothers choice Shadow

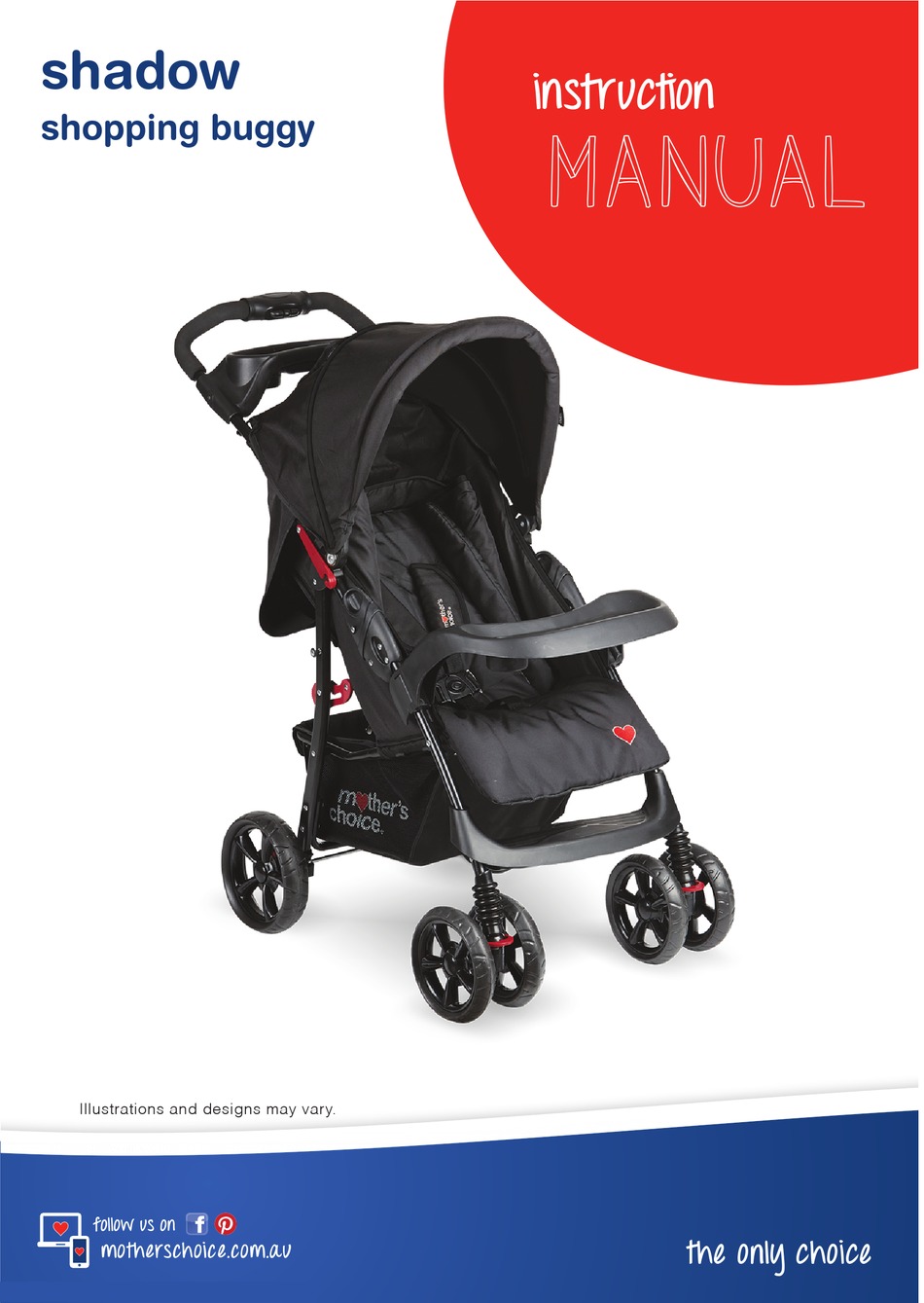

- Page 1 Illustrations and designs may vary. follow us on the only choice motherschoice.com.au...
-
Page 2: Table Of Contents
assembling the stroller Components list ........4 Opening stroller ........5 Lowering footrest ......... 5 contents Fitting rear axle ........6 Rear wheel assembly ......6 Installing front wheels ......7 Front swivel locks ........ 7 Attaching child tray / Parent tray ..8 using the stroller Operating brakes ........ - Page 3 IF YOU ADJUST THE STROLLER, OTHERWISE THEY MAY BE INJURED. • A harness can form loops that may be a strangulation hazard, never leave harness straps connected when not fitted to a child in the stroller. • Remove the child from the stroller before going up or down stairs or escalators. • Use the tether strap to prevent the stroller rolling away. • Do not allow children to stand on the seat or footrest. • Do not attempt to lift the stroller by the bumper bar. • Remove the child from the stroller before going up or down stairs or escalators. • Engage front wheel swivel locks when travelling on rough or uneven surfaces. • Regularly inspect the stroller for any parts that are loose, broken, torn or missing. Attend to the problem as soon as it is noticed. • Use only those accessories which are supplied by Dorel Australia and approved for use with this stroller. • Do not use the stroller near an open fire, barbecue or exposed flame. • This product is not intended for commercial use. • Do not run or jog with this stroller. • The Shadow shopping buggy has been approved in accordance with AS/ NZS 2088:2013. • The weight of the child using this stroller should not be more than 17kg. • Shopping basket maximum weight 4kg, Canopy pocket 0.5kg, Parent tray 0.5kg, and Child tray 1kg.
-
Page 4: Components List
A Folding lock H Large shopping basket L Swivel wheel locks (x2) I Brakes (x2) B Handle M Footrest J Rear wheel assembly C Parent tray N Removable seat liner i) Hub cap (x2) D Tether strap... -
Page 5: Opening Stroller
Step 1: opening stroller • If the stroller has a security tie, please remove it. • Release the storage latch (Figure 1a). • Lift the handle upwards away from the rear legs lift (Figure 1b). -
Page 6: Fitting Rear Axle
Step 3: installing rear wheels • Insert the axle assembly into the rear stroller legs and push up until it snaps into place (Figure 3). insert mother’s choice tip... Ensure red brake levers face towards the rear of stroller. -
Page 7: Installing Front Wheels
Step 5: installing front wheels insert • Ensure that the arrow (Figure 5a) points upward. • Also ensure that the red swivel lock is positioned correctly, with the lock facing in a forward direction (as per Figure 5c). -
Page 8: Attaching Child Tray / Parent Tray
Step 6: attaching child tray • Align both sides of the child tray with the frame, push clamp just below the folding joints. down • Push clamps down on both sides to lock (Figure 6a). -
Page 9: Using The Stroller
Operating brakes • To apply the brake, press down firmly on both brake pedals using the ball of your foot (Figure 8a). press down to unlock • Ensure both sides are engaged. • To release the brake, lift both brake pedals until the brakes have fully disengaged (Figure 8b). -
Page 10: Folding Stroller
• Apply all brakes. • Unlock the swivel wheels. • Fold the canopy back. • Adjust the seat backrest to full layback position. • Press and pull folding lock on the back of the handle (Figure 9a) while pushing in secondary lock on the front of the handle (Figure 9b). -
Page 11: Unfolding Stroller
• Release the storage latch (Figure 10a). • Lift handle until stroller is fully open and locking mechanism engaged (Figure 10b). • Push down on the handle to check that the locks have been fully engaged. -
Page 12: Carrying Stroller
• Fold the stroller, and ensure that storage latch is applied before continuing. • Carry stroller by holding frame between the storage latch and the red folding lever (Figure 11). -
Page 13: Adjusting Backrest
Operating the backrest recline lever lowered • Recline the backrest by simultaneously adjusting both red levers into one of three positions, as demonstrated in Figures 12a - 12d. CAUTION Do not adjust the seat back position with the child in the stroller. -
Page 14: Harness Adjustment Buckle
WARNING harness adjustment buckle Use this harness at all times. • The harness strap can be adjusted by A five-point harness is moving each strap’s slider ( ) (Figure 13a). provided to secure your child. • The buckle is released by pressing the When not in use disconnect centre button (Figure 13b). -
Page 15: Adjusting Harness Height
• The harness can be set at two heights, as displayed in Figure 14a and 14b. • To use the lower slot, undo the buckle and feed the shoulder straps in through the loop (Figure 14c) before securing harness. -
Page 16: Tether Strap
• Whenever a child is in the stroller and brakes are NOT engaged, the large loop should be around your wrist (Figure 15). WARNING Use this strap to stop the stroller rolling away. -
Page 17: Care And Maintenance
• Always store in a clean and dry place. • Clean the frame by wiping with a damp cloth. • Do not use abrasives, bleach or strong detergents. • Spot clean fabrics with warm water and mild soap. -
Page 18: Notes
notes:... -
Page 19: Product Registration
mother’s choice tip... follow us on motherschoice.com.au Visit us online to register your new Mother’s Choice product. www.motherschoice.com.au/product-registration benefits of registration • Your safety - allows us to contact you with important product notifications. • Confirmation of ownership - provides a record in case of product loss or theft. • Improved product development - helps us continue to design products that meet your needs. to prevent loss or fading, please attach your receipt here:... -
Page 20: Customer Service
motherschoice.com.au DOREL AUSTRALIA PTY LTD 655-685 Somerville Road Sunshine West Victoria 3020 Email: customerservice@dorel.com.au Phone: 1300 809 526 Hours: 8:30 am - 5:00 pm Monday to Friday IGC DOREL NEW ZEALAND LTD 14 Sir William Avenue East Tamaki Auckland 2013 Email: customerservice@igc.co.nz Phone: 0800 628 000 (toll free) Hours: 8:00 am - 5:00 pm Monday to Friday...
